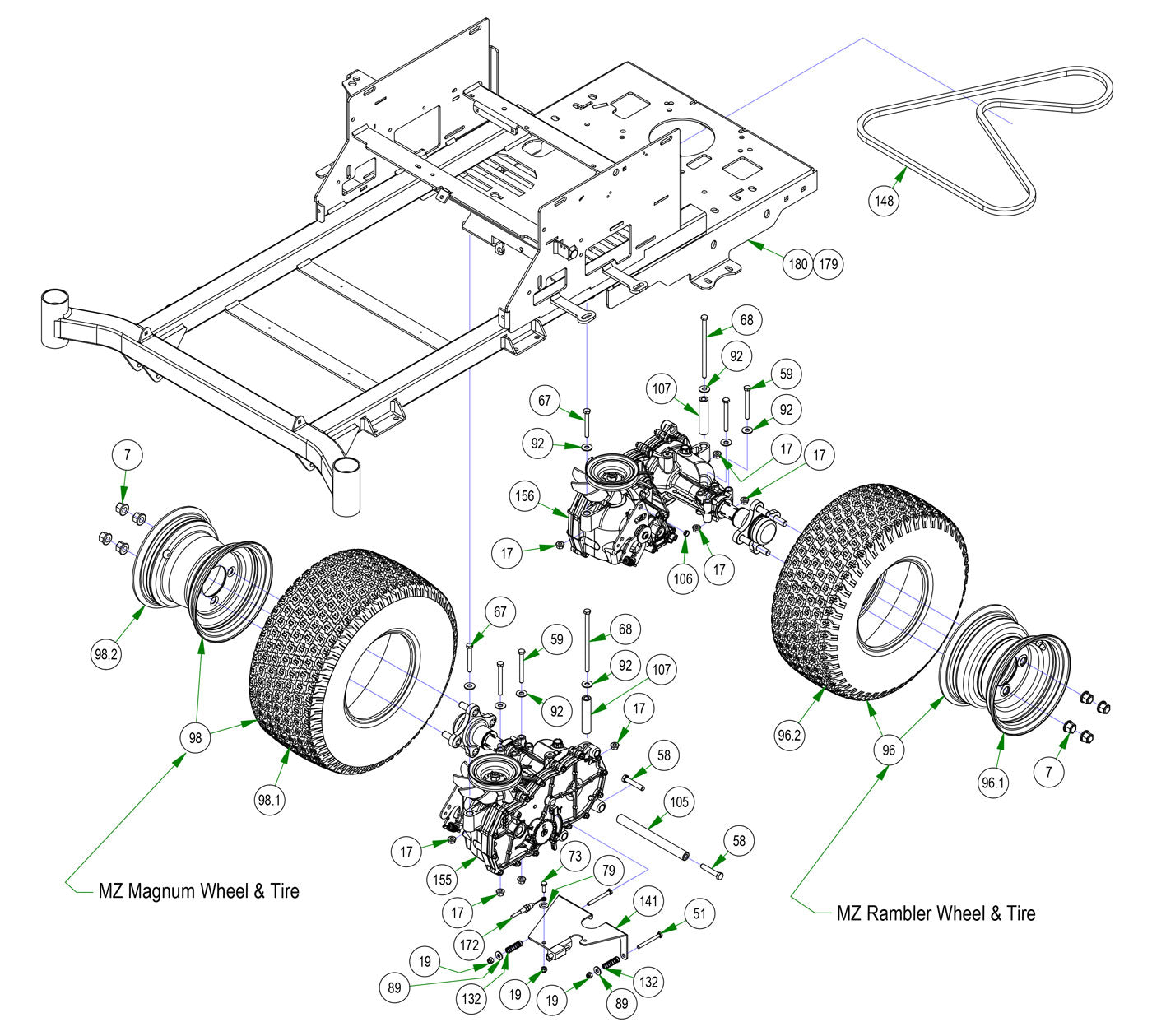

Transaxle
Parts Index
- 7 Acorn Lug Nut (Qty 8)
- 17 5/16-18 Nylon Flange Nut (Qty 8)
- 19 1/4-20 Nylon Insert Locknut Zi (Qty 3)
- 51 ¼-20 x 2-1/2 Gr2 Hex C/S Zinc (Qty 2)
- 58 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 2)
- 59 5/16-18 X 3 GR 5 Hex Bolt Zinc (Qty 4)
- 67 5/16 x 2 1/2 Bolt (Qty 2)
- 68 5/16-18 X 6 GR 5 Hex Bolt Zinc (Qty 2)
- 73 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 1)
- 79 .390x.750x.062 Nylon Washer (Qty 1)
- 89 1/4 USS Flat Washer Zinc (Qty 2)
- 92 5/16 USS Flat Washer Zinc (Qty 8)
- 96 18x8.50-8 w/8" Tire & Wheel (Black) (Qty 2)
- 96.1 Rim for 022-2050-22 / 022-2050-25 (Qty 1)
- 96.2 Tire for 022-2050-22 (Qty 1)
- 98 18x9.50-8 Tire and Wheel - Black Wheel (Qty 2)
- 98.1 18x9.50-8 Rear Tire Only 48 MZ (Qty 1)
- 98.2 Black Rear Wheel 48in MZ (Qty 1)
- 105 2017 Transaxle Spacer-MZ (Qty 1)
- 106 Drive Arm Transaxle Spacer (Qty 2)
- 107 2017 Transaxle Spacer (Qty 2)
- 132 Spring-Brake Lock Bracket MZ (Qty 2)
- 141 2017 MZ/Magnum brake plate assembly (Qty 1)
- 148 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 155 Magnum RH Transaxle (Qty 1)
- 156 Magnum LH Transaxle (Qty 1)
- 172 2017 MZ Brake Cable- 18.37" CABLE ONLY (Qty 1)
-
7#013-3000-00
Acorn Lug Nut
Qty Used: 8Regular price $2.99 USDRegular priceUnit price per
-
17#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
19#013-8073-00
1/4-20 Nylon Insert Locknut Zi
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
51#018-1076-00
¼-20 x 2-1/2 Gr2 Hex C/S Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
58#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
59#018-4701-00
5/16-18 X 3 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
67#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
68#018-5355-00
5/16-18 X 6 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $2.19 USDRegular priceUnit price per
-
73#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
79#019-2003-00
.390x.750x.062 Nylon Washer
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
89#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
92#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
96#022-2050-22
18x8.50-8 w/8" Tire & Wheel (Black)
Qty Used: 2Regular price $199.99 USDRegular priceUnit price per
-
96.1#022-2051-22
Rim for 022-2050-22
Qty Used: 1Regular price $89.99 USDRegular priceUnit price per
-
96.2#022-2052-22
Tire for 022-2050-22
Qty Used: 1Regular price $159.99 USDRegular priceUnit price per
-
98#022-8050-22
18x9.50-8 Tire and Wheel - Black Wheel
Qty Used: 2Regular price $153.98 USDRegular priceUnit price per
-
98.1#022-8025-00
18x9.50-8 Rear Tire Only 48 MZ
Qty Used: 1Regular price $159.99 USDRegular priceUnit price per
-
98.2#022-8026-22
Black Rear Wheel 48in MZ
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
105#025-0016-00
2017 Transaxle Spacer-MZ
Qty Used: 1Regular price $13.12 USDRegular priceUnit price per
-
106#025-0036-00
Drive Arm Transaxle Spacer
Qty Used: 2Regular price $4.99 USDRegular priceUnit price per
-
107#025-0070-00
2017 Transaxle Spacer
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
132#034-3050-00
Spring-Brake Lock Bracket MZ
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
141#039-0035-01
2017 MZ/Magnum brake plate assembly
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
148#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
155#050-4070-00
2017 EZT - Right - MZ Models
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
156#050-4071-00
2017 EZT - Left - MZ Models
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
172#064-8057-17
2017 MZ Brake Cable- 18.37" CABLE ONLY
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
