Kohler KS590

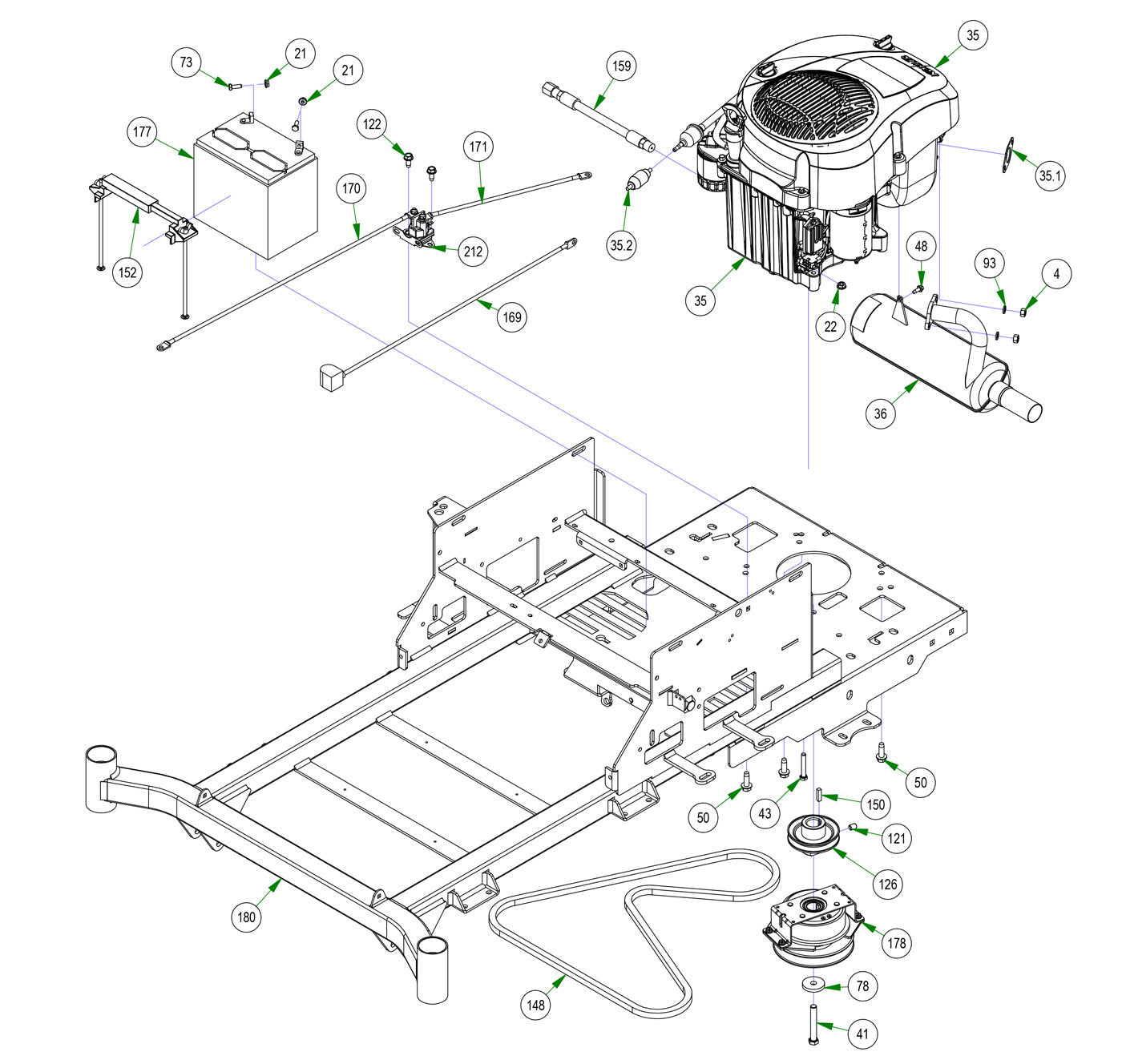

Parts Index
- 4 M8 - 1.25 Stainless Steel Nut (Qty 2)
- 21 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 22 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 35 2018 541cc Kohler 5400 Series Engine 19hp MZ (Qty 1)
- 35.1 Exhaust Gasket for 015-0077-00 (Qty 1)
- 35.2 Universal Inline Fuel Filter (Qty 1)
- 36 Exhaust for 015-0077-00 (Qty 1)
- 41 7/16-20x3” Hex Bolt GR 8 W/ Patch (Qty 1)
- 43 5/16-18 X 2 HEX C/S (GR.5) ZC (Qty 1)
- 48 M6-1.0 X 16MM IND. HWH TRI LOB TFS Zinc (Qty 1)
- 50 3/8 x 1 1/8 Engine Mounting Bolt (Qty 3)
- 73 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 78 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC (Qty 1)
- 93 5/16 Lock washer Zinc (Qty 2)
- 121 3/8-16x1/2 Socket Set Cup Point (Qty 1)
- 122 5/16 x 3/4 Hex Washer Type F (Qty 2)
- 126 3 3/4 Motor Pulley-2009 MZ (Qty 1)
- 148 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 150 1/4 x 1 Square Key (Qty 1)
- 152 Battery Hold Down (Plastic) (Qty 1)
- 159 Kohler Oil Drain Hose (Qty 1)
- 169 24 inch Black Cable - MZ/ZT (Qty 1)
- 170 24 Red Battery Cable (Qty 1)
- 171 14" Red Battery Cable (Qty 1)
- 177 Battery - All models except Renegade and Revolt (Qty 1)
- 178 Clutch For 1" Shaft (Qty 1)
- 212 Solenoid (752-1251-210HP) (Qty 1)
-
4#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
21#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
22#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
35#015-0077-00
2018 541cc Kohler 5400 Series Engine 19hp MZ
Qty Used: 1Regular price $1,592.29 USDRegular priceUnit price per
-
35.1#015-0077-01
Exhaust Gasket for 015-0077-00
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
35.2#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
36#015-0077-02
Exhaust for 015-0077-00
Qty Used: 1Regular price $175.14 USDRegular priceUnit price per
-
41#018-0007-21
7/16-20x3” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
43#018-0012-00
5/16-18 X 2 HEX C/S (GR.5) ZC
Qty Used: 1Regular price $2.19 USDRegular priceUnit price per
-
48#018-0101-00
M6-1.0 X 16MM IND. HWH TRI LOB TFS Zinc
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
50#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 3Regular price $1.39 USDRegular priceUnit price per
-
73#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
78#019-0010-00
7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
Qty Used: 1Regular price $5.39 USDRegular priceUnit price per
-
93#019-8051-00
5/16 Lock washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
121#030-6029-00
3/8-16x1/2 Socket Set Cup Point
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
122#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
126#033-2010-00
3 3/4 Motor Pulley-2009 MZ
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
148#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
150#042-6030-00
1/4 x 1 Square Key
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
152#043-8929-00
Battery Hold Down (Plastic)
Qty Used: 1Regular price $16.35 USDRegular priceUnit price per
-
159#051-5401-00
Kohler Oil Drain Hose
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
169#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
170#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
171#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
177#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
178#070-0055-00
Clutch For 1\" Shaft
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
212#108-0001-00
Solenoid (752-1251-210HP)
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
