Kawasaki FR651V

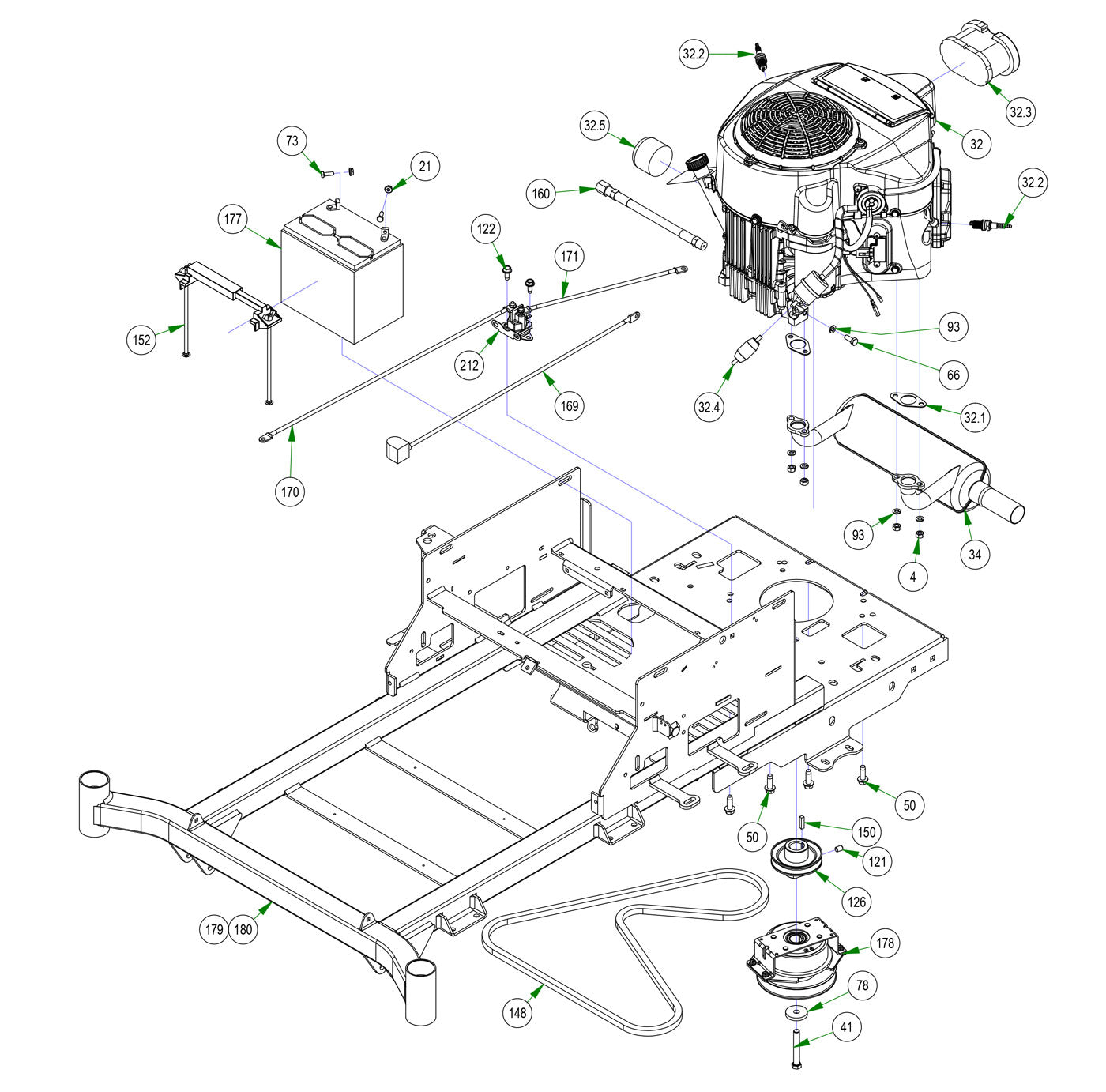

Parts Index
- 4 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 21 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 32 726cc Kawasaki Engine-FR651V (Qty 1)
- 32.1 Exhaust Gasket for 015-0077-00 (Qty 2)
- 32.2 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 32.3 22-26 Kaw Air Filter FR / FS (Qty 1)
- 32.4 Universal Inline Fuel Filter (Qty 1)
- 32.5 Kawasaki Oil Filter (Qty 1)
- 34 2017 Kawasaki Exhaust MZ, AVEN, ZT, MAV, HD (Qty 1)
- 41 7/16-20x3” Hex Bolt GR 8 W/ Patch (Qty 1)
- 50 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 66 M8 x 1.25 x 20MM Hex Head Bolt (Qty 1)
- 73 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 78 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC (Qty 1)
- 93 5/16 Lock washer Zinc (Qty 5)
- 121 3/8-16x1/2 Socket Set Cup Point (Qty 1)
- 122 5/16 x 3/4 Hex Washer Type F (Qty 2)
- 126 3 3/4 Motor Pulley-2009 MZ (Qty 1)
- 148 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 150 1/4 x 1 Square Key (Qty 1)
- 152 Battery Hold Down (Plastic) (Qty 1)
- 160 Kawasaki Oil Drain (Qty 1)
- 169 24 inch Black Cable - MZ/ZT (Qty 1)
- 170 24 Red Battery Cable (Qty 1)
- 171 14" Red Battery Cable (Qty 1)
- 177 Battery - All models except Renegade and Revolt (Qty 1)
- 178 Clutch For 1" Shaft (Qty 1)
- 212 Solenoid (752-1251-210HP) (Qty 1)
-
4#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
21#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
32#015-0022-00
726cc Kawasaki Engine-FR651V
Qty Used: 1Regular price $1,989.06 USDRegular priceUnit price per
-
32.1#015-0077-01
Exhaust Gasket for 015-0077-00
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
32.2#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
32.3#063-2097-00
22-26 Kaw Air Filter FR / FS
Qty Used: 1Regular price $23.99 USDRegular priceUnit price per
-
32.4#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
32.5#063-8017-00
Kawasaki Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
34#015-0052-00
2017 Kawasaki Exhaust MZ/ZT/Mav/Comp
Qty Used: 1Regular price $217.48 USDRegular priceUnit price per
-
41#018-0007-21
7/16-20x3” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
50#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
66#018-5321-00
M8 x 1.25 x 20MM Hex Head Bolt
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
73#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
78#019-0010-00
7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
Qty Used: 1Regular price $5.39 USDRegular priceUnit price per
-
93#019-8051-00
5/16 Lock washer Zinc
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
121#030-6029-00
3/8-16x1/2 Socket Set Cup Point
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
122#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
126#033-2010-00
3 3/4 Motor Pulley-2009 MZ
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
148#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
150#042-6030-00
1/4 x 1 Square Key
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
152#043-8929-00
Battery Hold Down (Plastic)
Qty Used: 1Regular price $16.35 USDRegular priceUnit price per
-
160#051-5404-00
Kawasaki Oil Drain
Qty Used: 1Regular price $26.27 USDRegular priceUnit price per
-
169#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
170#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
171#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
177#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
178#070-0055-00
Clutch For 1\" Shaft
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
212#108-0001-00
Solenoid (752-1251-210HP)
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
