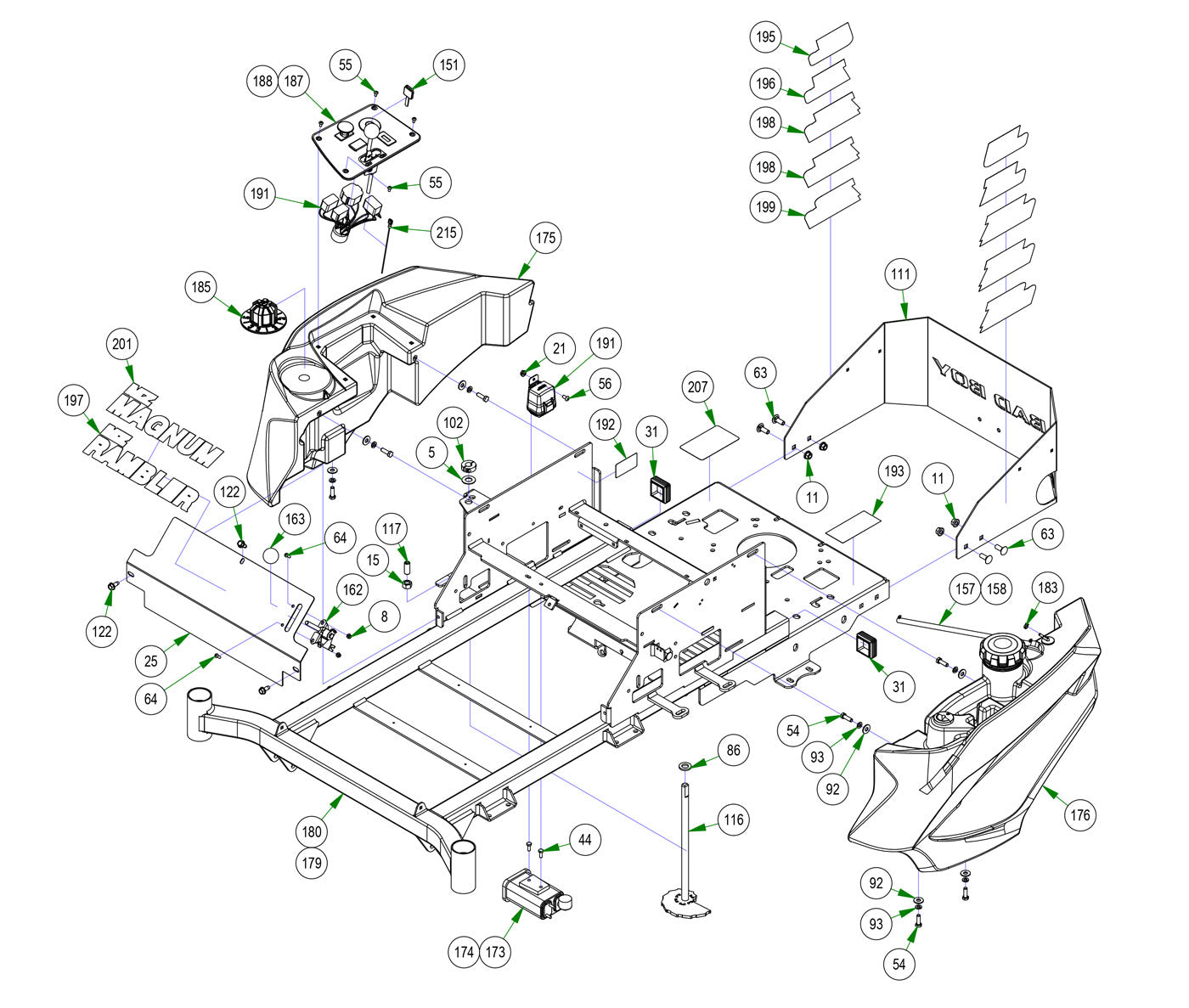

Fuel Tank & Rear Cover
Parts Index
- 5 .630 ID x 1.130 OD x .062 THK F/W Nylon Black (Qty 1)
- 8 10-24 Nylon Insert Locknut Zin (Qty 2)
- 11 3/8 Nylock Flange Nut (Qty 4)
- 15 1/2-13 Hex Nuts Zinc (Qty 1)
- 21 1/4-20 Hex Flange Nuts Zinc w/ (Qty 1)
- 25 2022 MZ Cooler Cover (Qty 1)
- 31 Frame Plug 2x2 (Qty 2)
- 44 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 54 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 7)
- 55 10-32 X 3/8 BS C/S 18-8 SS with Patch (Qty 4)
- 56 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 1)
- 63 3/8 x 1 Carriage Bolt (Qty 4)
- 64 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 86 .630 ID X 1.122 OD X .142 THK (Qty 1)
- 92 5/16 USS Flat Washer Zinc (Qty 7)
- 93 5/16 Lock washer Zinc (Qty 7)
- 102 Split Collar (Qty 1)
- 111 2022 MZ Rear Plate--Orange (Qty 1)
- 116 2017 MZ Magnum Deck Height Rod Assembly (Qty 1)
- 117 Deck Height Cam Plunger (Qty 1)
- 122 5/16 x 3/4 Hex Washer Type F (Qty 3)
- 151 Ignition Key (Qty 1)
- 157 15" Fuel Line (Qty 1)
- 158 2014 ZT Fuel Line Assembly-37" (Qty 1)
- 162 Universal Throttle Head - 2012 (Qty 1)
- 163 Throttle / Brake Head Ball (Qty 1)
- 173 MZ Briggs/CXI EPA Cannister Assy (Qty 1)
- 174 MZ/Revolt Kawasaki EPA Cannister Assy (Qty 1)
- 175 2017 Magnum Right Side Console (Qty 1)
- 176 2017 Magnum Left Side Fuel Tank (Qty 1)
- 183 MZ Tank Hose Clamp 1/4 Vinyl (Qty 1)
- 185 Deck Height Dial (Qty 1)
- 187 2017 MZ Control Panel Assembly (Qty 1)
- 188 ZT/MAV Control Panel Assy (Qty 1)
- 191 2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
- 192 ANSI Decal BMZ54KT740 (Qty 1)
- 195 2018 MZ 541cc Back Plate Cluster (Qty 1)
- 196 2018 MZ 725cc Back Plate Cluster (Qty 1)
- 197 2022 Rambler front decal (Qty 1)
- 198 2018 Magnum 725cc Back Plate Cluster (Qty 2)
- 199 2018 Magnum 726cc Back Plate Cluster (Qty 1)
- 201 2017 Magnum Cooler Cover Decal (Qty 1)
- 207 Pump Belt Route Decal-Pump Pla (Qty 1)
- 215 2017 MZ/ZT/MAV/HD/Revolt Tach Wire Assy (Qty 1)
-
5#013-0080-00
.630 ID x 1.130 OD x .062 THK F/W Nylon Black
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
8#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
11#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
15#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
21#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-

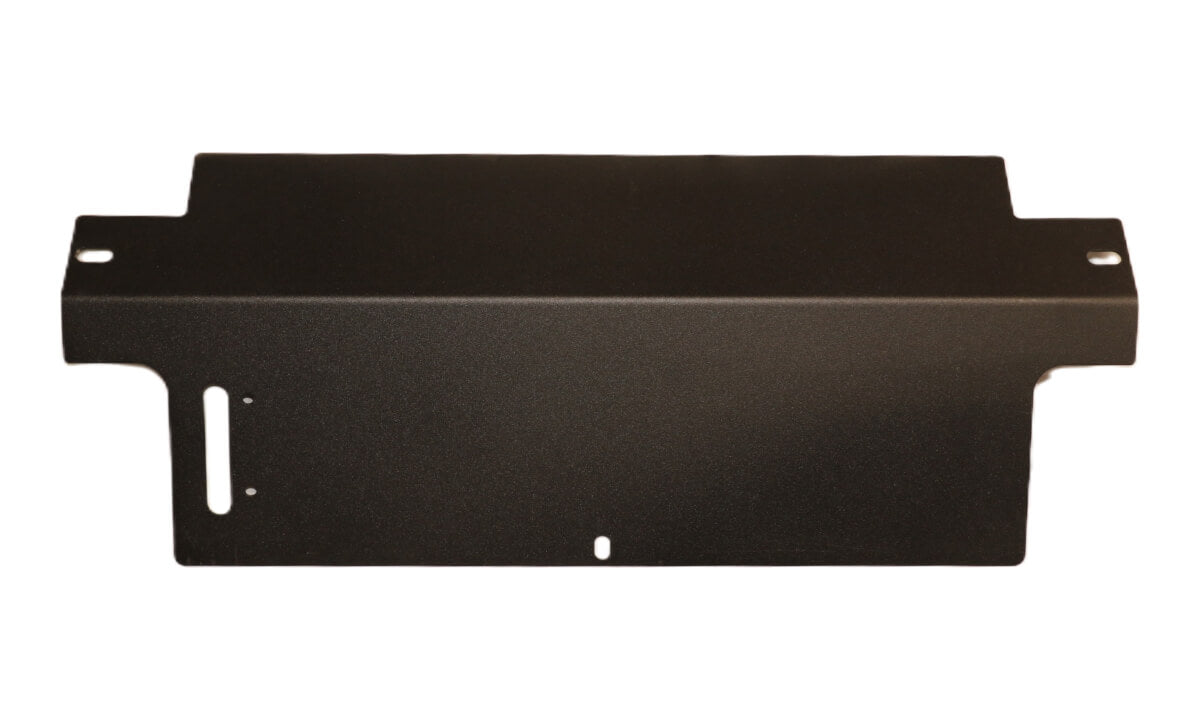

25#014-3317-22
2022 MZ Cooler Cover
Qty Used: 1Regular price $71.50 USDRegular priceUnit price per
-
31#014-9000-00
Frame Plug 2x2
Qty Used: 2Regular price $2.48 USDRegular priceUnit price per
-
44#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
54#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 7Regular price $0.00 USDRegular priceUnit price per
-
55#018-2010-00
10-32 X 3/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
56#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
63#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
64#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
86#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
92#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
93#019-8051-00
5/16 Lock washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
102#025-0002-00
Split Collar
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
111#026-0223-00
2022 MZ Rear Plate--Orange
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
116#028-0007-17
2017 MZ Magnum Deck Height Rod Assembly
Qty Used: 1Regular price $24.95 USDRegular priceUnit price per
-
117#028-0008-00
Deck Height Cam Plunger
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
122#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 3Regular price $0.89 USDRegular priceUnit price per
-
151#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
157#051-0001-00
15" Fuel Line
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
158#051-2014-00
2014 ZT Fuel Line Assembly-37"
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
162#055-2012-00
Universal Throttle Head - 2012
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
163#055-2013-00
Throttle Head Ball
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
No sequence found for SKU:
MZ Briggs/CXI EPA Cannister Assy
Regular price $0.00 USDRegular priceUnit price per
-
174#067-0015-02
MZ Kohler/Kawasaki EPA Cannister Assy
Qty Used: 1Regular price $53.01 USDRegular priceUnit price per
-
175#067-2080-50
2017 Magnum Right Side Console
Qty Used: 1Regular price $218.93 USDRegular priceUnit price per
-
176#067-2090-50
2017 Magnum Left Side Fuel Tank
Qty Used: 1Regular price $238.83 USDRegular priceUnit price per
-
183#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 1Regular price $1.45 USDRegular priceUnit price per
-
185#077-9000-00
Deck Height Dial
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
187#079-3460-02
2017 MZ Control Panel Assembly
Qty Used: 1Regular price $99.00 USDRegular priceUnit price per
-
188#079-3460-19
ZT/MAV Control Panel Assy
Qty Used: 1Regular price $144.63 USDRegular priceUnit price per
-
191#086-3050-19
2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-
192#091-0009-00
ANSI Decal BMZ54KT740
Qty Used: 1Regular price $2.19 USDRegular priceUnit price per
-
195#091-0301-18
2018 MZ 541cc Back Plate Cluster
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-
196#091-0302-18
2018 MZ 725cc Back Plate Cluster
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-
197#091-0313-22
2022 Rambler front decal
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
198#091-0318-18
2018 Magnum 725cc Back Plate Cluster
Qty Used: 2Regular price $13.99 USDRegular priceUnit price per
-
199#091-0319-18
2018 Magnum 726cc Back Plate Cluster
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-
201#091-0391-00
2017 Magnum Cooler Cover Decal
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-
207#091-3017-00
Pump Belt Route Decal-Pump Pla
Qty Used: 1Regular price $4.47 USDRegular priceUnit price per
-
215#216-1000-17
2017 MZ/ZT/MAV Tach Wire Assy
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
