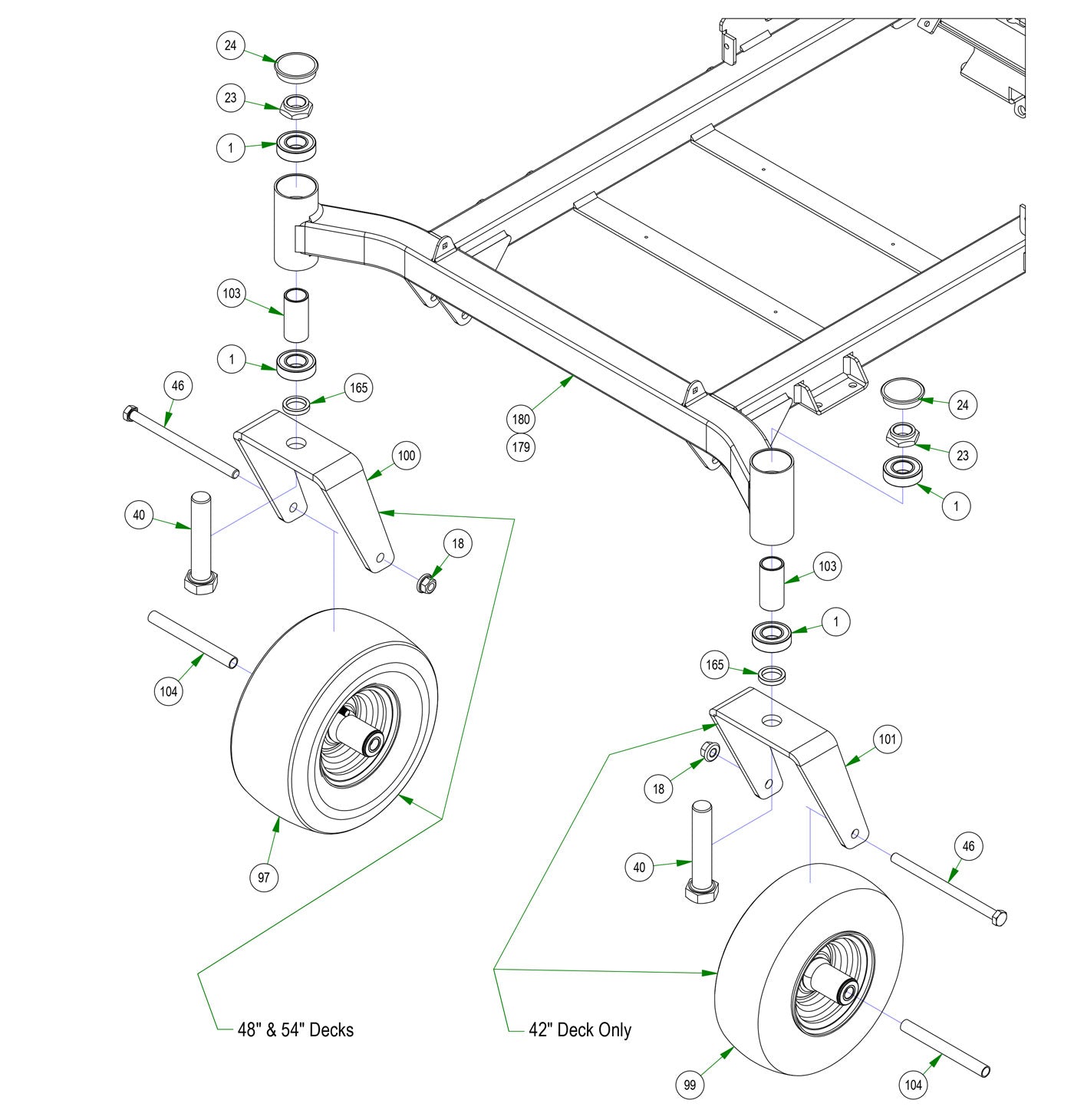

Front Fork
Parts Index
- 1 Caster Bearing (Qty 4)
- 18 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 23 1" Nylock Nut 1/2 Nut - Fine (Qty 2)
- 24 Bearing Retainer Cap (Qty 2)
- 40 1-14 X 5 BOLT GR 8 ZC YELLOW (Qty 2)
- 46 1/2-13 x 7 1/2 Grade 5 Hex Bolt (Qty 2)
- 97 11x6.00-5 Front Assembly - Black Wheel (Qty 2)
- 99 11 x 4.00 - 5 Front Tire Assembly( Black) (Qty 2)
- 100 Magnum Front Fork (Qty 2)
- 101 MZ 8mm Front Fork (Qty 2)
- 103 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 104 Front Wheel Spanner - MZ (Qty 2)
- 165 Spacer ( Front Fork and Suspension ) (Qty 2)
-
1#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
18#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
23#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
24#014-2025-00
Bearing Retainer Cap
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
40#018-0005-00
1-14 X 5 BOLT GR 8 ZC YELLOW
Qty Used: 2Regular price $5.89 USDRegular priceUnit price per
-
46#018-0035-00
1/2-13 x 7 1/2 Grade 5 Hex Bolt
Qty Used: 2Regular price $4.39 USDRegular priceUnit price per
-
97#022-8049-22
11x6.00-5 Front Assembly - Black Wheel
Qty Used: 2Regular price $92.89 USDRegular priceUnit price per
-
99#022-8051-22
11 x 4.00 - 5 Front Tire Assembly( Black)
Qty Used: 2Regular price $53.90 USDRegular priceUnit price per
-
100#023-0002-00
Magnum Front Fork
Qty Used: 2Regular price $29.19 USDRegular priceUnit price per
-
101#023-0005-00
MZ 8mm Front Fork
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-
103#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
-
104#025-0008-00

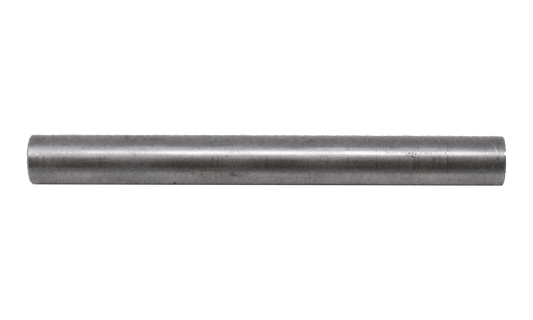

Front Wheel Spanner - MZ
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
165#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
