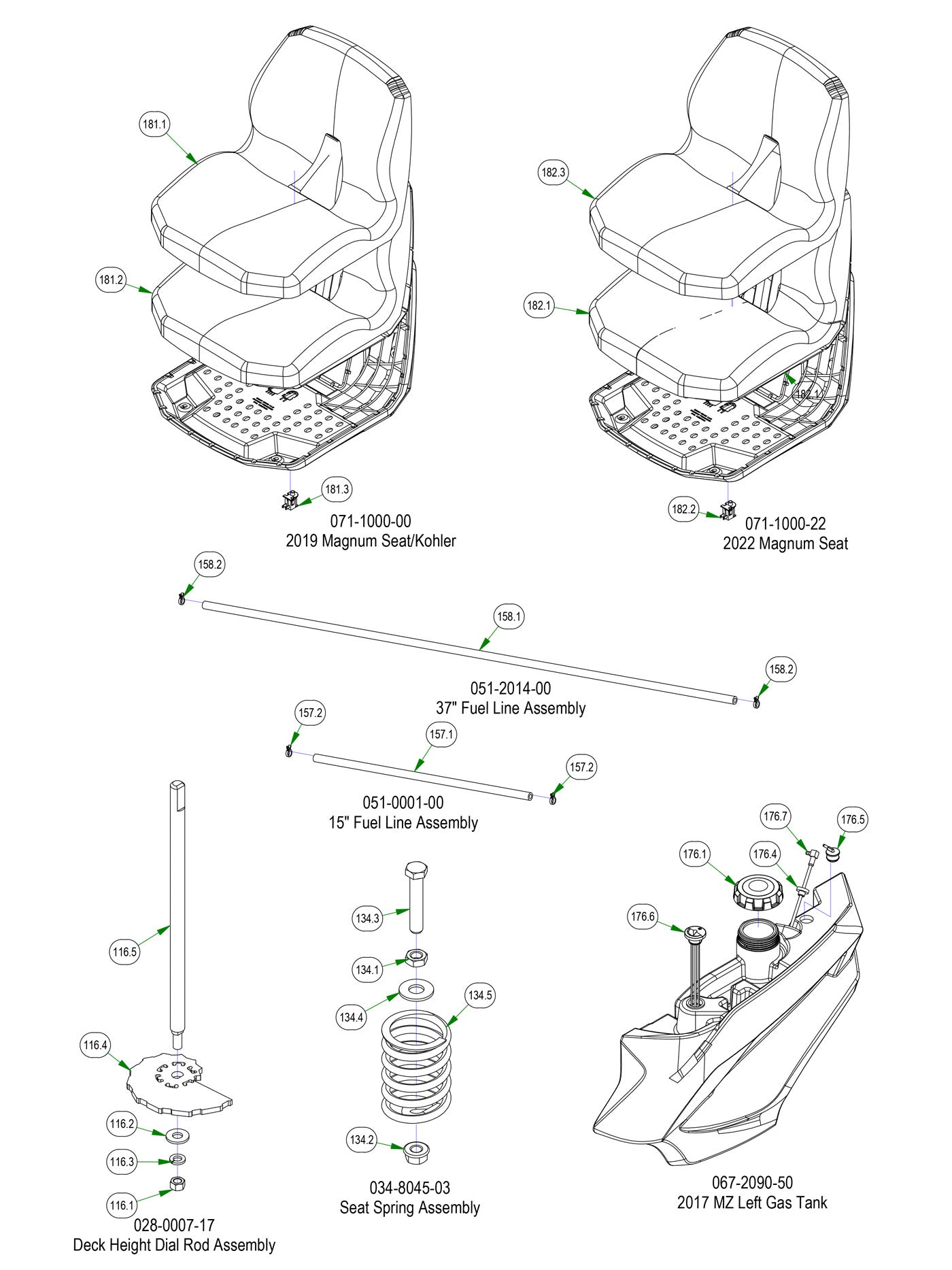

Frame Sub Assemblies - Seat, Fuel Line, etc
Parts Index
- 116 2017 MZ Magnum Deck Height Rod Assembly (Qty 1)
- 116.1 3/8-24 Hex Nut Zinc (Qty 1)
- 116.2 3/8 USS Flat Washer Zinc (Qty 1)
- 116.3 3/8 Lockwasher Zinc (Qty 1)
- 116.4 Deck Height Cam Plate (Qty 1)
- 116.5 2017 Deck Height Dial Rod MZ (Qty 1)
- 134 2017 MZ/ZT Seat Spring Assembly (Qty 2)
- 134.1 3/8-16 Half Jam Nut (Qty 1)
- 134.2 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 134.3 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 134.4 3/8 USS Flat Washer Zinc (Qty 1)
- 134.5 Seat Spring (Qty 1)
- 157 15" Fuel Line (Qty 1)
- 157.1 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 157.2 1/4 Fuel Line Clamp (Qty 2)
- 158 2014 ZT Fuel Line Assembly-37" (Qty 1)
- 158.1 33" 1/4 Fuel Line No Clamp (Qty 1)
- 158.2 1/4 Fuel Line Clamp (Qty 2)
- 176 2017 Magnum Left Side Fuel Tank (Qty 1)
- 176.1 3.5" Tethered Fuel Cap (Qty 1)
- 176.4 Grommet for ZT Elite Fuel Line (Qty 1)
- 176.5 Rollover Valve and Grommet New (Qty 1)
- 176.6 Fuel Gauge w/ Grommet (Qty 1)
- 176.7 Fuel Line Pickup Tube for ZT (Qty 1)
- 181 2019 Rambler Seat/Kohler (Qty 1)
- 181.1 Seat Cover for 071-1000-00 (Qty 1)
- 181.2 Seat Foam for 071-1000-00 (Qty 1)
- 181.3 OBSOLETE USE 071-5065-07 (Qty 1)
- 182 2022 Magnum Seat (Qty 1)
- 182.2 OBSOLETE USE 071-5065-07 (Qty 1)
- 182.3 Bad Boy SK120 Cover with Logo for 071-1000-22 (Qty 1)
-
116#028-0007-17
2017 MZ Magnum Deck Height Rod Assembly
Qty Used: 1Regular price $24.95 USDRegular priceUnit price per
-
116.1#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
116.2134.4#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
116.3#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
116.4#026-1100-00
Deck Height Cam Plate
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
116.5#028-0007-00
2017 Deck Height Dial Rod MZ
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
134#034-8045-03
2017 MZ/ZT Seat Spring Assembly
Qty Used: 2Regular price $29.99 USDRegular priceUnit price per
-
134.1#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
134.2#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
134.3#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
134.5#034-8045-00
Seat Spring
Qty Used: 1Regular price $19.15 USDRegular priceUnit price per
-
157#051-0001-00
15" Fuel Line
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
157.1#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
157.2158.2#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
158#051-2014-00
2014 ZT Fuel Line Assembly-37"
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
158.1#051-2014-01
33" 1/4 Fuel Line No Clamp
Qty Used: 1Regular price $17.99 USDRegular priceUnit price per
-
176#067-2090-50
2017 Magnum Left Side Fuel Tank
Qty Used: 1Regular price $238.83 USDRegular priceUnit price per
-
176.1#066-8083-00
3.5" Tethered Fuel Cap
Qty Used: 1Regular price $19.84 USDRegular priceUnit price per
-
176.4#067-6080-00
Grommet for ZT Elite Fuel Line
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
176.5#067-6070-00
Rollover Valve and Grommet New
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
176.6#067-4090-00
Fuel Gauge w/ Grommet
Qty Used: 1Regular price $42.99 USDRegular priceUnit price per
-
176.7#067-0011-00
Fuel Line Pickup Tube for ZT
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
181#071-1000-00
2019 Rambler Seat/Kohler
Qty Used: 1Regular price $399.99 USDRegular priceUnit price per
-
181.1#071-1001-00
Seat Cover for 071-1000-00
Qty Used: 1Regular price $119.41 USDRegular priceUnit price per
-
181.2#071-1002-00
Seat Foam for 071-1000-00
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
181.3182.2#071-1004-00
OBSOLETE USE 071-5065-07
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
182#071-1000-22
2022 Magnum Seat
Qty Used: 1Regular price $399.99 USDRegular priceUnit price per
-
182.3#071-1005-00
Bad Boy SK120 Cover with Logo for 071-1000-22
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
