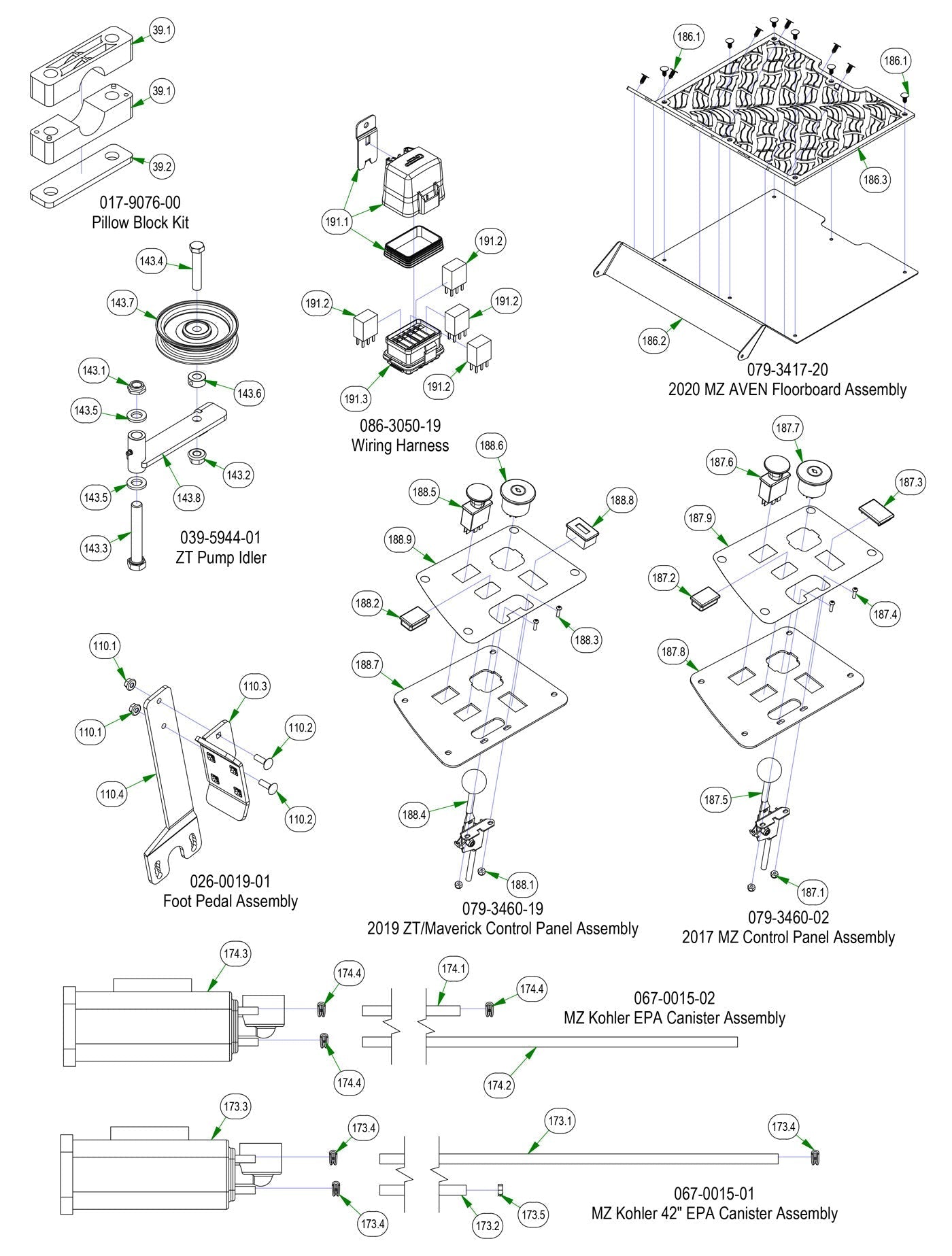

Frame Sub Assemblies - Control Panel, Floorboard, etc
Parts Index
- 39 Pillow Block (Qty 4)
- 39.1 2017 Magnum Pillow Block-Male (Qty 2)
- 39.2 2017 Magnum Pillow Block-Metal Plate (Qty 1)
- 110 2017 MZ Foot Pedal Assembly (Qty 1)
- 110.1 5/16-18 Nylon Flange Nut (Qty 2)
- 110.2 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 110.3 Foot Pedal--Orange (Qty 1)
- 110.4 2017 MZ/ZT Deck Pedal Lever--Orange (Qty 1)
- 143 Pump Idler Bracket Assembly-ZT, MZ, Aven, Raider (Qty 1)
- 143.1 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 143.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 143.3 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 143.4 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 143.5 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 143.6 1/2 Set Collar w/set collar (Qty 1)
- 143.7 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 173 MZ Briggs/CXI EPA Cannister Assy (Qty 1)
- 173.1 3/16 Vinyl 53" EPA Line (Qty 1)
- 173.2 3/16 Clear 44" EPA Line (Qty 1)
- 173.3 Carbon Canister for Magnum/MZ (Qty 1)
- 173.4 5.5 mm Vinyl Hose Clamp (Qty 3)
- 173.5 3/16" Vinyl Hose Clamp (Qty 1)
- 174 44" x 3/16" black hose (Qty 1)
- 174.1 44" x 3/16" black hose (Qty 1)
- 174.2 52" x 3/16" clear hose (Qty 1)
- 174.3 Carbon Canister for Magnum/MZ (Qty 1)
- 174.4 5.5 mm Vinyl Hose Clamp (Qty 3)
- 186.1 Ratchet Fastener - Floorboard (Qty 12)
- 186.2 2017 MZ/ZT Floorboard--Orange (Qty 1)
- 186.3 2021 Maverick Floor Mat W/ Reaper Tread (Qty 1)
- 187 2017 MZ Control Panel Assembly (Qty 1)
- 187.1 10-24 Nylon Insert Locknut Zin (Qty 2)
- 187.2 Light Plug (Qty 1)
- 187.4 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 187.5 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 187.6 PTO Engager-Switch for Blades (Qty 1)
- 187.7 Ignition Switch (Qty 1)
- 187.8 2014 MZ/ZT Control Panel--Orange (Qty 1)
- 187.9 2022 control panel decal (Qty 1)
- 188 ZT/MAV Control Panel Assy (Qty 1)
- 188.1 10-24 Nylon Insert Locknut Zin (Qty 2)
- 188.2 Light Plug (Qty 1)
- 188.3 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 188.4 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 188.5 PTO Engager-Switch for Blades (Qty 1)
- 188.6 Ignition Switch (Qty 1)
- 188.7 2014 MZ/ZT Control Panel--Orange (Qty 1)
- 188.8 Tachometer-N310-0100-1018 (Qty 1)
- 188.9 2022 control panel decal (Qty 1)
- 191 2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
- 191.1 2019 Relay Cap Kit (Qty 1)
- 191.2 2019 Relay Terminal (Qty 4)
- 191.3 OBSOLETE USE 086-3050-17 (Qty 1)
-
39#017-9076-00
Pillow Block
Qty Used: 4Regular price $21.88 USDRegular priceUnit price per
-
39.1#017-9077-00
2017 Magnum Pillow Block-Male
Qty Used: 2Regular price $19.89 USDRegular priceUnit price per
-
39.2#017-9079-00
2017 Magnum Pillow Block-Metal Plate
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
110#026-0019-01
2017 MZ Foot Pedal Assembly
Qty Used: 1Regular price $87.56 USDRegular priceUnit price per
-
110.1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
110.2#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
110.3#026-0019-00
Foot Pedal--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
110.4#031-0500-00
2017 MZ/ZT Deck Pedal Lever--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
143#039-5944-01
Pump Idler Bracket Assembly-ZT/MZ/Compact Outlaw
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
143.1#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
143.2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
143.3#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
143.4#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
143.5#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
143.6#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
143.7#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
No sequence found for SKU:
MZ Briggs/CXI EPA Cannister Assy
Regular price $0.00 USDRegular priceUnit price per
-
173.1#051-2023-01
3/16 Vinyl 53" EPA Line
Qty Used: 1Regular price $8.79 USDRegular priceUnit price per
-
173.2#051-2027-01
3/16 Clear 44" EPA Line
Qty Used: 1Regular price $6.59 USDRegular priceUnit price per
-
173.3174.3#067-0015-00
Carbon Canister for Magnum/MZ
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
173.4174.4#072-0002-00
5.5 mm Vinyl Hose Clamp
Qty Used: 3Regular price $2.19 USDRegular priceUnit price per
-
173.5#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
174174.1#051-2023-02
44" x 3/16" black hose
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
174.2#051-2027-02
52" x 3/16" clear hose
Qty Used: 1Regular price $6.59 USDRegular priceUnit price per
-
186.1#040-6080-00
Ratchet Fastener - Floorboard
Qty Used: 12Regular price $2.91 USDRegular priceUnit price per
-
186.2#079-3417-00
2017 MZ/ZT Floorboard--Orange
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
186.3#081-4001-00
2021 Maverick Floor Mat W/ Reaper Tread
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
187#079-3460-02
2017 MZ Control Panel Assembly
Qty Used: 1Regular price $99.00 USDRegular priceUnit price per
-
187.1188.1#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
187.2188.2#018-1040-00
Light Plug
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
187.4188.3#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
187.5188.4#055-8020-00
ZT/Mav/MZ/Comp Outlaw Throttle-53\"
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
187.6188.5#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
187.7188.6#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-

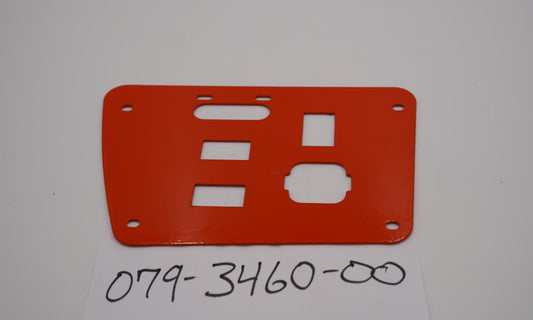

187.8188.7#079-3460-00
2014 MZ/ZT Control Panel--Orange
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
187.9188.9#091-0338-22
2022 control panel decal
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
188#079-3460-19
ZT/MAV Control Panel Assy
Qty Used: 1Regular price $144.63 USDRegular priceUnit price per
-
188.8#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
191#086-3050-19
2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-
191.1#086-1202-01
2019 Relay Cap Kit
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
191.2#086-1202-19
2019 Relay Terminal
Qty Used: 4Regular price $23.34 USDRegular priceUnit price per
-
191.3#086-3050-00
OBSOLETE USE 086-3050-17
Qty Used: 1Regular price $249.00 USDRegular priceUnit price per
