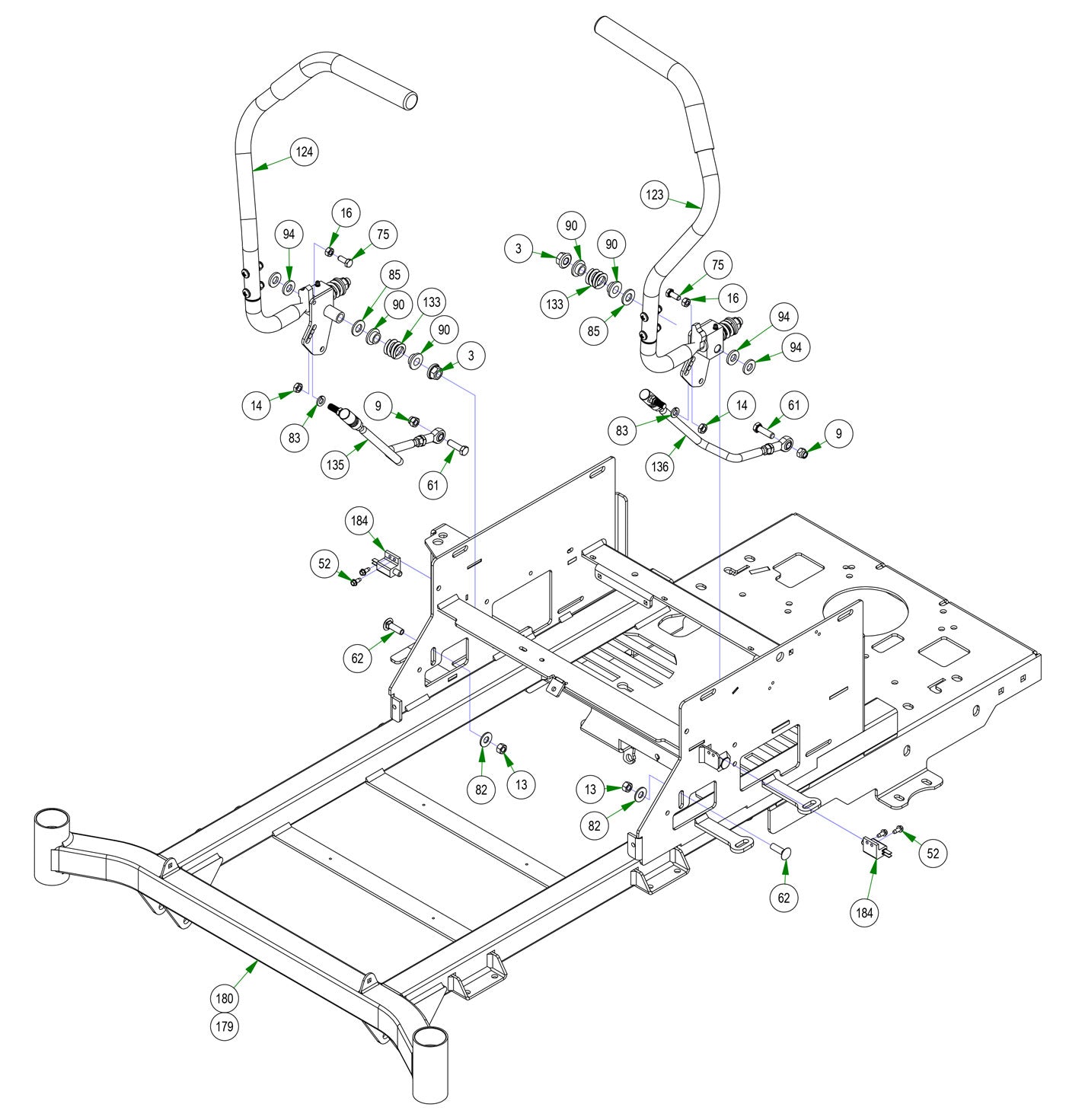

Drive Arms
Parts Index
- 3 1/2-13 Mechanical Lock Nut Grade F (Qty 2)
- 9 3/8-16 Nylon Insert Locknut Zi (Qty 2)
- 13 3/8-16 Hex Nuts Zinc (Qty 2)
- 14 3/8-24 Hex Nut Zinc (Qty 2)
- 16 5/16-18 Hex Nuts Zinc (Qty 2)
- 52 12-24 x 1/2 HWH Bolt (Qty 4)
- 61 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 62 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 75 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 2)
- 82 3/8 USS Flat Washer Zinc (Qty 2)
- 83 3/8 Lockwasher Zinc (Qty 2)
- 85 1/2 SAE Flat Washer GR 8 (Qty 2)
- 90 .515 ID Plastic Shoulder Washer (Qty 4)
- 94 .505 ID X 1 OD X .128 THK Washer (Qty 4)
- 123 2017 MZ Magnum LH Steering Arm (Qty 1)
- 124 2017 MZ Magnum RH Steering Arm (Qty 1)
- 133 Drive Lever Housing Spring (Qty 2)
- 135 Push Rod RH (Assembly) (Qty 1)
- 136 Push Rod LH (Assembly) (Qty 1)
- 184 Safety Switch (Qty 2)
-
3#013-0010-00
1/2-13 Mechanical Lock Nut Grade F
Qty Used: 2Regular price $1.00 USDRegular priceUnit price per
-
9#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
13#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
14#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
16#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
52#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
61#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
62#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
75#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
82#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
83#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
85#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 2Regular price $0.75 USDRegular priceUnit price per
-
90#019-8027-00
.515 ID Plastic Shoulder Washer
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
94#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
123#031-0017-02
2017 MZ Magnum LH Steering Arm
Qty Used: 1Regular price $144.59 USDRegular priceUnit price per
-
124#031-0018-02
2017 MZ Magnum RH Steering Arm
Qty Used: 1Regular price $144.59 USDRegular priceUnit price per
-
133#034-8025-00
Drive Lever Housing Spring
Qty Used: 2Regular price $3.70 USDRegular priceUnit price per
-
135#035-5450-00
Push Rod RH (Assembly)
Qty Used: 1Regular price $31.73 USDRegular priceUnit price per
-
136#035-5451-00
Push Rod LH (Assembly)
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
184#077-8073-00
Safety Switch
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
