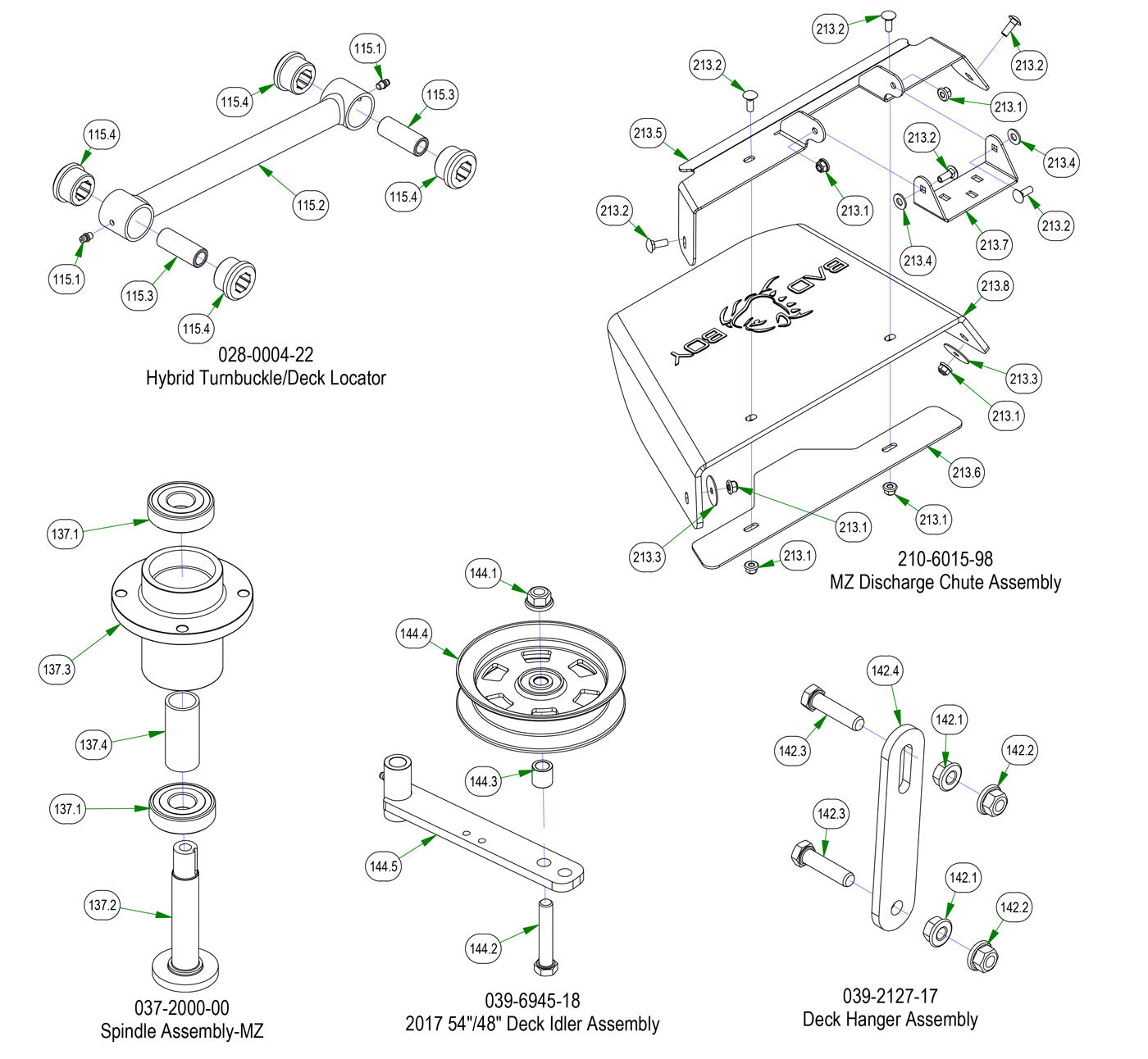

Deck Sub Assemblies
Parts Index
- 115 Hybrid Turnbuckle (Qty 2)
- 115.1 1/4-28 Threaded Grease Fitting (Qty 2)
- 115.3 2018 Maverick Topllink Bushing Sleeve (Qty 2)
- 115.4 2018 Maverick Topllink Bushing (Qty 4)
- 137 Spindle Assembly-Magnum Models (Qty 3)
- 137.1 MZ Spindle Bearing (Qty 2)
- 137.2 mz spindle shaft (Qty 1)
- 137.3 MZ Spindle Housing (Qty 1)
- 137.4 MZ Spindle Spacer-Component (Qty 1)
- 142 MZ/ZT Deck Hanger Assembly (Qty 4)
- 142.1 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 142.2 3/8 Nylock Flange Nut (Qty 2)
- 142.3 3/8 x 1 1/2 Bolt (Qty 2)
- 142.4 Deck hanger for 039-2127-17 (Qty 1)
- 144 2017 54"/48" Deck Idler Assembly (Qty 1)
- 144.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 144.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 144.3 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 144.4 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 144.5 Idler Bracket (Qty 1)
- 213 MZ Discharge Chute Assembly (Qty 1)
- 213.1 5/16-18 Nylon Flange Nut (Qty 6)
- 213.2 5/16 x 7/8 Carriage Bolt (Qty 6)
- 213.3 5/16" Fender Washer (Qty 2)
- 213.4 .360 ID Plastic Washer (Qty 2)
- 213.5 Discharge Chute Bracket 48 MZ (Qty 1)
- 213.6 OBSOLETE USE 039-4890-00 (Qty 1)
- 213.7 Chute Hanger 48 MZ (Qty 1)
- 213.8 2017 MZ Discharge Chute Rubber (Qty 1)
-
115#028-0004-22
Hybrid Turnbuckle/Deck Locator
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
115.1#024-0001-00
1/4-28 Threaded Grease Fitting
Qty Used: 2Regular price $0.50 USDRegular priceUnit price per
-
115.3#048-6004-00
2018 Maverick Topllink Bushing Sleeve
Qty Used: 2Regular price $10.55 USDRegular priceUnit price per
-
115.4#048-6005-00
2018 Maverick Topllink Bushing
Qty Used: 4Regular price $29.99 USDRegular priceUnit price per
-
137#037-2000-00
Spindle Assembly-Magnum Models
Qty Used: 3Regular price $204.33 USDRegular priceUnit price per
-
137.1#037-6024-00
MZ Spindle Bearing
Qty Used: 2Regular price $32.10 USDRegular priceUnit price per
-
137.2#037-6025-00

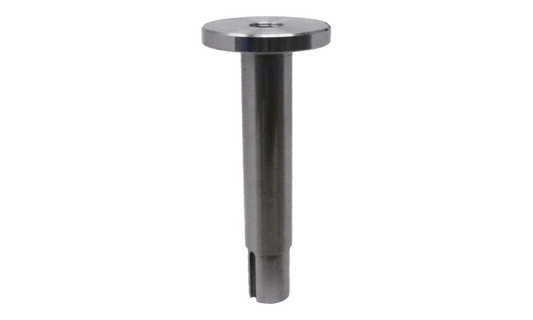

mz spindle shaft
Qty Used: 1Regular price $56.99 USDRegular priceUnit price per
-
137.3#037-6027-00
MZ Spindle Housing
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
137.4#037-6028-00
MZ Spindle Spacer-Component
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
142#039-2127-17
MZ/ZT Deck Hanger Assembly
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
142.1#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
142.2#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
142.3#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
142.4#039-2127-00
OBSOLETE USE 039-2127-17
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
144#039-6945-18
2017 54"/48" Deck Idler Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
144.1#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
144.2#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
144.3#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
144.4#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
144.5#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
213#210-6015-98
MZ Discharge Chute Assembly
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
213.1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
213.2#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 6Regular price $1.49 USDRegular priceUnit price per
-
213.3#019-0002-00
5/16" Fender Washer
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
213.4#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
213.5#039-4891-00
Discharge Chute Bracket 48 MZ
Qty Used: 1Regular price $33.11 USDRegular priceUnit price per
-
213.6#039-4892-00
OBSOLETE USE 039-4890-00
Qty Used: 1Regular price $33.11 USDRegular priceUnit price per
-
213.7#206-6020-00
Chute Hanger 48 MZ
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
213.8#210-6014-00
2017 MZ Discharge Chute Rubber
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
