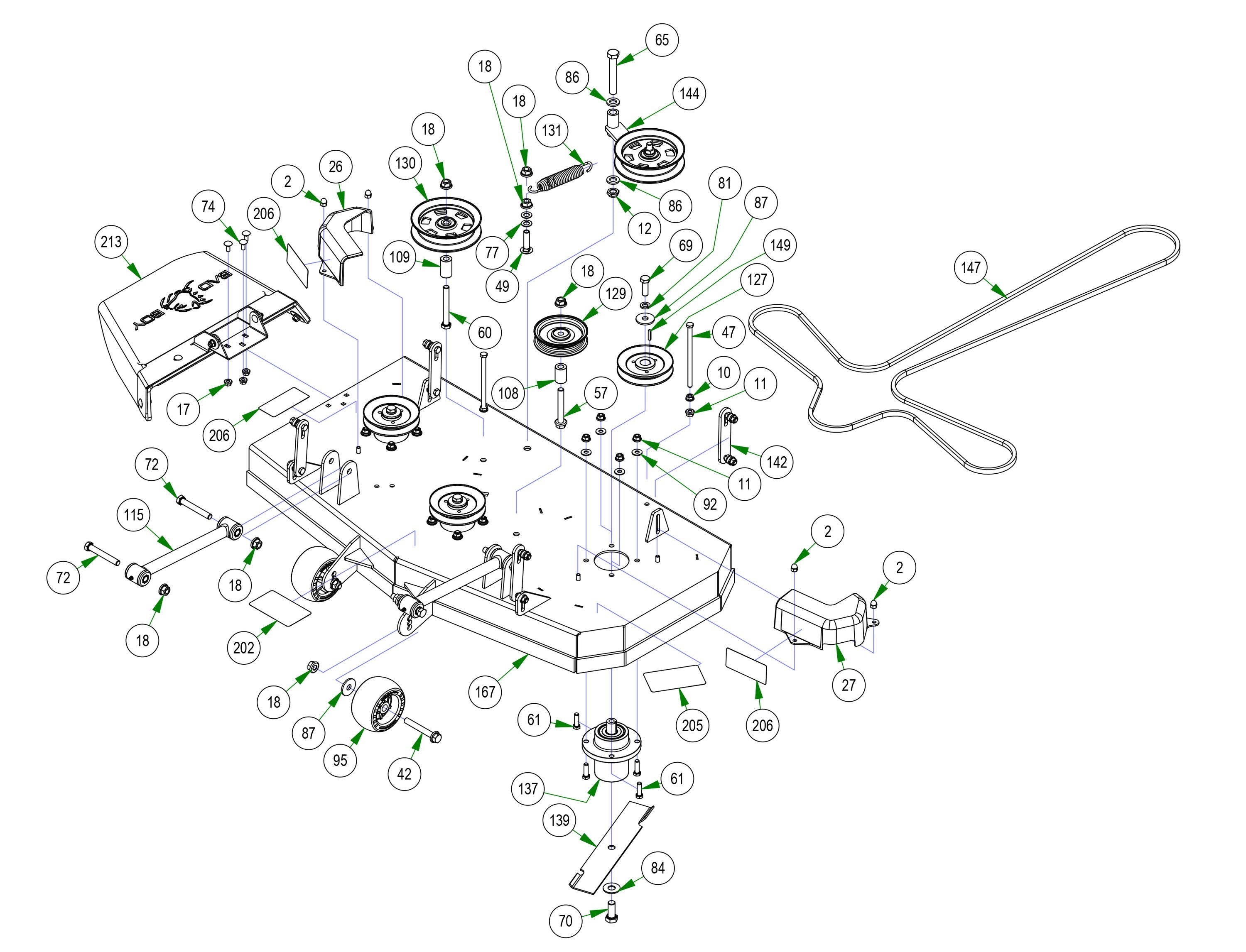

42" Deck Assembly
Parts Index
- 2 Acorn Nut-Pulley Cover (Qty 4)
- 10 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 11 3/8 Nylock Flange Nut (Qty 14)
- 12 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 17 5/16-18 Nylon Flange Nut (Qty 3)
- 18 1/2-13 Nylon Insert Flange Nut (Qty 10)
- 26 Pulley Cover RH 42"/48" (Qty 1)
- 27 Pulley Cover LH 42"/48" (Qty 1)
- 42 Deck Wheel Bolt (Qty 2)
- 47 3/8-16 x 6.5 Hex Head GR.5 (Qty 2)
- 49 1/2 x 2 Carriage Bolt (Qty 1)
- 57 1/2 x 3 1/2 Flange Bolt - Gr 8 (Qty 1)
- 60 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 1)
- 61 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 12)
- 65 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 69 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 70 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
- 72 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 4)
- 74 5/16-18 X 3/4 Carriage ASTM B307 (~Gr 5) (Qty 3)
- 77 .517 Square Hole Round Washer (Qty 2)
- 81 1/2 Lockwasher Zinc (Qty 3)
- 84 5/8 Flat Washer (Qty 3)
- 86 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 87 1/2 Belleville Washer #K2000-G (Qty 5)
- 92 5/16 USS Flat Washer Zinc (Qty 12)
- 95 Deck Wheel (Qty 2)
- 108 .502 ID X 1.000 0D X 1.500 (Qty 1)
- 109 .502 ID X 1.00 OD X 1.750 (Qty 1)
- 115 Hybrid Turnbuckle (Qty 2)
- 127 Deck Pulley - 48" Magnum/MZ (Qty 3)
- 129 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 130 5 3/4 Idler Pulley-Capitol (Qty 1)
- 131 2015 Deck Idler Spring (Qty 1)
- 137 Spindle Assembly-Magnum Models (Qty 3)
- 139 42" High Lift Blade-MZ (Qty 3)
- 142 MZ/ZT Deck Hanger Assembly (Qty 4)
- 144 2017 54"/48" Deck Idler Assembly (Qty 1)
- 147 42" MZ Magnum/42"CZT Deck Belt (Qty 1)
- 149 3/16 X 1 Square Machine Key (Qty 3)
- 167 42" MZ Deck (Qty 1)
- 205 2018 42" MZ/Comp Out Deck Decal (Qty 1)
- 206 Danger Decal-Spindle/Discharge (Qty 3)
- 213 MZ Discharge Chute Assembly (Qty 1)
-
2#013-0004-00
Acorn Nut-Pulley Cover
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
10#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
11#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 14Regular price $1.49 USDRegular priceUnit price per
-
12#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
17#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
18#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 10Regular price $1.39 USDRegular priceUnit price per
-
26#014-4025-00
Pulley Cover RH
Qty Used: 1Regular price $16.69 USDRegular priceUnit price per
-
27#014-4026-00
Pulley Cover LH 42\"/48\"
Qty Used: 1Regular price $16.69 USDRegular priceUnit price per
-
42#018-0010-00
Deck Wheel Bolt - 2011 Outlaw
Qty Used: 2Regular price $5.89 USDRegular priceUnit price per
-
47#018-0073-00
3/8-16 x 6.5 Hex Head GR.5
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
49#018-1050-00
1/2 x 2 Carriage Bolt
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
57#018-2018-00
1/2 x 3 1/2 Flange Bolt - Gr 8
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
-
60#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
61#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
65#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
69#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
-
70#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 3Regular price $2.49 USDRegular priceUnit price per
-
72#018-6054-00
1/2-13 X 3-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
74#018-8062-00
5/16-18 X 3/4 Carriage ASTM B307 (~Gr 5)
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
77#019-0007-00
.517 Square Hole Round Washer
Qty Used: 2Regular price $1.09 USDRegular priceUnit price per
-
81#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
84#019-5038-00
5/8 Flat Washer
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
86#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
87#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 5Regular price $4.69 USDRegular priceUnit price per
-
92#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
95#022-1000-00
Deck Wheel
Qty Used: 2Regular price $15.99 USDRegular priceUnit price per
-
108#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
-
109#025-5339-00
.502 ID X 1.00 OD X 1.750
Qty Used: 1Regular price $4.87 USDRegular priceUnit price per
-
115#028-0004-22
Hybrid Turnbuckle/Deck Locator
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
127#033-4820-00
Deck Pulley - 48\" Magnum/MZ
Qty Used: 3Regular price $29.18 USDRegular priceUnit price per
-
129#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
130#033-7201-25
5 3/4 Idler Pulley-Capitol
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
131#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
137#037-2000-00
Spindle Assembly-Magnum Models
Qty Used: 3Regular price $204.33 USDRegular priceUnit price per
-
139#038-4221-00
42" High Lift Fusion Blade-MZ
Qty Used: 3Regular price $21.16 USDRegular priceUnit price per
-
142#039-2127-17
MZ/ZT Deck Hanger Assembly
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
144#039-6945-18
2017 54"/48" Deck Idler Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
147#041-4022-00
42" MZ Magnum/42"CZT Deck Belt
Qty Used: 1Regular price $72.91 USDRegular priceUnit price per
-
149#042-0010-00
3/16 X 1 Square Machine Key
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
167#060-2442-00
42" MZ Deck
Qty Used: 1Regular price $659.99 USDRegular priceUnit price per
-
205#091-1048-18
2018 42" MZ/Comp Out Deck Decal
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
206#091-3012-00
Danger Decal-Spindle/Discharge
Qty Used: 3Regular price $2.91 USDRegular priceUnit price per
-
213#210-6015-98
MZ Discharge Chute Assembly
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
