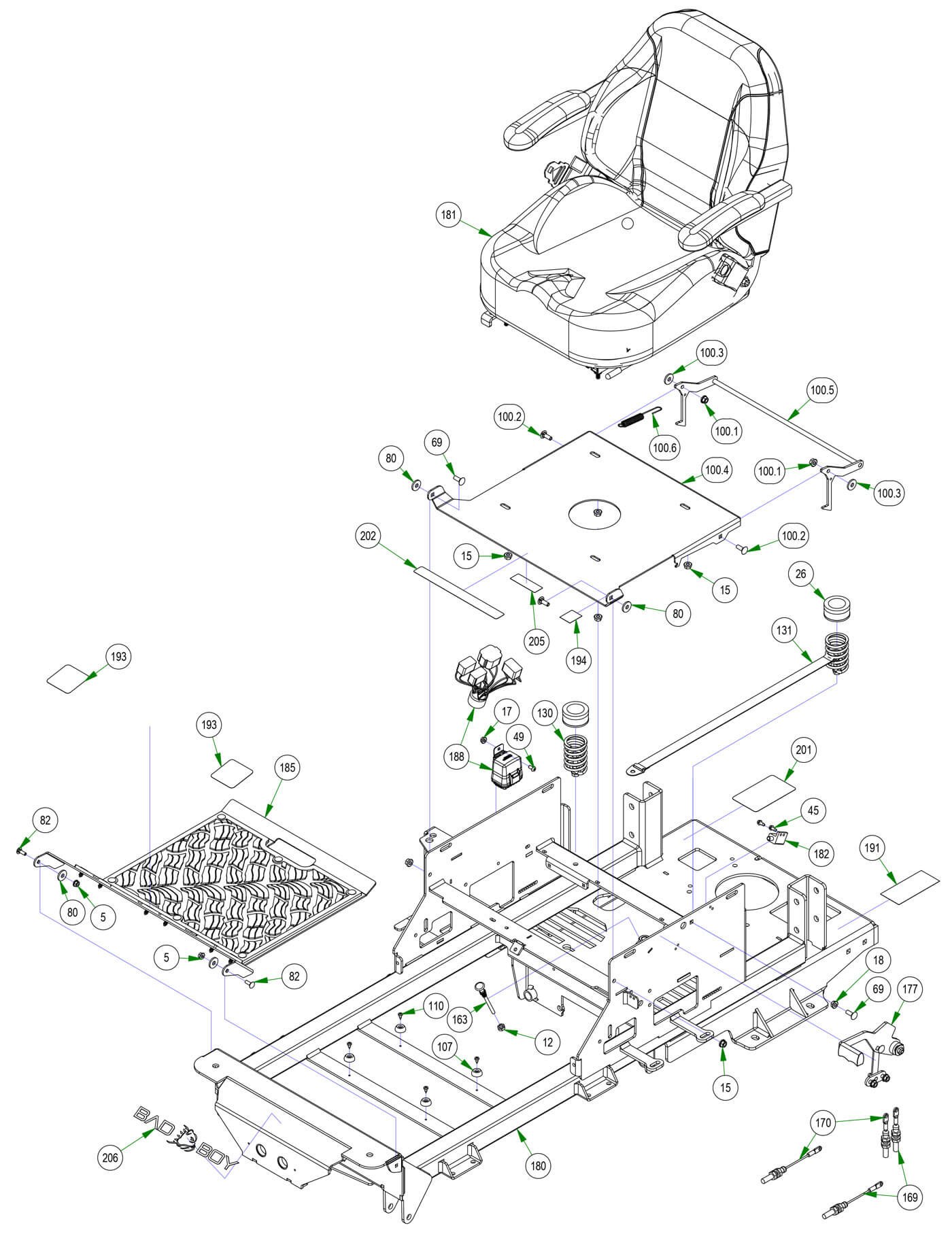

Upper Frame
Parts Index
- 5 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 12 3/8-24 Hex Nut Zinc (Qty 1)
- 15 5/16-18 Nylon Flange Nut (Qty 6)
- 17 1/4-20 Hex Flange Nuts Zinc w/ (Qty 1)
- 18 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 26 Seat Spring Cap Cover (Qty 2)
- 45 12-24 x 1/2 HWH Bolt (Qty 2)
- 49 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 1)
- 69 5/16 x 7/8 Carriage Bolt (Qty 3)
- 80 .360 ID Plastic Washer (Qty 4)
- 82 1/4 x 3/4 Carriage Bolt (Qty 2)
- 99 2022 Maverick Rear Cover Assembly (Qty 1)
- 100.1 5/16-18 Nylon Flange Nut (Qty 2)
- 100.2 5/16 x 7/8 Carriage Bolt (Qty 2)
- 100.3 .360 ID Plastic Washer (Qty 2)
- 100.4 Seat Plate 2016--Orange (Qty 1)
- 100.5 Seat Latch Rod (Qty 1)
- 100.6 Brake Spring (Qty 1)
- 107 Button Bumper (Qty 4)
- 110 10 X 1/2 Pan Phil a T/S Zinc (Qty 4)
- 130 2017 MZ/ZT Seat Spring Assembly (Qty 1)
- 131 2022 Mav/HD Seat Spring Assembly with Strap (Qty 1)
- 163 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 169 2021 Load Balanced Brake Cable 1 (Qty 1)
- 170 2021 Load Balanced Brake Cable 2 (Qty 1)
- 177 Brake Handle Assembly For HD Down (Qty 1)
- 181 2022 Maverick Seat (Qty 1)
- 182 Safety Switch (Qty 1)
- 185 2021 Maverick Floorboard Assembly (Qty 1)
- 188 2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
- 193 ZT, Mav, HD Steering Control Decals (Qty 1)
- 194 MZ, ZT, Aven, Mav, HD Brake Decal (Qty 1)
- 201 Maverick Pump Belt Decal (Qty 1)
- 202 Long Seat Plate Warning Decal (Qty 1)
- 205 NOT FOR SALE IN CALIFORNIA (Qty 1)
- 206 Flying Bulldog Front Bumper Decal (Qty 1)
-

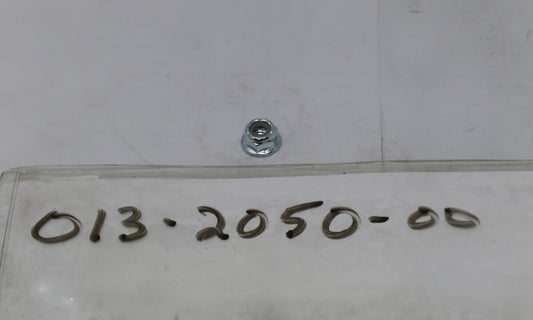

5#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
12#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
15100.1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-

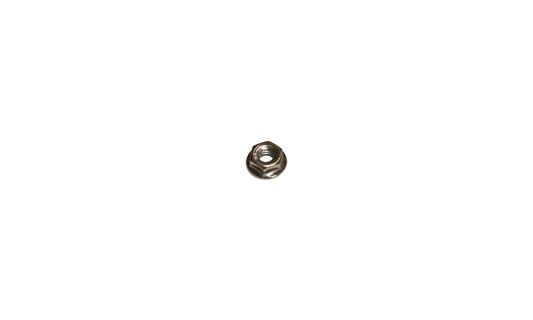

17#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
18#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-

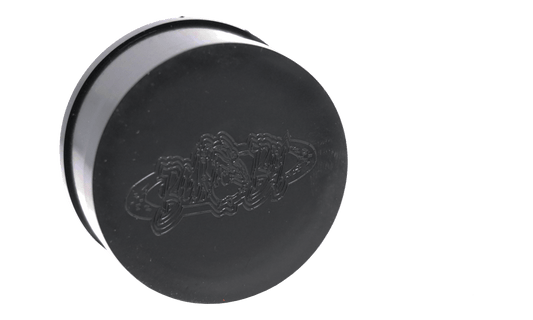

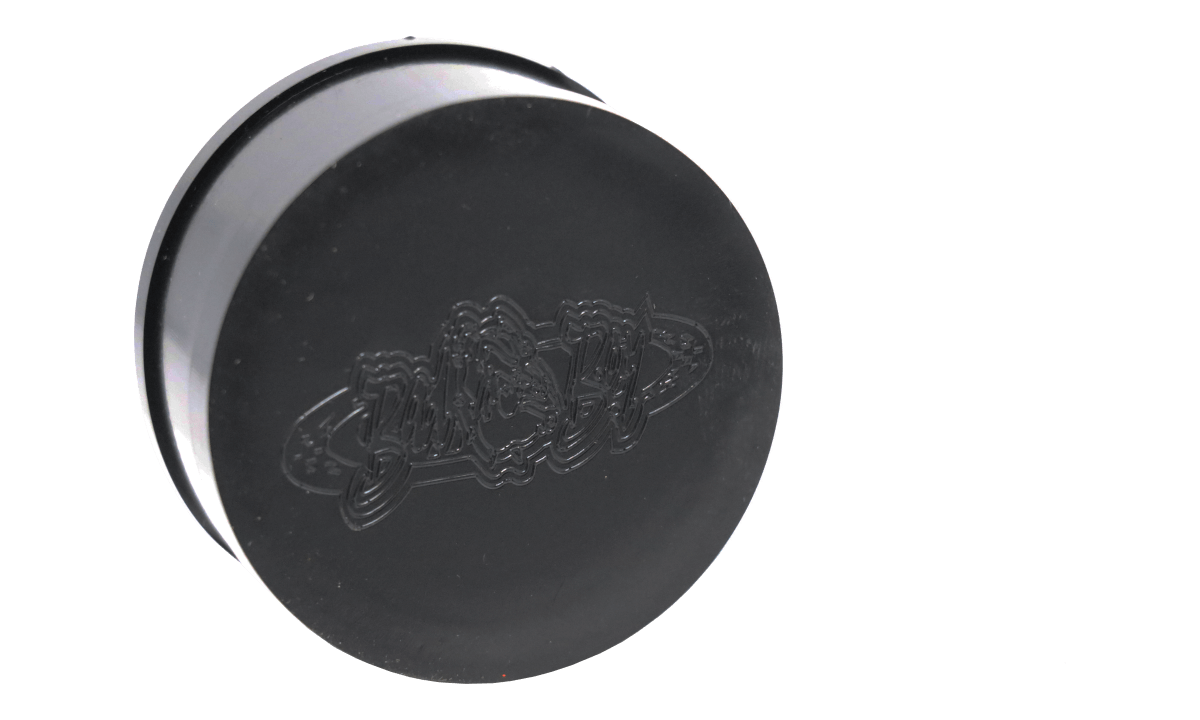

26#014-8047-00
Seat Spring Cap Cover
Qty Used: 2Regular price $8.12 USDRegular priceUnit price per
-
45#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
49#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
69100.2#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
80100.3#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
82#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
99#026-0205-22
2022 Maverick Rear Cover Assembly
Qty Used: 1Regular price $159.99 USDRegular priceUnit price per
-
100.4#026-1016-00
Seat Plate 2016--Orange
Qty Used: 1Regular price $102.11 USDRegular priceUnit price per
-
100.5#028-0090-00
Seat Latch Rod
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-

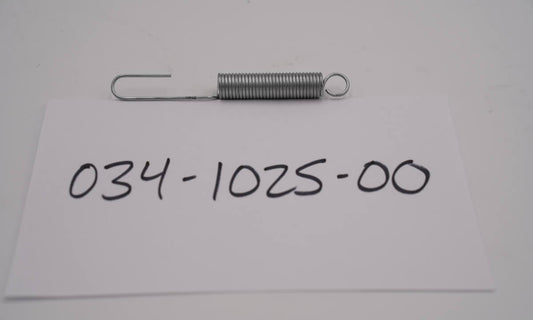

100.6#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-

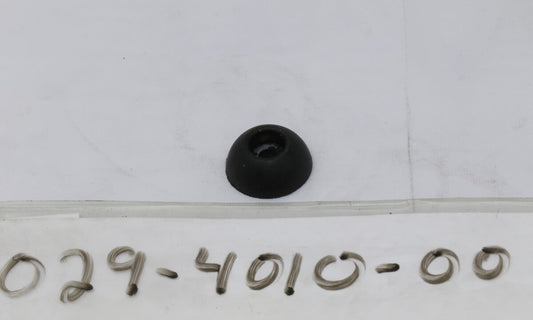

107#029-4010-00
Button Bumper
Qty Used: 4Regular price $1.31 USDRegular priceUnit price per
-
110#030-3050-00
10 X 1/2 Pan Phil a T/S Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-

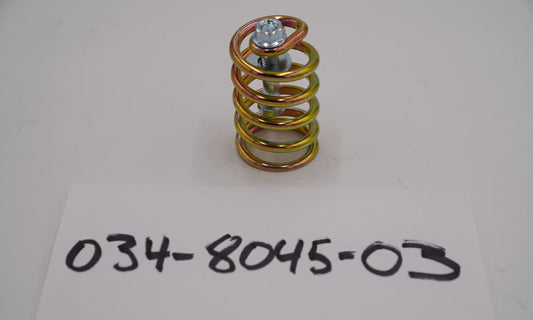

130#034-8045-03
2017 MZ/ZT Seat Spring Assembly
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
131#034-8045-22
2022 Mav/HD seat spring assembly with strap
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-

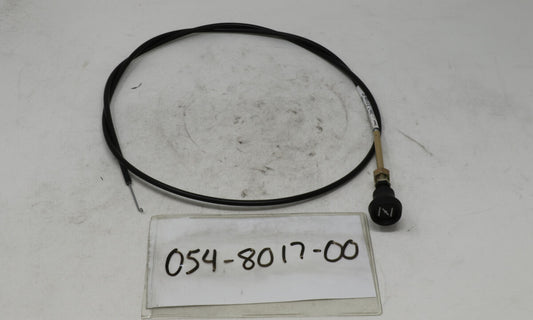

163#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
169#064-3050-21
2021 Load Balanced Brake Cable 1
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
170#064-3051-21
2021 Load Balanced Brake Cable 2
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
177#069-1051-21
Load Balanced Brake Handle Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
181#071-2102-22
2022 Maverick Seat
Qty Used: 1Regular price $662.13 USDRegular priceUnit price per
-
182#077-8073-00
Safety Switch
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
185#079-3470-21
2021 Maverick Floorboard Assembly
Qty Used: 1Regular price $129.99 USDRegular priceUnit price per
-
188#086-3050-19
2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-
193#091-0021-00
2018 Maverick Steering Control Decals
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
194#091-0339-18
2018 MZ/Magnum/ZT/MAV/Comp Out Brake Decal
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
201#091-3017-50
Maverick Pump Belt Decal
Qty Used: 1Regular price $4.39 USDRegular priceUnit price per
-
202#091-3150-00
Outlaw Warning Decal
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
205#091-4062-00
NOT FOR SALE IN CALIFORNIA
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
206#091-4063-00
Flying Bulldog Front Bumper Decal
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
