Transaxle

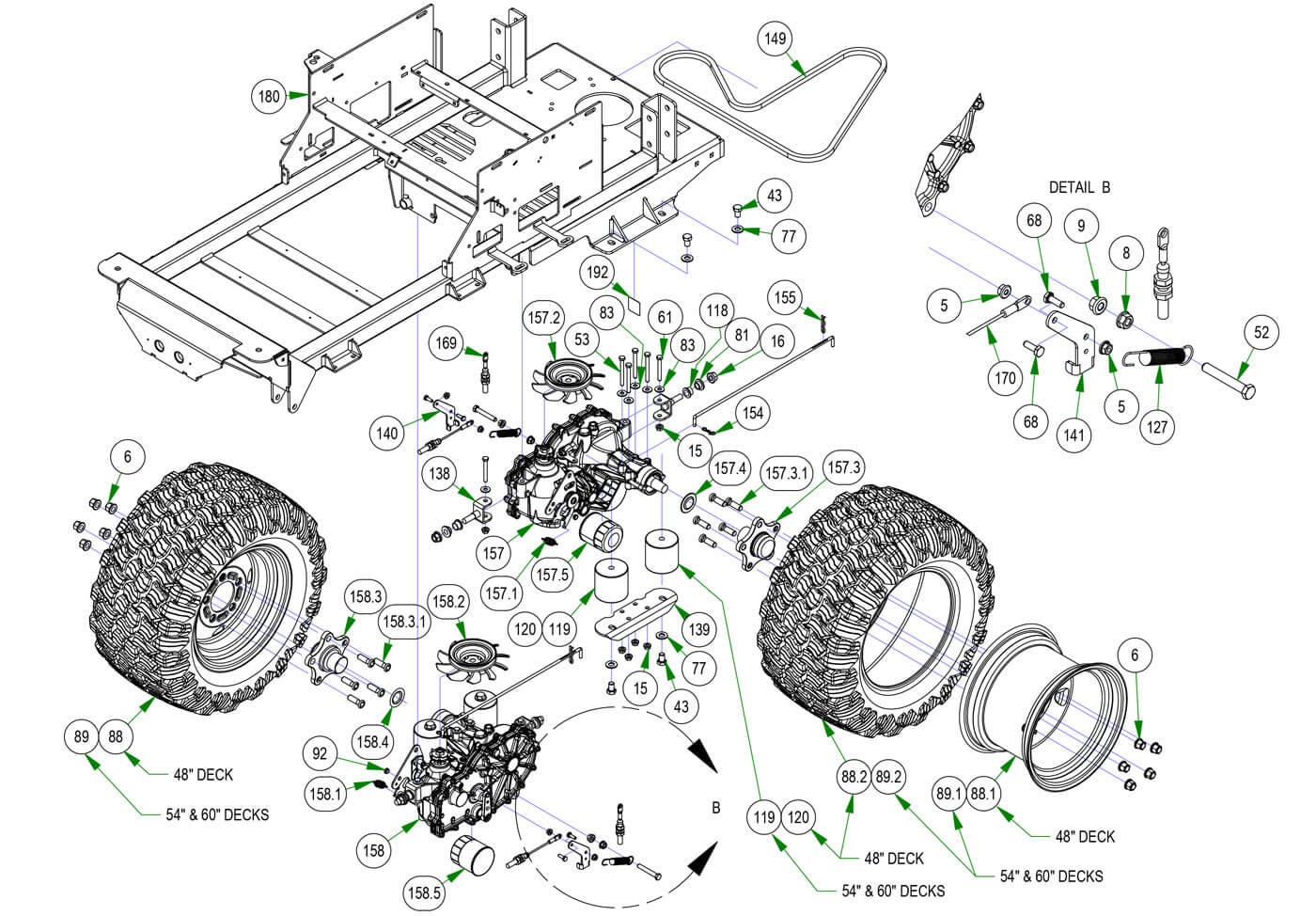

Parts Index
- 5 1/4-20 Nylon Insert Flange Nut (Qty 4)
- 6 Acorn Lug Nut (Qty 10)
- 8 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 9 3/8 Nylock Flange Nut (Qty 2)
- 15 5/16-18 Nylon Flange Nut (Qty 12)
- 16 1/2-13 Nylon Insert Flange Nut (Qty 4)
- 43 1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc (Qty 8)
- 52 3/8 x 2 1/2 Hex Tap Bolt - (Qty 2)
- 53 5/16-18 X 3 GR 5 Hex Bolt Zinc (Qty 8)
- 61 5/16 x 2 1/2 Bolt (Qty 4)
- 68 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 4)
- 77 1/2 SAE Flat Washer GR 8 (Qty 8)
- 81 .515 ID Plastic Shoulder Washer (Qty 4)
- 83 5/16 USS Flat Washer Zinc (Qty 12)
- 88 23x9-12 Reaper Turf Assembly (Qty 2)
- 88.1 12x7" Black Wheel-48" EZT Only (Qty 1)
- 88.2 23x9 - 12 Reaper Turf Tire Only (Qty 1)
- 89 2019 Maverick Assembly 23x11-12 Reaper Turf (Qty 2)
- 89.1 2015 Outlaw Black Wheel12x8.5"/2019 022-4091-00 (Qty 1)
- 89.2 2019 Maverick 23x11-12 Reaper Turf Fits 022-4200-0 (Qty 1)
- 92 Drive Arm Transaxle Spacer (Qty 2)
- 105 Neutral Rod (Qty 2)
- 118 Bronze Bushing - SF-2024-8 (Qty 4)
- 119 Isolator (Green Dot) (Qty 4)
- 120 Isolator (Red Dot) (Qty 4)
- 127 Brake Return Spring (Qty 2)
- 138 Transaxle Mount-Field Goal (Qty 4)
- 139 EZT Rear Susp Transaxle Mount--Plated (Qty 2)
- 140 Brake Arm Ext. Bracket Paired With 039-1321-00 (Qty 1)
- 141 Brake Arm Ext. Bracket Paired With 039-1320-00 (Qty 1)
- 154 Bow Pin (Qty 2)
- 155 Neutral Rod Clip (Qty 2)
- 157 2021 LH 3200 Transaxle (Qty 1)
- 157.1 Gold Transaxle Spring (Qty 1)
- 157.2 2021 ZT/Maverick Transaxle Fan/Pulley Kit (Qty 2)
- 157.3 5 Bolt Hub Kit (Qty 1)
- 157.3.1 Transaxle Wheel Studs/ Drum Brake Studs (Qty 5)
- 157.4 2021 ZT/Maverick Transaxle Seal Kit (ZT-2800) (Qty 1)
- 157.5 ZT Hydraulic Filter (Qty 1)
- 158 2021 RH 3200 Transaxle (Qty 1)
- 158.1 Gold Transaxle Spring (Qty 1)
- 158.2 2021 ZT/Maverick Transaxle Fan/Pulley Kit (Qty 1)
- 158.3 5 Bolt Hub Kit (Qty 1)
- 158.3.1 Transaxle Wheel Studs/ Drum Brake Studs (Qty 5)
- 158.4 2021 ZT/Maverick Transaxle Seal Kit (ZT-2800) (Qty 1)
- 158.5 ZT Hydraulic Filter (Qty 1)
- 169 2021 Load Balanced Brake Cable 1 (Qty 1)
- 170 2021 Load Balanced Brake Cable 2 (Qty 1)
- 192 Patent Decal (Qty 1)
-
5#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
6#013-3000-00
Acorn Lug Nut
Qty Used: 10Regular price $2.99 USDRegular priceUnit price per
-
8#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
9#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
15#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
16#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
43#018-1055-00
1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc
Qty Used: 8Regular price $2.69 USDRegular priceUnit price per
-
52#018-2071-00
3/8 x 2 1/2 Hex Tap Bolt -
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
53#018-4701-00
5/16-18 X 3 GR 5 Hex Bolt Zinc
Qty Used: 8Regular price $0.69 USDRegular priceUnit price per
-
61#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
68#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
77#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 8Regular price $0.75 USDRegular priceUnit price per
-
81#019-8027-00
.515 ID Plastic Shoulder Washer
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
83#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
88#022-4040-00
23x9-12 Reaper Turf Assembly
Qty Used: 2Regular price $299.99 USDRegular priceUnit price per
-
88.1#022-3011-00
12x7" Black Wheel-48" EZT Only
Qty Used: 1Regular price $106.99 USDRegular priceUnit price per
-
88.2#022-4035-00
23x9 - 12 Reaper Turf Tire Only
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
89#022-4200-00
2019 Maverick Assembly 23x11-12 Reaper Turf
Qty Used: 2Regular price $290.99 USDRegular priceUnit price per
-
89.1#022-4070-00
2015 Outlaw Black Wheel12x8.5"/2019 022-4091-00
Qty Used: 1Regular price $131.99 USDRegular priceUnit price per
-
89.2#022-4195-00
2019 Maverick 23x11-12 Reaper Turf Fits 022-4200-0
Qty Used: 1Regular price $225.99 USDRegular priceUnit price per
-
92#025-0036-00
Drive Arm Transaxle Spacer
Qty Used: 2Regular price $4.99 USDRegular priceUnit price per
-
105#028-0070-00
Neutral Rod
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
-
118#032-5052-00
Bronze Bushing - SF-2024-8
Qty Used: 4Regular price $4.37 USDRegular priceUnit price per
-
119#032-9000-00
Isolator (Green Dot)
Qty Used: 4Regular price $66.33 USDRegular priceUnit price per
-
120#032-9002-00
Isolator (Red Dot)
Qty Used: 4Regular price $66.33 USDRegular priceUnit price per
-
127#034-1026-00
Brake Return Spring
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
138#039-0001-00
Transaxle Mount
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
139#039-1306-00
EZT Rear Susp Transaxle Mount--Plated
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
140#039-1320-00
Brake Arm Extension Bracket
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
141#039-1321-00
Brake Arm Extension Bracket
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
-
155#044-2008-00
Neutral Rod Clip
Qty Used: 2Regular price $1.31 USDRegular priceUnit price per
-
157#050-0075-02
2021 LH 3200 Transaxle
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
-
157.1158.1#034-9080-00
Gold Transaxle Spring
Qty Used: 1Regular price $13.92 USDRegular priceUnit price per
-
157.2158.2#050-2070-00
2021 ZT/Maverick Transaxle Fan/Pulley Kit
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
157.3158.3#050-2077-00
5 Bolt Hub Kit
Qty Used: 1Regular price $88.97 USDRegular priceUnit price per
-
157.3.1158.3.1#050-2012-00
Transaxle Wheel Studs/ Drum Brake Studs
Qty Used: 5Regular price $5.10 USDRegular priceUnit price per
-
157.4158.4#050-8010-00
2021 ZT/Maverick Transaxle Seal Kit (ZT-2800)
Qty Used: 1Regular price $109.46 USDRegular priceUnit price per
-
157.5158.5#063-1050-00
ZT Hydraulic Filter
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
158#050-0080-02
2021 RH 3200 Transaxle
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
-
169#064-3050-21
2021 Load Balanced Brake Cable 1
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
170#064-3051-21
2021 Load Balanced Brake Cable 2
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
No sequence found for SKU:
Patent Decal
Regular price $0.00 USDRegular priceUnit price per
