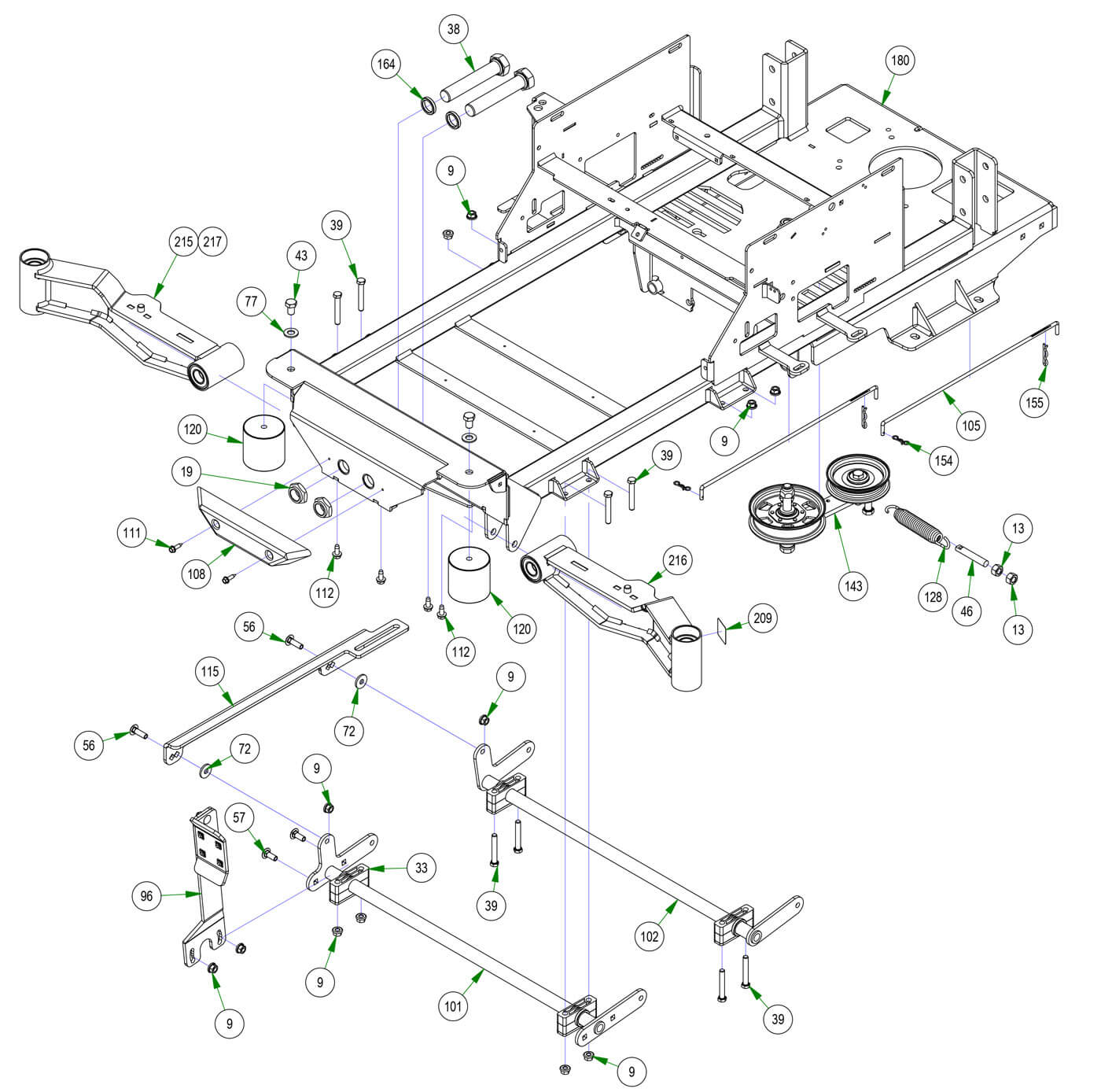

Lower Frame
Parts Index
- 9 3/8 Nylock Flange Nut (Qty 12)
- 13 1/2-13 Hex Nuts Zinc (Qty 2)
- 19 1" Nylock Nut 1/2 Nut - Fine (Qty 2)
- 33 Pillow Block (Qty 4)
- 38 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 2)
- 39 3/8x2 1/2" Hex Bolt (Qty 8)
- 43 1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc (Qty 2)
- 46 All Thread (Qty 1)
- 56 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 57 3/8 x 1 Carriage Bolt (Qty 2)
- 72 .390 ID Plastic Washer (Qty 2)
- 77 1/2 SAE Flat Washer GR 8 (Qty 2)
- 96 2017 MZ Foot Pedal Assembly (Qty 1)
- 101 Actuator Bar (Front) (Qty 1)
- 102 Actuator Bar (Rear) (Qty 1)
- 105 Neutral Rod (Qty 2)
- 108 ZT, Mav, HD, Revolt Front Bumper (Qty 1)
- 111 1/4 x 1 Hex Head Tek Screw (Qty 2)
- 112 5/16 x 3/4 Hex Washer Type F (Qty 4)
- 115 2017 MZ/ZT Actuator Linkage--Orange (Qty 1)
- 120 Isolator (Red Dot) (Qty 2)
- 128 2015 Deck Idler Spring (Qty 1)
- 143 Pump Idler Bracket Assy-Maverick (Qty 1)
- 154 Bow Pin (Qty 2)
- 155 Neutral Rod Clip (Qty 2)
- 164 Spacer ( Front Fork and Suspension ) (Qty 2)
- 192 Patent Decal (Qty 1)
- 209 Independently Articulating Front Suspension Arms (Qty 1)
- 215 2021 Maverick RH Arm Assembly (Qty 1)
- 217 2021 Maverick RH Long Front Suspension Arm Assy (Qty 1)
-
9#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 12Regular price $1.49 USDRegular priceUnit price per
-
13#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
19#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
33#017-9076-00
Pillow Block
Qty Used: 4Regular price $21.88 USDRegular priceUnit price per
-
38#018-0026-00
1-14 X 5 1/2 BOLT GR 8 ZC YELLOW
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
-
39#018-0028-00
3/8x2 1/2" Hex Bolt
Qty Used: 8Regular price $3.99 USDRegular priceUnit price per
-
43#018-1055-00
1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
46#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
56#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
57#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
72#019-2073-00
.390 ID Plastic Washer
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
77#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 2Regular price $0.75 USDRegular priceUnit price per
-
96#026-0019-01
2017 MZ Foot Pedal Assembly
Qty Used: 1Regular price $87.56 USDRegular priceUnit price per
-
101#028-0002-00
Actuator Bar (Front)
Qty Used: 1Regular price $72.97 USDRegular priceUnit price per
-
102#028-0003-00
Actuator Bar (Rear)
Qty Used: 1Regular price $72.97 USDRegular priceUnit price per
-
105#028-0070-00
Neutral Rod
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
-
-
111#030-7040-00
1/4 x 1 Hex Head Tek Screw
Qty Used: 2Regular price $1.00 USDRegular priceUnit price per
-
112#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
115#031-0510-00
2017 MZ/ZT Actuator Linkage--Orange
Qty Used: 1Regular price $43.78 USDRegular priceUnit price per
-
120#032-9002-00
Isolator (Red Dot)
Qty Used: 2Regular price $66.33 USDRegular priceUnit price per
-
128#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
143#039-5944-05
Pump Idler Bracket Assy-Maverick
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
-
155#044-2008-00
Neutral Rod Clip
Qty Used: 2Regular price $1.31 USDRegular priceUnit price per
-
164#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
No sequence found for SKU:
Patent Decal
Regular price $0.00 USDRegular priceUnit price per
-
209#091-8002-00
Independently Articulating Front Suspension Arms
Qty Used: 1Regular price $4.99 USDRegular priceUnit price per
-
215#250-2751-21
2021 Maverick RH Arm Assembly
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
217#250-2851-21
2021 Maverick RH Long Front Suspension Arm Assy
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
