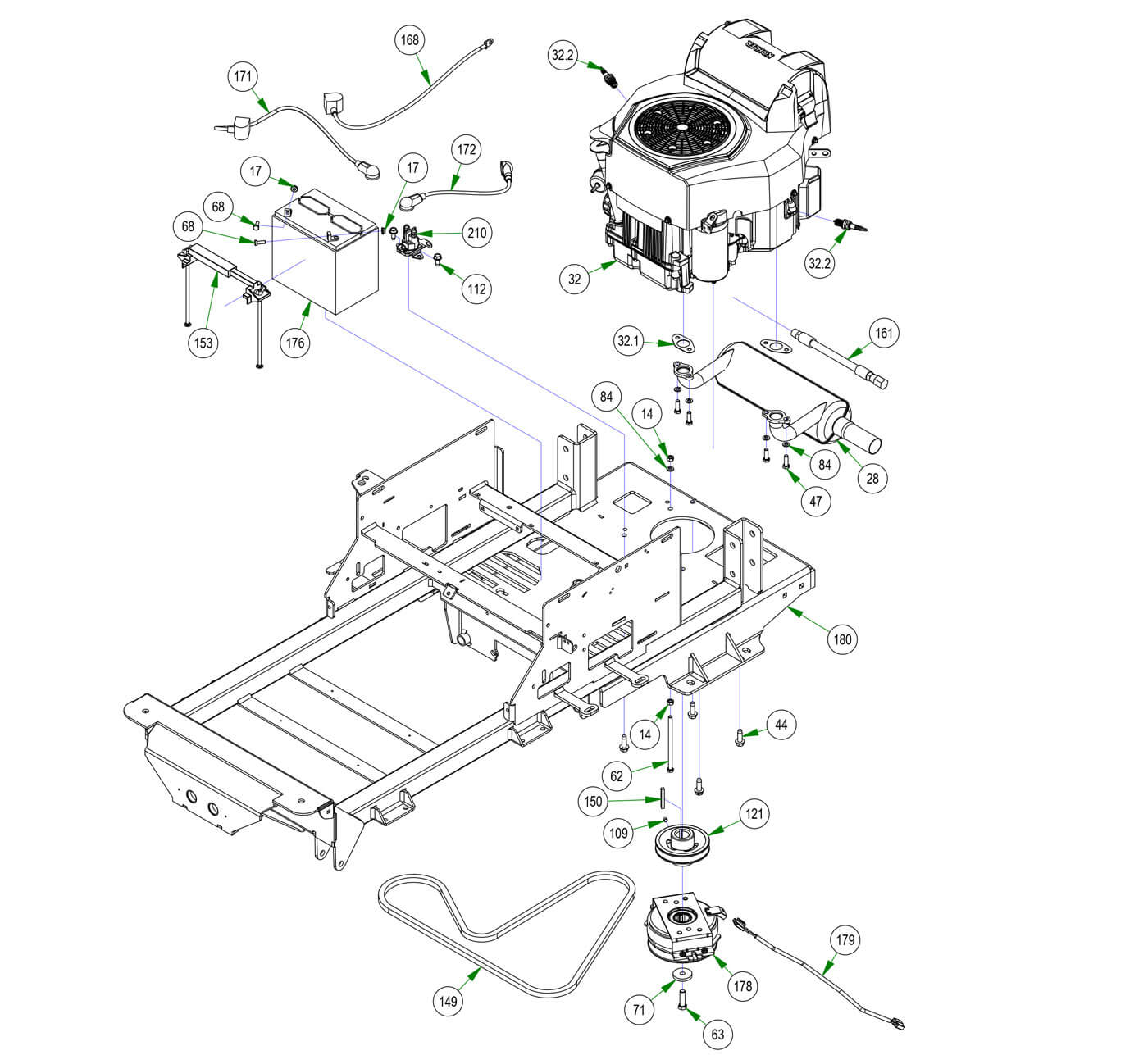

Kohler 747cc
Parts Index
- 14 5/16-18 Hex Nuts Zinc (Qty 2)
- 17 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 28 2017 Kohler Exhaust MZ, AVEN, ZT, MAV, HD (Qty 1)
- 32 25hp Kohler-2014 CZT, Oulaw (Qty 1)
- 32.1 Exhaust Gaskets for 27,30 hp (Qty 2)
- 32.2 Spark Plug-Kohler/Briggs (Qty 2)
- 44 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 4)
- 47 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 4)
- 62 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 63 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch (Qty 1)
- 68 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 71 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC (Qty 1)
- 84 5/16 Lock washer Zinc (Qty 5)
- 109 5/16-24 x 1/4 Set Screw (Qty 1)
- 112 5/16 x 3/4 Hex Washer Type F (Qty 2)
- 121 4 3/4 Motor Pulley (Qty 1)
- 149 Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick (Qty 1)
- 150 1/4 X 2 Square Key Stock (Qty 1)
- 153 Battery Hold Down (Plastic) (Qty 1)
- 161 Kohler Oil Drain Hose (Qty 1)
- 168 24 inch Black Cable - MZ/ZT (Qty 1)
- 171 24 Red Battery Cable (Qty 1)
- 172 24 Red Battery Cable (Qty 1)
- 176 Battery - All models except Renegade and Revolt (Qty 1)
- 178 Clutch For 1-1/8" Shaft (Qty 1)
- 179 Clutch Pigtail (Qty 1)
- 210 Solenoid (752-1251-210HP) (Qty 1)
-
14#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
17#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
28#015-0051-00
2017 Kohler Exhaust MZ/ZT/Mav/Compact Outlaw
Qty Used: 1Regular price $217.48 USDRegular priceUnit price per
-
32#015-2030-00
25hp Kohler-2014 CZT, Oulaw
Qty Used: 1Regular price $2,799.00 USDRegular priceUnit price per
-
32.1#015-2751-00
Exhaust Gaskets for 27,30 hp
Qty Used: 2Regular price $5.96 USDRegular priceUnit price per
-
32.2#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
4447#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
62#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
63#018-5450-21
7/16-20 x 1.5\" Hex bolt GR 8 w/ Patch
Qty Used: 1Regular price $1.25 USDRegular priceUnit price per
-
68#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
71#019-0010-00
7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
Qty Used: 1Regular price $5.39 USDRegular priceUnit price per
-
84#019-8051-00
5/16 Lock washer Zinc
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
109#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
112#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
121#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
149#041-7400-00
Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
150#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
153#043-8929-00
Battery Hold Down (Plastic)
Qty Used: 1Regular price $16.35 USDRegular priceUnit price per
-
161#051-5401-00
Kohler Oil Drain Hose
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
168#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
171172#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
176#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
-
179#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
210#108-0001-00
Solenoid (752-1251-210HP)
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
