Kawasaki FS-730V

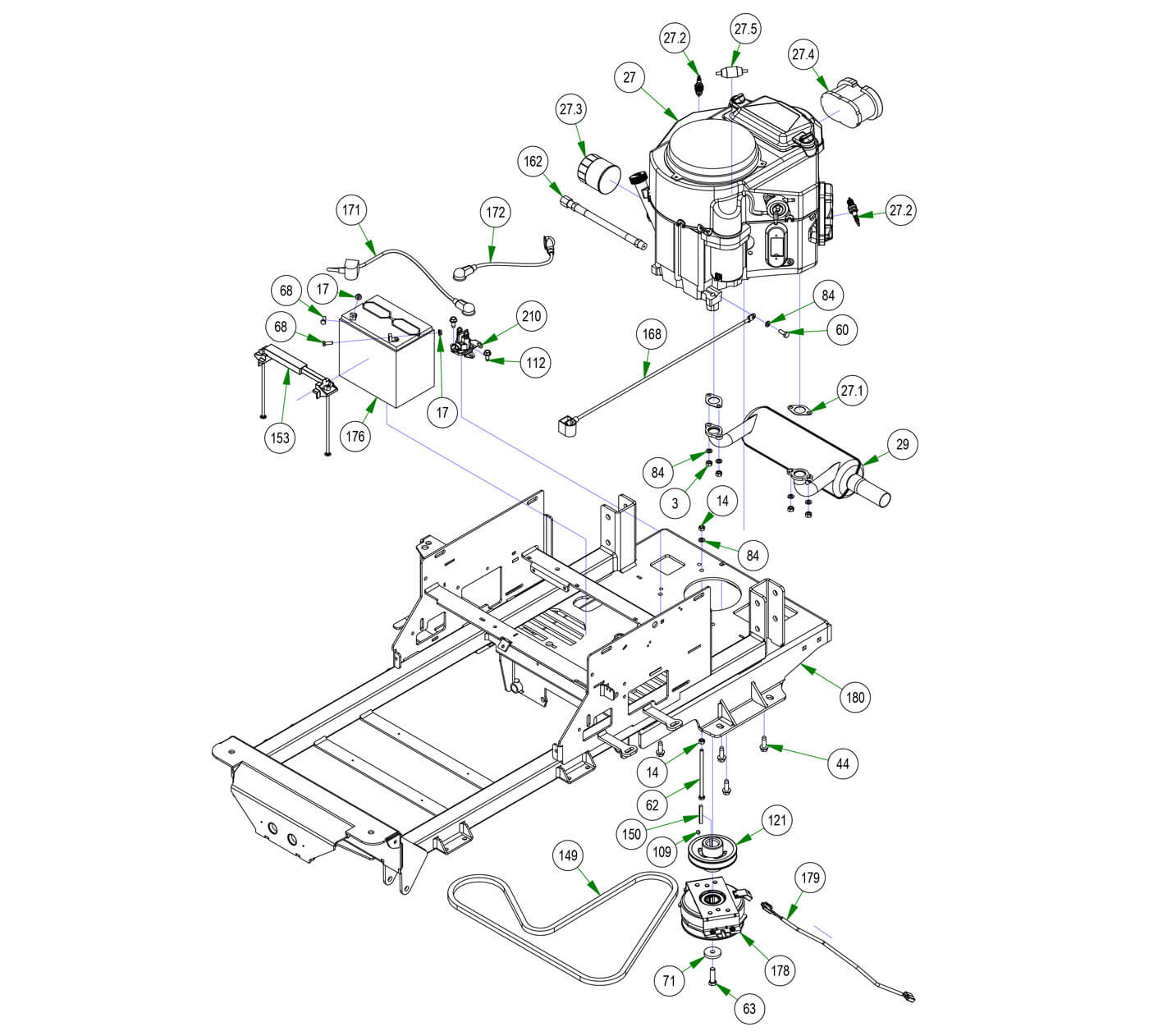

Parts Index
- 3 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 14 5/16-18 Hex Nuts Zinc (Qty 2)
- 17 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 27 26hp FS730V Engine (Qty 1)
- 27.1 Exhaust Gasket for 27 - Single Gasket (Qty 2)
- 27.2 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 27.3 22-26 Kaw Oil Filter FR Engine (Qty 1)
- 27.4 22-26 Kaw Air Filter FR / FS (Qty 1)
- 27.5 Universal Inline Fuel Filter (Qty 1)
- 29 2017 Kawasaki Exhaust MZ, AVEN, ZT, MAV, HD (Qty 1)
- 44 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 60 M8 x 1.25 x 20MM Hex Head Bolt (Qty 1)
- 62 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 63 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch (Qty 1)
- 68 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 71 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC (Qty 1)
- 84 5/16 Lock washer Zinc (Qty 6)
- 109 5/16-24 x 1/4 Set Screw (Qty 1)
- 112 5/16-24 x 1/4 Set Screw (Qty 1)
- 121 4 3/4 Motor Pulley (Qty 1)
- 149 Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick (Qty 1)
- 150 1/4 X 2 Square Key Stock (Qty 1)
- 153 Battery Hold Down (Plastic) (Qty 1)
- 162 Kawasaki Oil Drain (Qty 1)
- 168 24 inch Black Cable - MZ/ZT (Qty 1)
- 171 24 Red Battery Cable (Qty 1)
- 172 14" Red Battery Cable (Qty 1)
- 176 Battery - All models except Renegade and Revolt (Qty 1)
- 178 Clutch For 1-1/8" Shaft (Qty 1)
- 179 Clutch Pigtail (Qty 1)
- 210 Solenoid (752-1251-210HP) (Qty 1)
-
3#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
14#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
17#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
27#015-0045-00
26hp FS730V Engine
Qty Used: 1Regular price $2,299.99 USDRegular priceUnit price per
-
27.1#015-2709-00
Exhaust Gasket for 27 - Single Gasket
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
27.2#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
27.3#063-2096-00
22-26 Kaw Oil Filter FR Engine
Qty Used: 1Regular price $16.99 USDRegular priceUnit price per
-
27.4#063-2097-00
22-26 Kaw Air Filter FR / FS
Qty Used: 1Regular price $23.99 USDRegular priceUnit price per
-
27.5#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
29#015-0052-00
2017 Kawasaki Exhaust MZ/ZT/Mav/Comp
Qty Used: 1Regular price $217.48 USDRegular priceUnit price per
-
44#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
60#018-5321-00
M8 x 1.25 x 20MM Hex Head Bolt
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
62#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
63#018-5450-21
7/16-20 x 1.5\" Hex bolt GR 8 w/ Patch
Qty Used: 1Regular price $1.25 USDRegular priceUnit price per
-
68#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
71#019-0010-00
7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
Qty Used: 1Regular price $5.39 USDRegular priceUnit price per
-
84#019-8051-00
5/16 Lock washer Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
109112#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
121#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
149#041-7400-00
Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
150#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
153#043-8929-00
Battery Hold Down (Plastic)
Qty Used: 1Regular price $16.35 USDRegular priceUnit price per
-
162#051-5404-00
Kawasaki Oil Drain
Qty Used: 1Regular price $26.27 USDRegular priceUnit price per
-
168#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
171#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
172#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
176#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
-
179#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
210#108-0001-00
Solenoid (752-1251-210HP)
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
