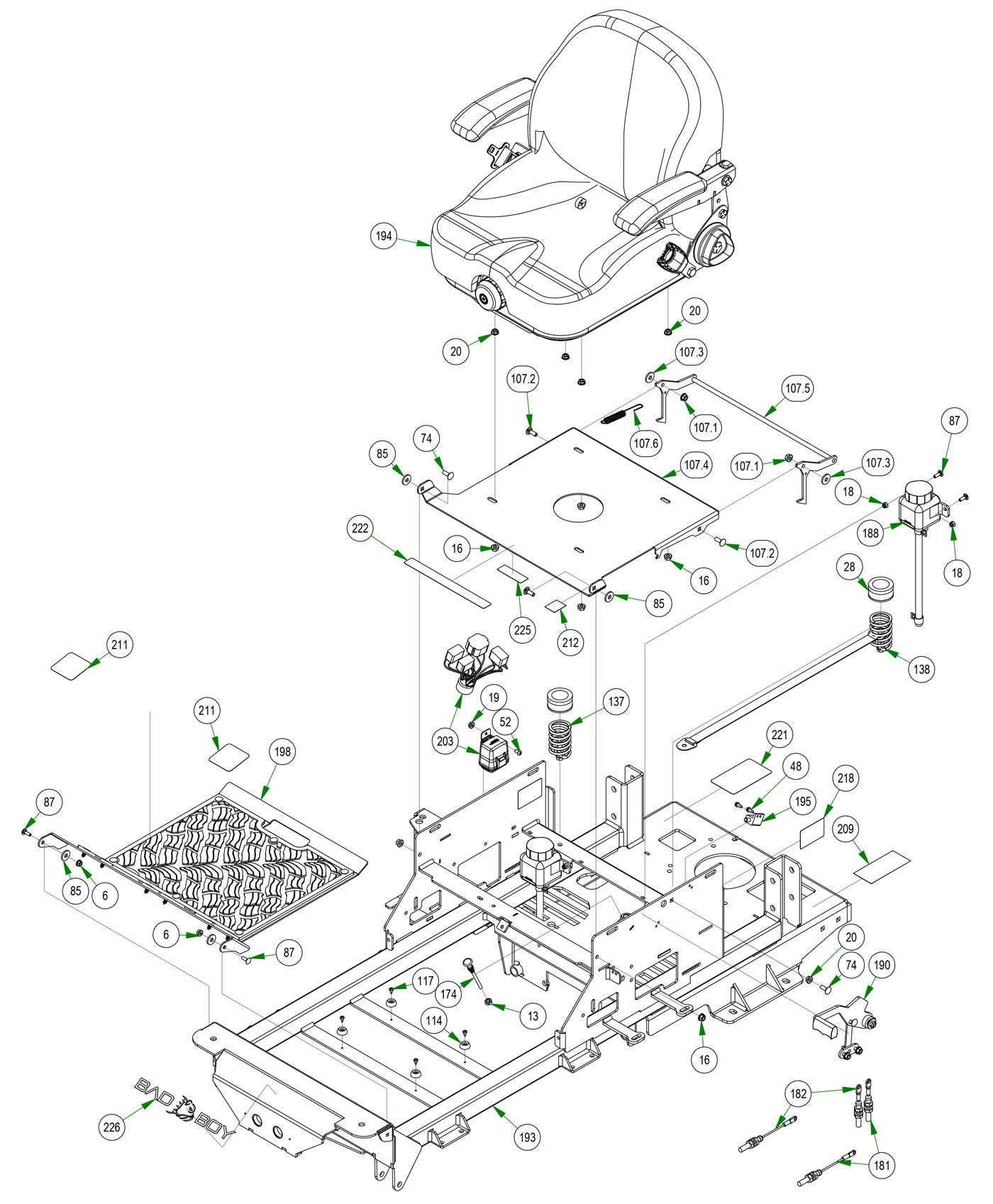

Upper Frame
Parts Index
- 6 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 13 3/8-24 Hex Nut Zinc (Qty 1)
- 16 5/16-18 Nylon Flange Nut (Qty 6)
- 18 1/4-20 Nylon Insert Locknut Zi (Qty 4)
- 19 1/4-20 Hex Flange Nuts Zinc w/ (Qty 1)
- 20 5/16-18 Hex Flange Nuts Zinc w (Qty 5)
- 28 Seat Spring Cap Cover (Qty 2)
- 48 12-24 x 1/2 HWH Bolt (Qty 2)
- 52 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 1)
- 74 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 3)
- 85 .360 ID Plastic Washer (Qty 4)
- 87 1/4 x 3/4 Carriage Bolt (Qty 6)
- 107.1 5/16-18 Nylon Flange Nut (Qty 2)
- 107.2 5/16 x 7/8 Carriage Bolt (Qty 2)
- 107.3 .360 ID Plastic Washer (Qty 2)
- 107.4 Seat Plate 2016--Orange (Qty 1)
- 107.5 Seat Latch Rod (Qty 1)
- 107.6 Brake Spring (Qty 1)
- 114 Button Bumper (Qty 4)
- 117 10 X 1/2 Pan Phil a T/S Zinc (Qty 4)
- 137 2017 MZ/ZT Seat Spring Assembly (Qty 1)
- 138 2022 Mav/HD Seat Spring Assembly with Strap (Qty 1)
- 174 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 181 2021 Load Balanced Brake Cable 1 (Qty 1)
- 182 2021 Load Balanced Brake Cable 2 (Qty 1)
- 188 2017 ZT Hydro Tank Assembly (Qty 2)
- 190 Brake Handle Assembly For HD Down (Qty 1)
- 194 2022 Seats Inc Suspension Seat with seatbelt (Qty 1)
- 195 Safety Switch (Qty 1)
- 198 2021 Maverick Floorboard Assembly (Qty 1)
- 203 2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
- 211 ZT, Mav, HD Steering Control Decals (Qty 1)
- 212 MZ, ZT, Aven, Mav, HD Brake Decal (Qty 1)
- 218 Yellow Hydraulic Decal (Qty 2)
- 221 Maverick Pump Belt Decal (Qty 1)
- 222 Long Seat Plate Warning Decal (Qty 1)
- 225 NOT FOR SALE IN CALIFORNIA (Qty 1)
- 226 Flying Bulldog Front Bumper Decal (Qty 1)
-
6#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
13#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
16107.1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
18#013-8073-00
1/4-20 Nylon Insert Locknut Zi
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
19#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
20#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
28#014-8047-00
Seat Spring Cap Cover
Qty Used: 2Regular price $8.12 USDRegular priceUnit price per
-
48#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
5274#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
85107.3#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
87#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 6Regular price $1.49 USDRegular priceUnit price per
-
107.2#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
107.4#026-1016-00
Seat Plate 2016--Orange
Qty Used: 1Regular price $102.11 USDRegular priceUnit price per
-
107.5#028-0090-00
Seat Latch Rod
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
107.6#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
114#029-4010-00
Button Bumper
Qty Used: 4Regular price $1.31 USDRegular priceUnit price per
-
117#030-3050-00
10 X 1/2 Pan Phil a T/S Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
137#034-8045-03
2017 MZ/ZT Seat Spring Assembly
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
138#034-8045-22
2022 Mav/HD seat spring assembly with strap
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
174#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
181#064-3050-21
2021 Load Balanced Brake Cable 1
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
182#064-3051-21
2021 Load Balanced Brake Cable 2
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
188#067-8090-03
2017 ZT Hydro Tank Assembly
Qty Used: 2Regular price $39.68 USDRegular priceUnit price per
-
190#069-1051-21
Load Balanced Brake Handle Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
194#071-6065-22
2022 Seats Inc Suspension Seat with seatbelt
Qty Used: 1Regular price $829.99 USDRegular priceUnit price per
-
195#077-8073-00
Safety Switch
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
198#079-3470-21
2021 Maverick Floorboard Assembly
Qty Used: 1Regular price $129.99 USDRegular priceUnit price per
-
203#086-3050-19
2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-
211#091-0021-00
2018 Maverick Steering Control Decals
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
212#091-0339-18
2018 MZ/Magnum/ZT/MAV/Comp Out Brake Decal
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
218#091-1020-00
Yellow Hydraulic Decal
Qty Used: 2Regular price $1.46 USDRegular priceUnit price per
-
221#091-3017-50
Maverick Pump Belt Decal
Qty Used: 1Regular price $4.39 USDRegular priceUnit price per
-
222#091-3150-00
Outlaw Warning Decal
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
225#091-4062-00
NOT FOR SALE IN CALIFORNIA
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
226#091-4063-00
Flying Bulldog Front Bumper Decal
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
