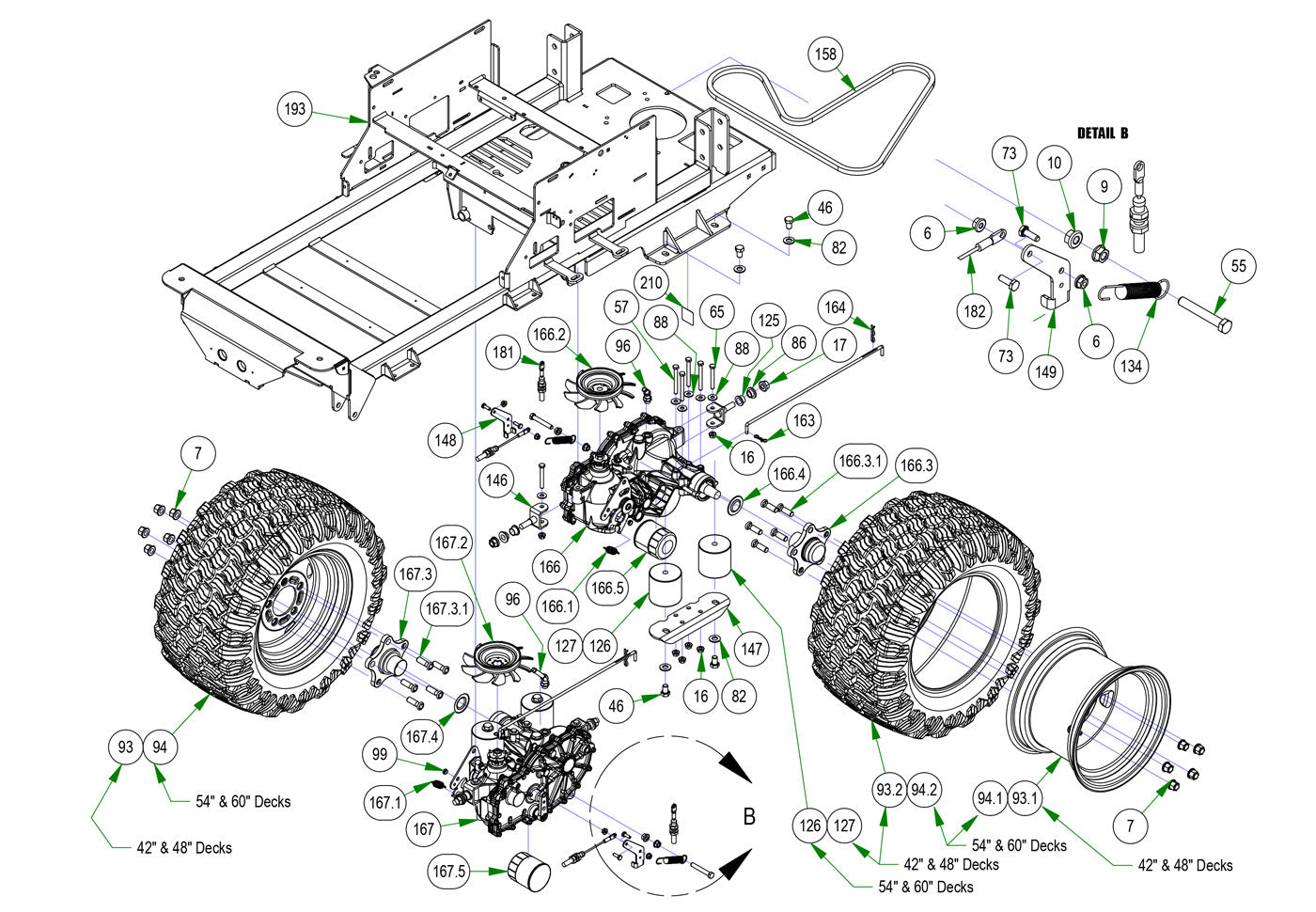

Transaxle
Parts Index
- 6 1/4-20 Nylon Insert Flange Nut (Qty 4)
- 7 Acorn Lug Nut (Qty 10)
- 9 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 10 3/8 Nylock Flange Nut (Qty 2)
- 16 5/16-18 Nylon Flange Nut (Qty 12)
- 17 1/2-13 Nylon Insert Flange Nut (Qty 4)
- 46 1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc (Qty 8)
- 55 3/8 x 2 1/2 Hex Tap Bolt - (Qty 2)
- 57 5/16-18 X 3 GR 5 Hex Bolt Zinc (Qty 8)
- 65 5/16 x 2 1/2 Bolt (Qty 4)
- 73 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 4)
- 82 1/2 SAE Flat Washer GR 8 (Qty 8)
- 86 .515 ID Plastic Shoulder Washer (Qty 4)
- 88 5/16 USS Flat Washer Zinc (Qty 12)
- 93 23x9-12 Reaper Turf Assembly (Qty 2)
- 93.1 12x7" Black Wheel-48" EZT Only (Qty 1)
- 93.2 23x9 - 12 Reaper Turf Tire Only (Qty 1)
- 94 2019 Maverick Assembly 23x11-12 Reaper Turf (Qty 2)
- 94.1 2015 Outlaw Black Wheel12x8.5"/2019 022-4091-00 (Qty 1)
- 94.2 2019 Maverick 23x11-12 Reaper Turf Fits 022-4200-0 (Qty 1)
- 96 ZT Fitting, 3/8 x 3/8 45 Degree (Qty 2)
- 99 Drive Arm Transaxle Spacer (Qty 2)
- 125 Bronze Bushing - SF-2024-8 (Qty 4)
- 126 Isolator (Green Dot) (Qty 4)
- 127 Isolator (Red Dot) (Qty 4)
- 134 Brake Return Spring (Qty 2)
- 146 Transaxle Mount-Field Goal (Qty 4)
- 147 EZT Rear Susp Transaxle Mount--Plated (Qty 2)
- 148 Brake Arm Ext. Bracket Paired With 039-1321-00 (Qty 1)
- 149 Brake Arm Ext. Bracket Paired With 039-1320-00 (Qty 1)
- 158 Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick (Qty 1)
- 163 Bow Pin (Qty 2)
- 164 Neutral Rod Clip (Qty 2)
- 166 Compact Outlaw/Revolt Transaxle Left 3400 (Qty 1)
- 166.1 Gold Transaxle Spring (Qty 1)
- 166.2 Fan/Pulley Kit for CZT (Qty 1)
- 166.3 5 Bolt Hub Kit (Qty 1)
- 166.3.1 Transaxle Wheel Studs/ Drum Brake Studs (Qty 5)
- 166.4 Seal Kit for 3400 Transaxle (Qty 1)
- 166.5 ZT Hydraulic Filter (Qty 1)
- 167 Compact Outlaw/Revolt Transaxle Right 3400 (Qty 1)
- 167.1 Gold Transaxle Spring (Qty 1)
- 167.2 Fan/Pulley Kit for CZT (Qty 1)
- 167.3 5 Bolt Hub Kit (Qty 1)
- 167.3.1 Transaxle Wheel Studs/ Drum Brake Studs (Qty 5)
- 167.4 Seal Kit for 3400 Transaxle (Qty 1)
- 167.5 ZT Hydraulic Filter (Qty 1)
- 181 2021 Load Balanced Brake Cable 1 (Qty 1)
- 182 2021 Load Balanced Brake Cable 2 (Qty 1)
- 210 Patent Decal (Qty 1)
-
6#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
7#013-3000-00
Acorn Lug Nut
Qty Used: 10Regular price $2.99 USDRegular priceUnit price per
-
9#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
10#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
16#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
17#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
46#018-1055-00
1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc
Qty Used: 8Regular price $2.69 USDRegular priceUnit price per
-
55#018-2071-00
3/8 x 2 1/2 Hex Tap Bolt -
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
57#018-4701-00
5/16-18 X 3 GR 5 Hex Bolt Zinc
Qty Used: 8Regular price $0.69 USDRegular priceUnit price per
-
65#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
73#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
82#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 8Regular price $0.75 USDRegular priceUnit price per
-
86#019-8027-00
.515 ID Plastic Shoulder Washer
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
88#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
93#022-4040-00
23x9-12 Reaper Turf Assembly
Qty Used: 2Regular price $299.99 USDRegular priceUnit price per
-
93.1#022-3011-00
12x7" Black Wheel-48" EZT Only
Qty Used: 1Regular price $106.99 USDRegular priceUnit price per
-
93.2#022-4035-00
23x9 - 12 Reaper Turf Tire Only
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
94#022-4200-00
2019 Maverick Assembly 23x11-12 Reaper Turf
Qty Used: 2Regular price $290.99 USDRegular priceUnit price per
-
94.1#022-4070-00
2015 Outlaw Black Wheel12x8.5"/2019 022-4091-00
Qty Used: 1Regular price $131.99 USDRegular priceUnit price per
-
94.2#022-4195-00
2019 Maverick 23x11-12 Reaper Turf Fits 022-4200-0
Qty Used: 1Regular price $225.99 USDRegular priceUnit price per
-

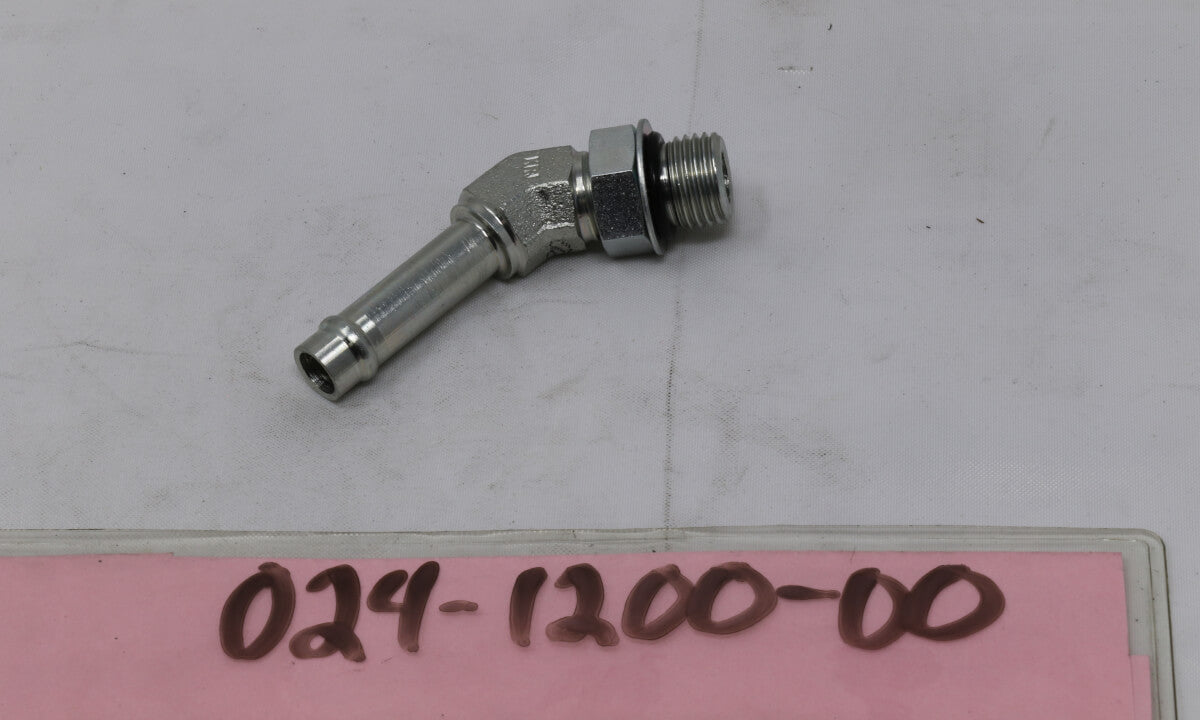

96#024-1200-00
ZT Fitting, 3/8 x 3/8 45 Degree
Qty Used: 2Regular price $18.63 USDRegular priceUnit price per
-
99#025-0036-00
Drive Arm Transaxle Spacer
Qty Used: 2Regular price $4.99 USDRegular priceUnit price per
-
125#032-5052-00
Bronze Bushing - SF-2024-8
Qty Used: 4Regular price $4.37 USDRegular priceUnit price per
-
126#032-9000-00
Isolator (Green Dot)
Qty Used: 4Regular price $66.33 USDRegular priceUnit price per
-
127#032-9002-00
Isolator (Red Dot)
Qty Used: 4Regular price $66.33 USDRegular priceUnit price per
-
134#034-1026-00
Brake Return Spring
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
146#039-0001-00
Transaxle Mount
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
147#039-1306-00
EZT Rear Susp Transaxle Mount--Plated
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
148#039-1320-00
Brake Arm Extension Bracket
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
149#039-1321-00
Brake Arm Extension Bracket
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
158#041-7400-00
Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
-
164#044-2008-00
Neutral Rod Clip
Qty Used: 2Regular price $1.31 USDRegular priceUnit price per
-
166#050-6000-01
Compact Outlaw/Revolt Transaxle Left 3400
Qty Used: 1Regular price $819.99 USDRegular priceUnit price per
-
166.1167.1#034-9080-00
Gold Transaxle Spring
Qty Used: 1Regular price $13.92 USDRegular priceUnit price per
-
166.2167.2#050-2072-00
Fan/Pulley Kit for CZT
Qty Used: 1Regular price $59.78 USDRegular priceUnit price per
-
166.3167.3#050-2077-00
5 Bolt Hub Kit
Qty Used: 1Regular price $88.97 USDRegular priceUnit price per
-
166.3.1167.3.1#050-2012-00
Transaxle Wheel Studs/ Drum Brake Studs
Qty Used: 5Regular price $5.10 USDRegular priceUnit price per
-

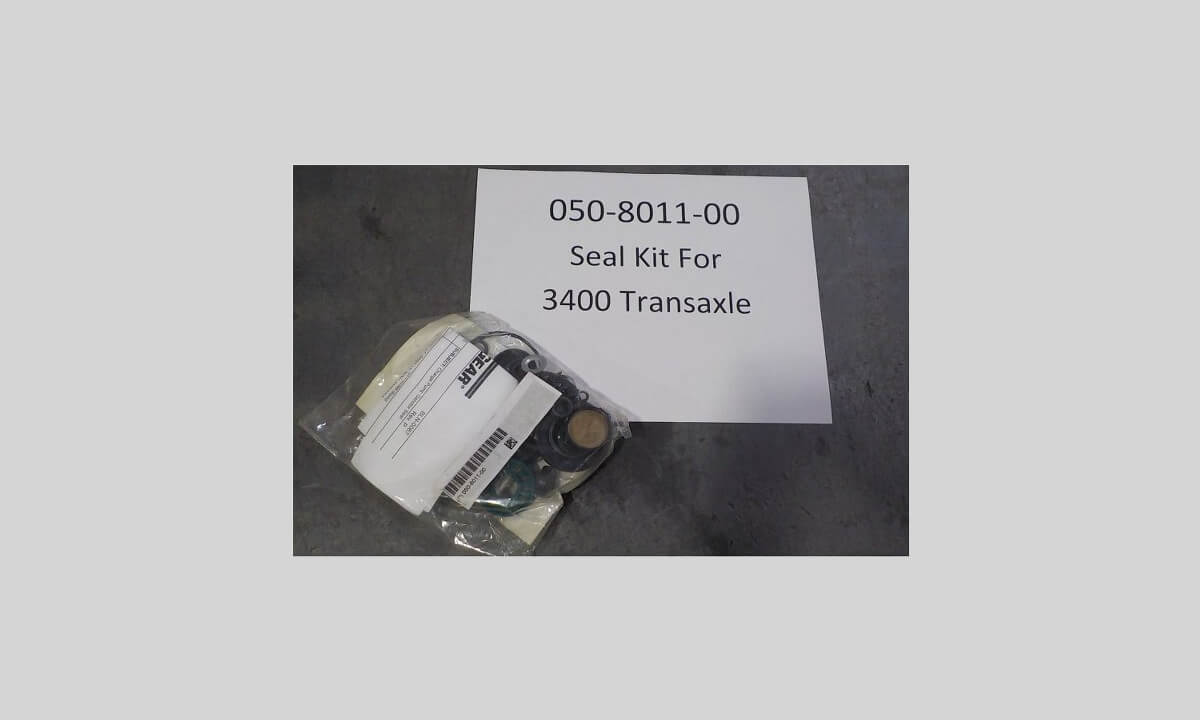

166.4167.4#050-8011-00
Seal Kit for 3400 Transaxle
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
166.5167.5#063-1050-00
ZT Hydraulic Filter
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
167#050-6001-01
Compact Outlaw/Revolt Transaxle Right 3400
Qty Used: 1Regular price $819.99 USDRegular priceUnit price per
-
181#064-3050-21
2021 Load Balanced Brake Cable 1
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
182#064-3051-21
2021 Load Balanced Brake Cable 2
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
No sequence found for SKU:
Patent Decal
Regular price $0.00 USDRegular priceUnit price per
