Kawasaki

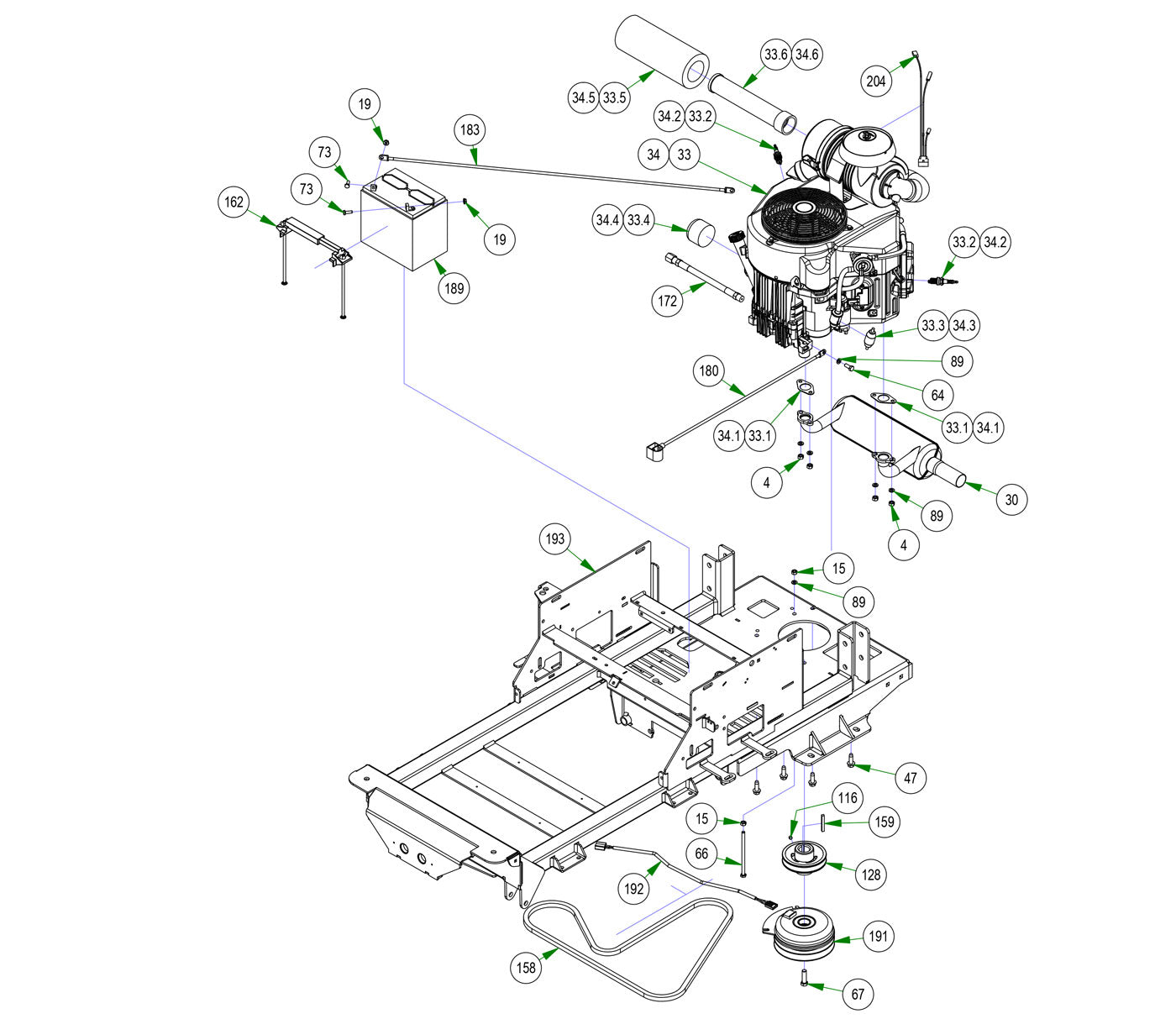

Parts Index
- 4 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 15 5/16-18 Hex Nuts Zinc (Qty 2)
- 19 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 30 2017 Kawasaki Exhaust MZ, AVEN, ZT, MAV, HD (Qty 1)
- 33 FX691 Kawasaki (Qty 1)
- 33.1 Exhaust Gasket for 015-0077-00 (Qty 2)
- 33.2 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 33.3 Universal Inline Fuel Filter (Qty 1)
- 33.4 Kawasaki Oil Filter (Qty 1)
- 33.5 Canister Air Fil Outer2010&Old (Qty 1)
- 33.6 Canister Air Filter - Inner (Qty 1)
- 34 FX730 Kawasaki (Qty 1)
- 34.1 Exhaust Gasket for 015-0077-00 (Qty 2)
- 34.2 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 34.3 Universal Inline Fuel Filter (Qty 1)
- 34.4 Kawasaki Oil Filter (Qty 1)
- 34.5 Canister Air Fil Outer2010&Old (Qty 1)
- 34.6 Canister Air Filter - Inner (Qty 1)
- 47 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 64 M8 x 1.25 x 20MM Hex Head Bolt (Qty 1)
- 66 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 67 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch (Qty 1)
- 73 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 89 5/16 Lock washer Zinc (Qty 6)
- 116 5/16-24 x 1/4 Set Screw (Qty 1)
- 128 4 3/4 Motor Pulley (Qty 1)
- 158 Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick (Qty 1)
- 159 1/4 X 2 Square Key Stock (Qty 1)
- 162 Battery Hold Down (Plastic) (Qty 1)
- 172 Kawasaki Oil Drain (Qty 1)
- 180 24 inch Black Cable - MZ/ZT (Qty 1)
- 183 36 Red Battery Cable (Qty 1)
- 189 Battery - All models except Renegade and Revolt (Qty 1)
- 191 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 192 Clutch Pigtail (Qty 1)
- 204 Harness Adaptor-FX691, FX730 HD (Qty 1)
-
4#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
15#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
19#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
30#015-0052-00
2017 Kawasaki Exhaust MZ/ZT/Mav/Comp
Qty Used: 1Regular price $217.48 USDRegular priceUnit price per
-
33#015-0691-00
FX691 Kawasaki-2016 Compact Outlaw
Qty Used: 1Regular price $2,599.00 USDRegular priceUnit price per
-
33.134.1#015-0077-01
Exhaust Gasket for 015-0077-00
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
33.234.2#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
33.334.3#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
33.434.4#063-8017-00
Kawasaki Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
33.534.5#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
33.634.6#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
34#015-0730-00
FX730 Kawasaki-2015 Outlaw Base
Qty Used: 1Regular price $2,599.00 USDRegular priceUnit price per
-
47#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
64#018-5321-00
M8 x 1.25 x 20MM Hex Head Bolt
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
66#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
67#018-5450-21
7/16-20 x 1.5\" Hex bolt GR 8 w/ Patch
Qty Used: 1Regular price $1.25 USDRegular priceUnit price per
-
73#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
89#019-8051-00
5/16 Lock washer Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
116#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
128#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
158#041-7400-00
Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
159#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
162#043-8929-00
Battery Hold Down (Plastic)
Qty Used: 1Regular price $16.35 USDRegular priceUnit price per
-
172#051-5404-00
Kawasaki Oil Drain
Qty Used: 1Regular price $26.27 USDRegular priceUnit price per
-
180#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
183#064-8060-00
36 Red Battery Cable
Qty Used: 1Regular price $19.56 USDRegular priceUnit price per
-
189#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
-
192#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
204#086-9002-00
Harness Adaptor-Outlaw FX-All
Qty Used: 1Regular price $43.78 USDRegular priceUnit price per
