Honda

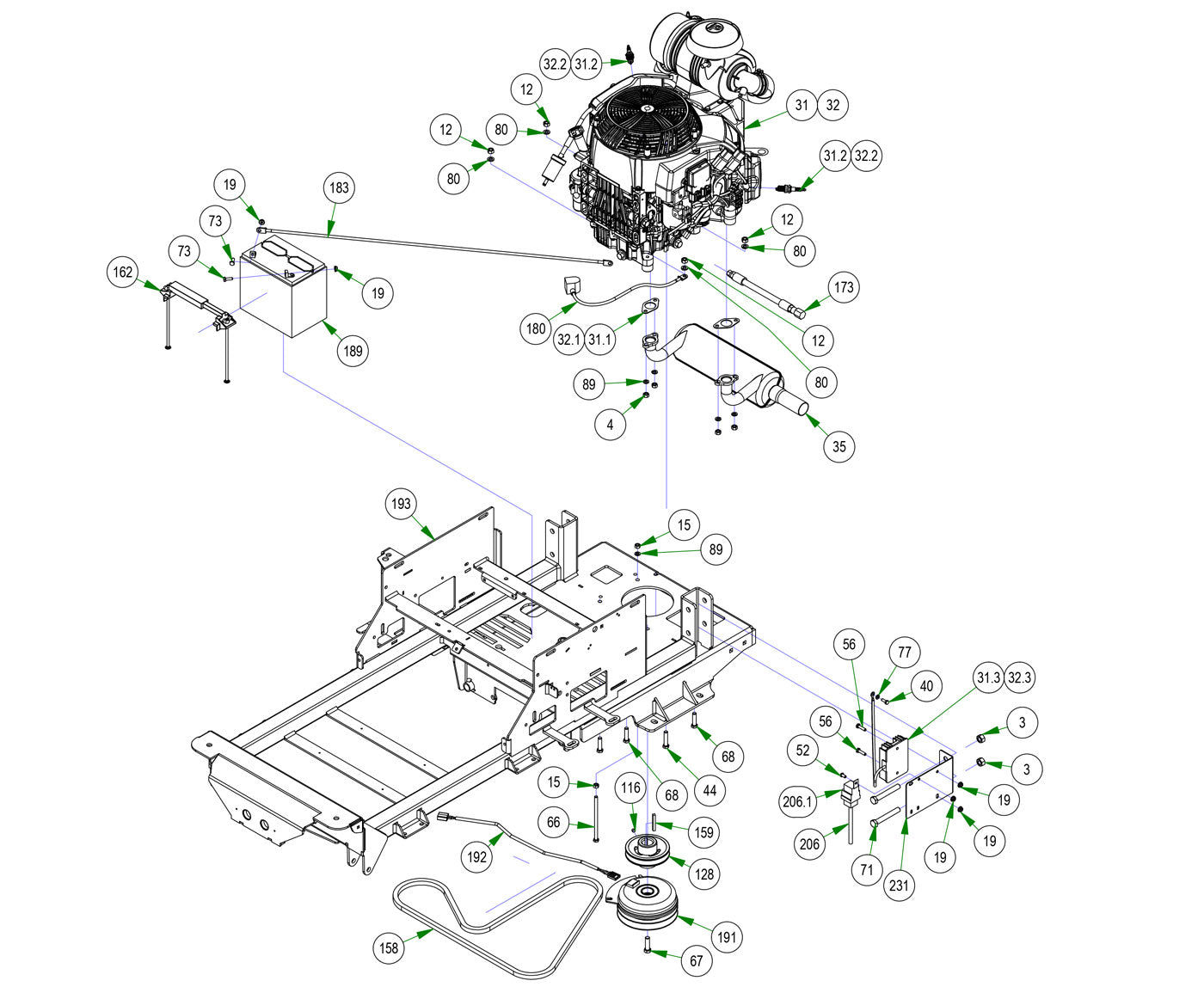

Parts Index
- 3 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 2)
- 4 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 12 3/8-16 Hex Nuts Zinc (Qty 4)
- 15 5/16-18 Hex Nuts Zinc (Qty 2)
- 19 1/4-20 Hex Flange Nuts Zinc w/ (Qty 5)
- 31.1 Exhaust Gasket for 015-0077-00 (Qty 2)
- 31.2 Spark Plug for the 015-0091-00 (GXV630) (Qty 2)
- 31.3 Regulator Rectifier for Honda (015-0091-00) (Qty 1)
- 32.1 Exhaust Gasket for 015-0077-00 (Qty 2)
- 32.2 Spark Plug for the 015-0091-00 (GXV630) (Qty 2)
- 32.3 Regulator Rectifier for Honda (015-0091-00) (Qty 1)
- 35 2019 Honda Maverick Exhaust (Qty 1)
- 40 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 1)
- 44 3/8-16 x 1-3/4 Hex C/S (GR 5) ZC (Qty 1)
- 52 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 1)
- 56 1/4-20 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 66 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 67 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch (Qty 1)
- 68 3/8 x 1 1/2 Bolt (Qty 3)
- 71 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 2)
- 73 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 77 1/4 Lockwasher Zinc (Qty 1)
- 80 3/8 Lockwasher Zinc (Qty 4)
- 89 5/16 Lock washer Zinc (Qty 5)
- 116 5/16-24 x 1/4 Set Screw (Qty 1)
- 128 4 3/4 Motor Pulley (Qty 1)
- 158 Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick (Qty 1)
- 159 1/4 X 2 Square Key Stock (Qty 1)
- 162 Battery Hold Down (Plastic) (Qty 1)
- 173 2019 Honda Oil Drain (Qty 1)
- 180 24 inch Black Cable - MZ/ZT (Qty 1)
- 183 36 Red Battery Cable (Qty 1)
- 189 Battery - All models except Renegade and Revolt (Qty 1)
- 191 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 192 Clutch Pigtail (Qty 1)
- 206.1 2022 Relay for the 086-9019-00 (Qty 1)
- 231 Honda Rectifier Mount--Orange (Qty 1)
-
3#013-0005-00
1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
4#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
12#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
15#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
19#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
31.132.1#015-0077-01
Exhaust Gasket for 015-0077-00
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
31.232.2#015-0091-04
Spark Plug for the 015-0091-00
Qty Used: 2Regular price $10.20 USDRegular priceUnit price per
-
31.332.3#015-0091-06
Regulator Rectifier for Honda (015-0091-00)
Qty Used: 1Regular price $224.25 USDRegular priceUnit price per
-
35#015-1016-00
2019 Honda Maverick Exhaust
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
40#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
44#018-0075-00
3/8-16 x 1-3/4 Hex C/S (GR 5) ZC
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
52#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
56#018-4007-00
1/4-20 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
66#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
67#018-5450-21
7/16-20 x 1.5\" Hex bolt GR 8 w/ Patch
Qty Used: 1Regular price $1.25 USDRegular priceUnit price per
-
68#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
71#018-6054-00
1/2-13 X 3-1/2 GR 5 Hex Bolts
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
73#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
77#019-4008-00
1/4 Lockwasher Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
80#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
89#019-8051-00
5/16 Lock washer Zinc
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
116#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
128#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
158#041-7400-00
Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
159#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
162#043-8929-00
Battery Hold Down (Plastic)
Qty Used: 1Regular price $16.35 USDRegular priceUnit price per
-
173#051-5405-00
2019 Honda Oil Drain
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
180#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
183#064-8060-00
36 Red Battery Cable
Qty Used: 1Regular price $19.56 USDRegular priceUnit price per
-
189#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
-
192#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-

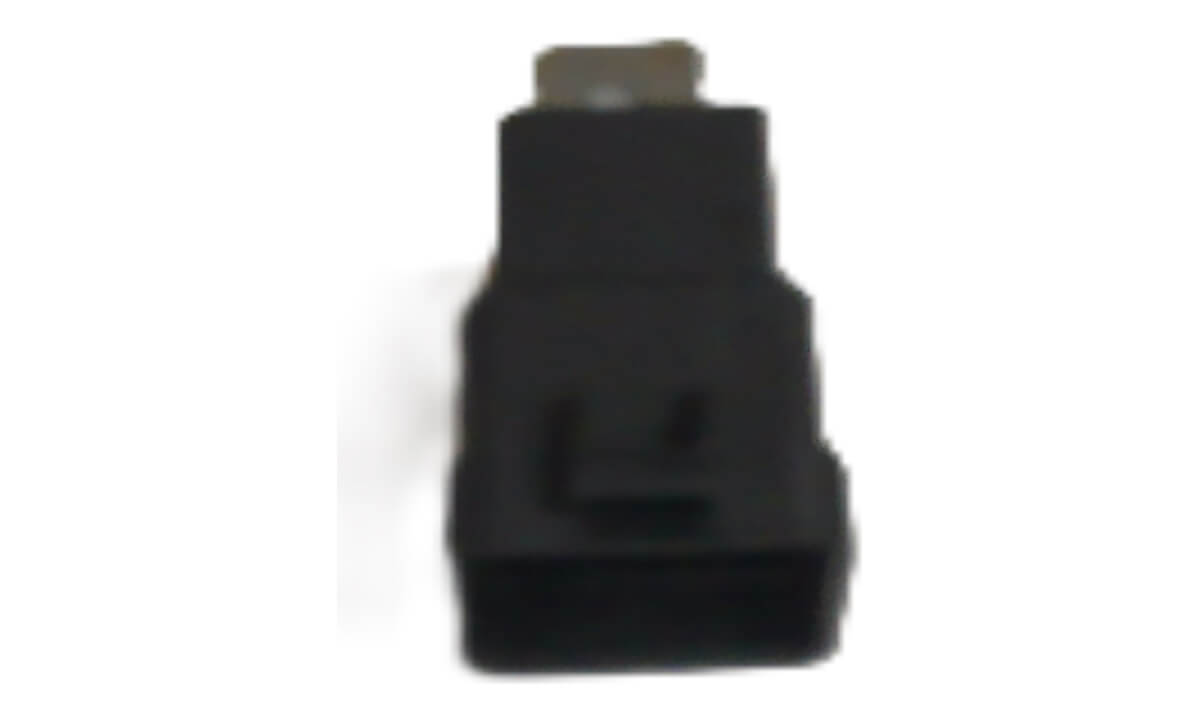

206.1#086-1200-00
2022 Relay for the 086-9019-00
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
231#201-0020-00
Honda Rectifier Mount--Orange
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
