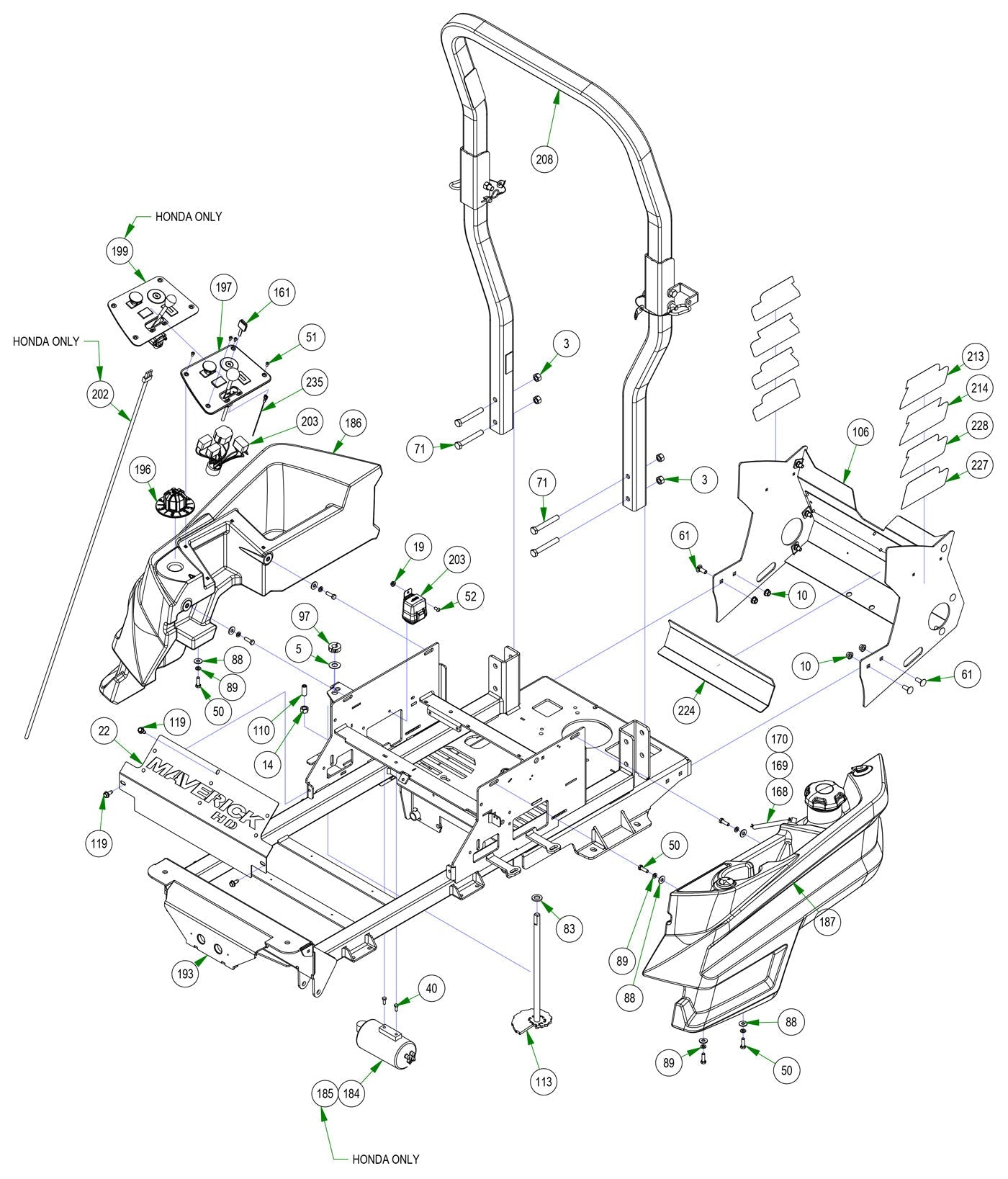

Fuel Tank & Rear Cover
Parts Index
- 3 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 4)
- 5 .630 ID x 1.130 OD x .062 THK F/W Nylon Black (Qty 1)
- 10 3/8 Nylock Flange Nut (Qty 4)
- 14 1/2-13 Hex Nuts Zinc (Qty 1)
- 19 1/4-20 Hex Flange Nuts Zinc w/ (Qty 1)
- 22 Maverick HD Cooler cover (Qty 1)
- 40 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 50 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 7)
- 51 10-32 X 3/8 BS C/S 18-8 SS with Patch (Qty 4)
- 52 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 1)
- 61 3/8 x 1 Carriage Bolt (Qty 4)
- 71 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 4)
- 83 .630 ID X 1.122 OD X .142 THK (Qty 7)
- 88 5/16 USS Flat Washer Zinc (Qty 7)
- 89 5/16 Lock washer Zinc (Qty 1)
- 97 Split Collar (Qty 1)
- 110 Deck Height Cam Plunger (Qty 1)
- 113 2017 ZT Deck Height Bar Assy. (Qty 1)
- 119 5/16 x 3/4 Hex Washer Type F (Qty 3)
- 161 Ignition Key (Qty 1)
- 168 15" Fuel Line (Qty 1)
- 169 2019 Maverick Honda Fuel Line (Qty 1)
- 170 2014 ZT Fuel Line Assembly-37" (Qty 1)
- 184 ZT/Mav EPA Cannister Assy (Qty 1)
- 185 2019 Maverick Honda EPA Cannister Assembly (Qty 1)
- 186 2021 Maverick Right Side Tank (Qty 1)
- 187 2021 Maverick Left Side Tank (Qty 1)
- 196 Deck Height Dial (Qty 1)
- 197 ZT/MAV Control Panel Assy (Qty 1)
- 203 2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
- 208 Mav, HD 2x2 Folding ROPS (Qty 1)
- 213 2022 Maverick HD 726cc Backplate Cluster (Qty 1)
- 214 MAV HD/kohler747 bkplt decal (Qty 1)
- 224 Heat Shield (Fiberglass Adhesive) (Qty 1)
- 227 Honda Maverick HD 688cc Series Backplate Cluster (Qty 1)
- 228 MavHD Honda 779ccback plate decal (Qty 1)
- 235 2017 MZ/ZT/MAV/HD/Revolt Tach Wire Assy (Qty 1)
-
3#013-0005-00
1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
5#013-0080-00
.630 ID x 1.130 OD x .062 THK F/W Nylon Black
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
10#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
14#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
19#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-

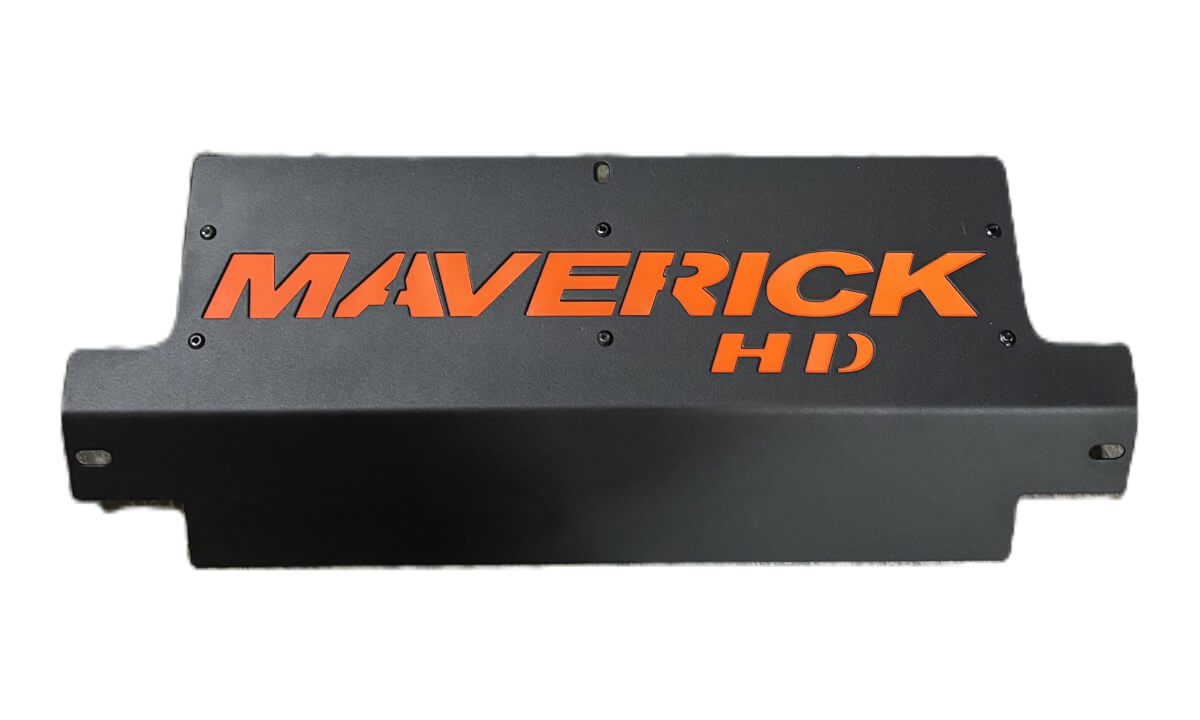

22#014-1001-00
Maverick HD Cooler cover
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
40#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
50#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 7Regular price $0.00 USDRegular priceUnit price per
-
51#018-2010-00
10-32 X 3/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
52#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
61#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
71#018-6054-00
1/2-13 X 3-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
83#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
88#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
89#019-8051-00
5/16 Lock washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
97#025-0002-00
Split Collar
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
110#028-0008-00
Deck Height Cam Plunger
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
113#028-0070-17
2017 ZT Deck Height Bar Assy.
Qty Used: 1Regular price $27.72 USDRegular priceUnit price per
-
119#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 3Regular price $0.89 USDRegular priceUnit price per
-
161#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
168#051-0001-00
15" Fuel Line
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
169#051-0054-00
2019 Maverick Honda Fuel Line
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
170#051-2014-00
2014 ZT Fuel Line Assembly-37"
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
184#067-0020-01
ZT/Mav EPA Cannister Assy
Qty Used: 1Regular price $53.01 USDRegular priceUnit price per
-
185#067-0020-63
2019 Maverick Honda EPA Cannister Assembly
Qty Used: 1Regular price $39.95 USDRegular priceUnit price per
-
186#067-2020-00
2021 Maverick Right Side Tank
Qty Used: 1Regular price $238.83 USDRegular priceUnit price per
-
187#067-2021-00
2021 Maverick Left Side Tank
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
196#077-9000-00
Deck Height Dial
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
197#079-3460-19
ZT/MAV Control Panel Assy
Qty Used: 1Regular price $144.63 USDRegular priceUnit price per
-
203#086-3050-19
2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-
208#089-0005-00
2016 Maverick 2x2 Folding ROPS
Qty Used: 1Regular price $396.75 USDRegular priceUnit price per
-
213#091-0378-22
2022 Maverick HD 726cc Backplate Cluster
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-
214#091-0380-18
MAV HD/kohler747 bkplt decal
Qty Used: 1Regular price $5.99 USDRegular priceUnit price per
-
224#091-4050-00
Heat Shield (Fiberglass Adhesive)
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
227#091-4071-00
Honda Maverick HD 688cc Series Backplate Cluster
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
228#091-4079-00
MavHD Honda 779ccback plate decal
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
235#216-1000-17
2017 MZ/ZT/MAV Tach Wire Assy
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
