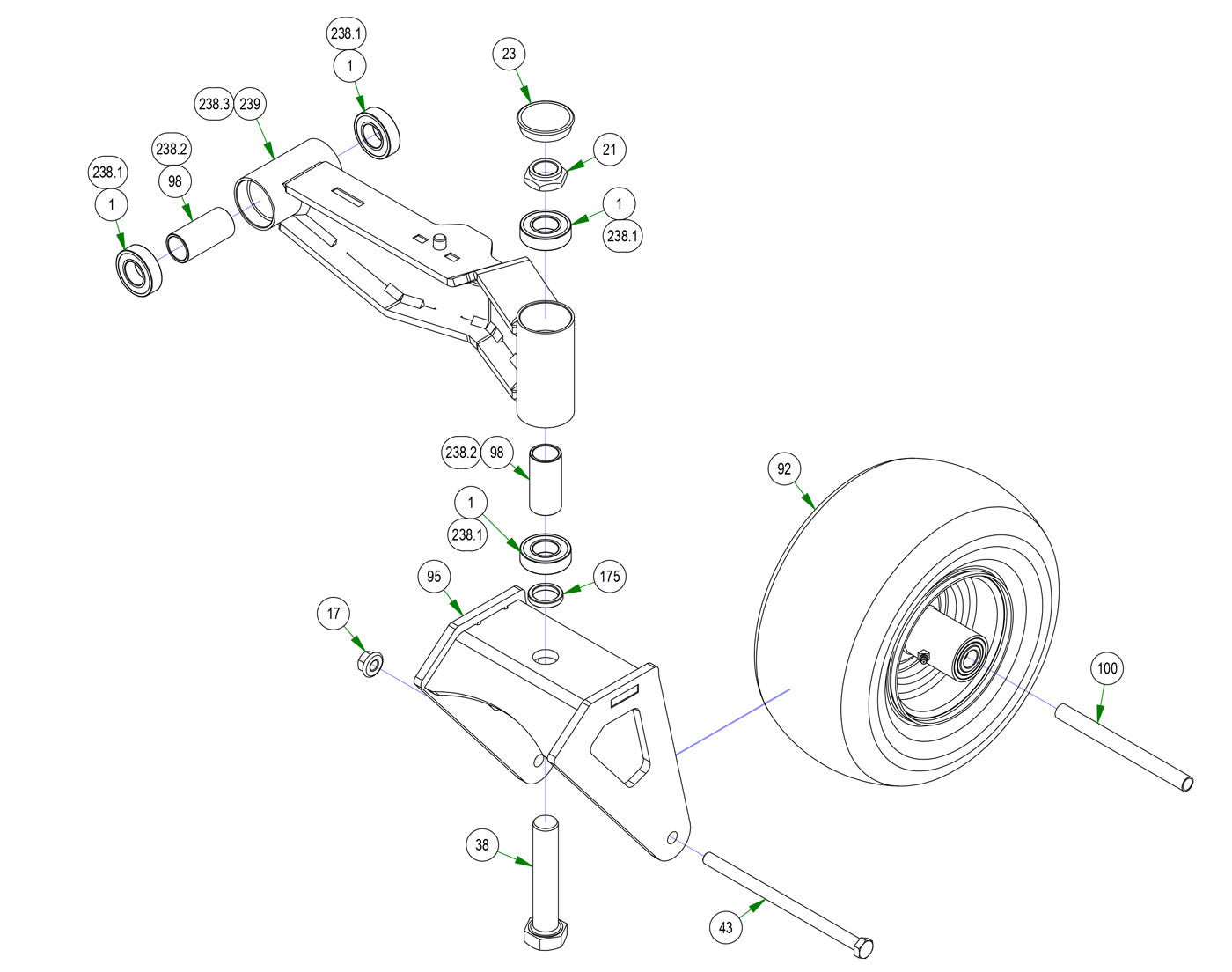

Front Fork
Parts Index
- 1 Caster Bearing (Qty 4)
- 17 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 21 1" Nylock Nut 1/2 Nut - Fine (Qty 1)
- 23 Bearing Retainer Cap (Qty 1)
- 38 1-14 X 5 BOLT GR 8 ZC YELLOW (Qty 1)
- 43 1/2-13x8 1/2 Gr5 Hex Bolt (Qty 1)
- 92 13x6.50-6 Black No Flat Assembly (Qty 1)
- 95 REV/MAV front fork (Qty 1)
- 98 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 100 Front Wheel Spanner-All Models (Qty 1)
- 175 Spacer ( Front Fork and Suspension ) (Qty 1)
- 238 2021 Maverick LH Front Suspenson Arm Assy (Qty 1)
- 238.1 Caster Bearing (Qty 4)
- 238.2 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 238.3 I-Beam Front Arm-LH--Painted (Qty 1)
- 239 42" Maverick HD Front Suspension Arm Assy LH (Qty 1)
-
1238.1#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
17#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
21#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
-
23#014-2025-00
Bearing Retainer Cap
Qty Used: 1Regular price $2.49 USDRegular priceUnit price per
-
38#018-0005-00
1-14 X 5 BOLT GR 8 ZC YELLOW
Qty Used: 1Regular price $5.89 USDRegular priceUnit price per
-
43#018-0040-00
1/2-13x8 1/2 Gr5 Hex Bolt
Qty Used: 1Regular price $14.59 USDRegular priceUnit price per
-
92#022-3088-00
13x6.50-6 Black No Flat Assembly
Qty Used: 1Regular price $145.99 USDRegular priceUnit price per
-
95#023-1010-00
REV/MAV front fork
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
98238.2#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
-
100#025-5202-00
Front Wheel Spanner-All Models
Qty Used: 1Regular price $9.49 USDRegular priceUnit price per
-
175#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
238#250-2801-21
2021 Maverick LH Front Suspenson Arm Assy
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
238.3#250-2801-00
I-Beam Front Arm-LH--Painted
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
-
239#250-2802-22
42" Maverick HD Front Suspension Arm Assy LH
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
