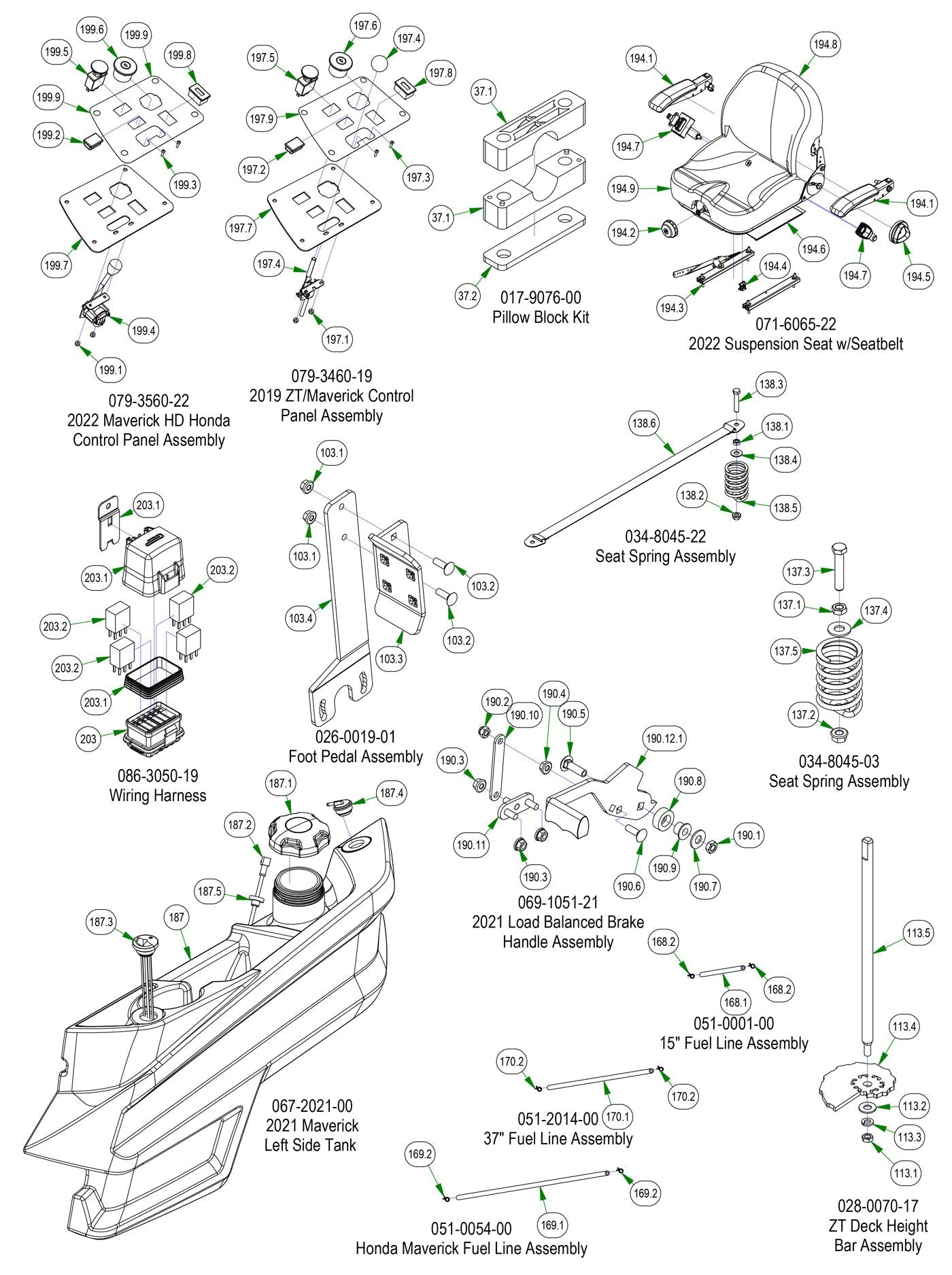

Frame Sub Assemblies - Seat, Control Panel, etc
Parts Index
- 37.1 2017 Magnum Pillow Block-Male (Qty 2)
- 37.2 2017 Magnum Pillow Block-Metal Plate (Qty 1)
- 37 Pillow Block (Qty 4)
- 103 2017 MZ Foot Pedal Assembly (Qty 1)
- 103.1 5/16-18 Nylon Flange Nut (Qty 2)
- 103.2 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 103.3 Foot Pedal--Orange (Qty 1)
- 103.4 2017 MZ/ZT Deck Pedal Lever--Orange (Qty 1)
- 113 2017 ZT Deck Height Bar Assy. (Qty 1)
- 113.1 3/8-24 Hex Nut Zinc (Qty 1)
- 113.2 3/8 USS Flat Washer Zinc (Qty 1)
- 113.3 3/8 Lockwasher Zinc (Qty 1)
- 113.4 Deck Height Cam Plate (Qty 1)
- 113.5 2017 Deck Height Dial Rod ZT (Qty 1)
- 137 2017 MZ/ZT Seat Spring Assembly (Qty 1)
- 137.1 3/8-16 Half Jam Nut (Qty 1)
- 137.2 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 137.3 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 137.4 3/8 USS Flat Washer Zinc (Qty 1)
- 137.5 Seat Spring (Qty 1)
- 138 2022 Mav/HD Seat Spring Assembly with Strap (Qty 1)
- 138.1 3/8-16 Half Jam Nut (Qty 1)
- 138.2 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 138.3 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 138.4 3/8 USS Flat Washer Zinc (Qty 1)
- 138.5 Seat Spring (Qty 1)
- 138.6 Seat Strap with Buckles (Qty 1)
- 168 15" Fuel Line (Qty 1)
- 168.1 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 168.2 1/4 Fuel Line Clamp (Qty 2)
- 169 2019 Maverick Honda Fuel Line (Qty 1)
- 169.1 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 169.2 1/4 Fuel Line Clamp (Qty 2)
- 170 2014 ZT Fuel Line Assembly-37" (Qty 1)
- 170.1 33" 1/4 Fuel Line No Clamp (Qty 2)
- 170.2 1/4 Fuel Line Clamp (Qty 1)
- 187 2021 Maverick Left Side Tank (Qty 1)
- 187.1 3.5" Tethered Fuel Cap (Qty 1)
- 187.2 Fuel Line Pickup Tube for ZT (Qty 1)
- 187.3 Fuel Gauge w/ Grommet (Qty 1)
- 187.4 Rollover Valve and Grommet New (Qty 1)
- 187.5 Grommet for ZT Elite Fuel Line (Qty 1)
- 190 Brake Handle Assembly For HD Down (Qty 1)
- 190.1 3/8-16 Centerlock Half Nut (Qty 1)
- 190.2 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap) (Qty 1)
- 190.3 5/16-18 Nylon Flange Nut (Qty 3)
- 190.4 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 190.5 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 190.6 5/16-18 X 1 Carriage Bolt Zinc (Qty 1)
- 190.7 3/8 USS Flat Washer Zinc (Qty 1)
- 190.8 Brake Lever Spacer (Qty 1)
- 190.9 Bronze Bushing SF-1220-8 (Qty 1)
- 190.10 Brake Cable Extension Plate (Qty 1)
- 190.11 Brake Load Balancer Weldment (Qty 1)
- 194 2022 Seats Inc Suspension Seat with seatbelt (Qty 1)
- 194.1 Arm Kit for 071-6065-00/071-6065-22 (Qty 1)
- 194.2 Weight Adjustment Knob for 071-6065-00/071-6065-22 (Qty 1)
- 194.3 SEAT RAILS for 071-6065-00/071-6065-22 (Qty 1)
- 194.4 Seat Switch for 071-6065-00/071-6065-22 (Qty 1)
- 194.5 Recliner Adjust Knob for 071-6065-00/71-6065-22 (Qty 1)
- 194.6.6 Bellows w/Hardware for 071-6065-22 (Qty 1)
- 194.7 OBSOLETE USE 071-6063-00 (Qty 1)
- 194.8 Back Cover for I3M - Recl - Logos for 071-6065-22 (Qty 1)
- 194.9 Cushion Cover Kit for I3M - Logo for 071-6065-22 (Qty 1)
- 197 ZT/MAV Control Panel Assy (Qty 1)
- 197.1 10-24 Nylon Insert Locknut Zin (Qty 2)
- 197.2 Light Plug (Qty 1)
- 197.3 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 197.4 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 197.5 PTO Engager-Switch for Blades (Qty 1)
- 197.6 Ignition Switch (Qty 1)
- 197.7 2014 MZ/ZT Control Panel--Orange (Qty 1)
- 197.8 Tachometer-N310-0100-1018 (Qty 1)
- 197.9 2022 control panel decal (Qty 1)
- 199.1 10-24 Nylon Insert Locknut Zin (Qty 2)
- 199.2 Light Plug (Qty 1)
- 199.3 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 199.4 Honda Drive By wire Throttle (Qty 1)
- 199.5 PTO Engager-Switch for Blades (Qty 1)
- 199.6 Ignition Switch (Qty 1)
- 199.7 2023 Control Panel--Orange (Qty 1)
- 199.8 Tachometer-N310-0100-1018 (Qty 1)
- 199.9 2023 Control Panel Decal (Qty 1)
- 203 2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
- 203.1 2019 Relay Cap Kit (Qty 1)
- 203.2 2019 Relay Terminal (Qty 4)
-
37.1#017-9077-00
2017 Magnum Pillow Block-Male
Qty Used: 2Regular price $19.89 USDRegular priceUnit price per
-
37.2#017-9079-00
2017 Magnum Pillow Block-Metal Plate
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
37#017-9076-00
Pillow Block
Qty Used: 4Regular price $21.88 USDRegular priceUnit price per
-
103#026-0019-01
2017 MZ Foot Pedal Assembly
Qty Used: 1Regular price $87.56 USDRegular priceUnit price per
-
103.1190.3#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
103.2190.6#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
103.3#026-0019-00
Foot Pedal--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
103.4#031-0500-00
2017 MZ/ZT Deck Pedal Lever--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
113#028-0070-17
2017 ZT Deck Height Bar Assy.
Qty Used: 1Regular price $27.72 USDRegular priceUnit price per
-
113.1#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
113.2137.4138.4190.7#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
113.3#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
113.4#026-1100-00
Deck Height Cam Plate
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
113.5#028-0014-00
2017 Deck Height Dial Rod ZT
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
137#034-8045-03
2017 MZ/ZT Seat Spring Assembly
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
137.1138.1#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
137.2138.2#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
137.3138.3#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
137.5138.5#034-8045-00
Seat Spring
Qty Used: 1Regular price $19.15 USDRegular priceUnit price per
-
138#034-8045-22
2022 Mav/HD seat spring assembly with strap
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
138.6#064-8083-00
Seat Strap with Buckles
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
168#051-0001-00
15" Fuel Line
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
168.1169.1#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
168.2169.2170.2#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 1Regular price $0.88 USDRegular priceUnit price per
-
169#051-0054-00
2019 Maverick Honda Fuel Line
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
170#051-2014-00
2014 ZT Fuel Line Assembly-37"
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
170.1#051-2014-01
33" 1/4 Fuel Line No Clamp
Qty Used: 2Regular price $17.99 USDRegular priceUnit price per
-
187#067-2021-00
2021 Maverick Left Side Tank
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
187.1#066-8083-00
3.5" Tethered Fuel Cap
Qty Used: 1Regular price $19.84 USDRegular priceUnit price per
-
187.2#067-0011-00
Fuel Line Pickup Tube for ZT
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
187.3#067-4090-00
Fuel Gauge w/ Grommet
Qty Used: 1Regular price $42.99 USDRegular priceUnit price per
-
187.4#067-6070-00
Rollover Valve and Grommet New
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
187.5#067-6080-00
Grommet for ZT Elite Fuel Line
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
190#069-1051-21
Load Balanced Brake Handle Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
190.1#013-0012-00
3/8-16 Centerlock Half Nut
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
190.2#013-8042-00
5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
190.4#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
190.5#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
190.8#025-0001-00
Brake Lever Spacer
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
190.9#032-5053-00
Bronze Bushing SF-1220-8
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
190.10#039-0170-00
Brake Cable Extension Plate
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
190.11#039-0171-00
Brake Load Balancer Weldment
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
194#071-6065-22
2022 Seats Inc Suspension Seat with seatbelt
Qty Used: 1Regular price $829.99 USDRegular priceUnit price per
-
194.1#071-6065-04
Arm Kit for 071-6065-00/071-6065-22
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
194.2#071-6065-05
Weight Adjustment Knob for 071-6065-00/071-6065-22
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
194.3#071-6065-06
SEAT RAILS for 071-6065-00/071-6065-22
Qty Used: 1Regular price $92.87 USDRegular priceUnit price per
-
194.4#071-6065-07
Seat Switch for 071-6065-00/071-6065-22
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
194.5#071-6065-10
Recliner Adjust Knob for 071-6065-00/71-6065-22
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
194.6.6#071-6065-13
Bellows w/Hardware for 071-6065-22
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
194.7#071-6065-14
OBSOLETE USE 071-6063-00
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
194.8#071-6065-15
Back Cover for I3M - Recl - Logos for 071-6065-22
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
194.9#071-6065-16
Cushion Cover Kit for I3M - Logo for 071-6065-22
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
197#079-3460-19
ZT/MAV Control Panel Assy
Qty Used: 1Regular price $144.63 USDRegular priceUnit price per
-
197.1199.1#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
197.2199.2#018-1040-00
Light Plug
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
197.3199.3#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
197.4#055-8020-00
ZT/Mav/MZ/Comp Outlaw Throttle-53\"
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
197.5199.5#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
197.6199.6#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
197.7#079-3460-00
2014 MZ/ZT Control Panel--Orange
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
197.8199.8#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
197.9#091-0338-22
2022 control panel decal
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
199.4#055-3002-00
Honda Drive By wire Throttle
Qty Used: 1Regular price $79.99 USDRegular priceUnit price per
-
199.7#079-3461-00
2023 Control Panel--Orange
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
199.9#091-4072-00
2023 Control Panel Decal
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
203#086-3050-19
2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-
203.1#086-1202-01
2019 Relay Cap Kit
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
203.2#086-1202-19
2019 Relay Terminal
Qty Used: 4Regular price $23.34 USDRegular priceUnit price per
