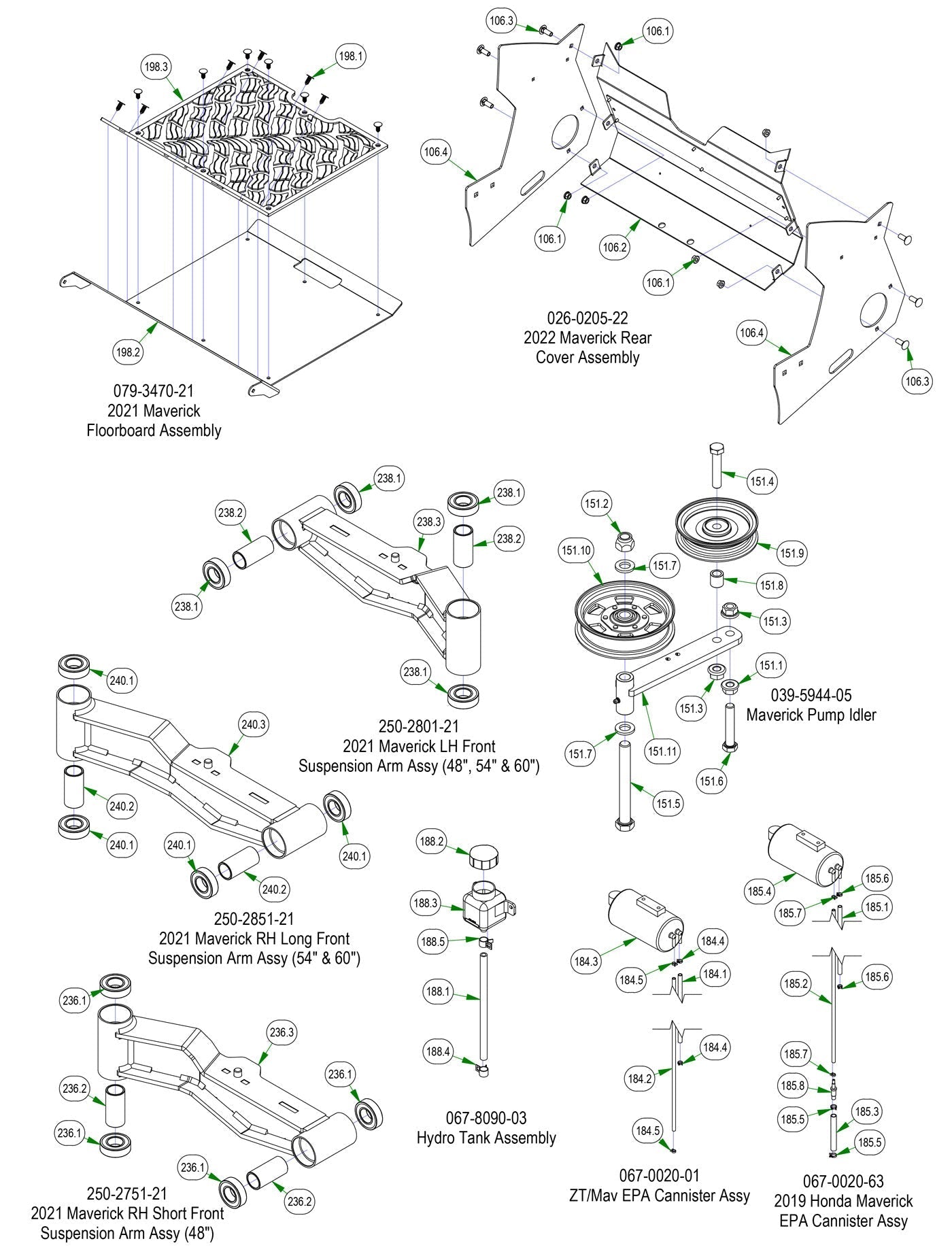

Frame Sub Assemblies - Rear Cover, Floorboard, etc
Parts Index
- 106 2022 Maverick Rear Cover Assembly (Qty 1)
- 106.1 5/16-18 Nylon Flange Nut (Qty 6)
- 106.2 2021 Maverick Rear Cover Assembly (Qty 1)
- 106.3 3/8 x 1 Carriage Bolt (Qty 6)
- 106.4 Rear Cover Side Plate--Orange (Qty 2)
- 151 Pump Idler Bracket Assy-Maverick (Qty 1)
- 151.1 1/2-13 Hex Fange Nuts Zinc w/ (Qty 1)
- 151.2 5/8-11 Nylon Insert Locknut Zi (Qty 1)
- 151.3 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 151.4 1/2-13 x 2 1/2 Hex Bolt Gr 5 (Qty 1)
- 151.5 5/8 x 5 1/2 Bolt (Qty 1)
- 151.6 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 151.7 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 151.8 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 151.9 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 151.10 2016-5 3/4 Idler Pulley-5/8 (Qty 1)
- 151.11 Idler Bracket (Qty 1)
- 184 ZT/Mav EPA Cannister Assy (Qty 1)
- 184.1 1/4 Vinyl 46" EPA Line (Qty 1)
- 184.2 3/16 Vinyl 55" EPA Line (Qty 1)
- 184.3 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 184.4 MZ Tank Hose Clamp 1/4 Vinyl (Qty 2)
- 184.5 3/16" Vinyl Hose Clamp (Qty 2)
- 185 2019 Maverick Honda EPA Cannister Assembly (Qty 1)
- 185.1 1/4 Vinyl 46" EPA Line (Qty 1)
- 185.2 3/16 Vinyl 55" EPA Line (Qty 1)
- 185.3 3/8" Black PVC Tubing (Qty 1)
- 185.4 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 185.5 5/8 Fuel Line Clamp (Qty 2)
- 185.6 MZ Tank Hose Clamp 1/4 Vinyl (Qty 2)
- 185.7 3/16" Vinyl Hose Clamp (Qty 2)
- 185.8 3/8 - 1/4 Nylon Reducer (Qty 1)
- 188 2017 ZT Hydro Tank Assembly (Qty 2)
- 188.1 2017 ZT/ Maverick Hydro Tank Hose (Qty 1)
- 188.2 ZT Hydraulic Tank Cap (Qty 1)
- 188.3 71328-Expansion Tank CZT/ZT (Qty 1)
- 188.4 3/8 Hose Clamp - CTB-16-STFS (Qty 1)
- 188.5 1/2 Hose Clamp (Qty 1)
- 198 2021 Maverick Floorboard Assembly (Qty 1)
- 198.1 Ratchet Fastener - Floorboard (Qty 12)
- 198.2 Maverick Floor Panel--Orange (Qty 1)
- 198.3 2021 Maverick Floor Mat W/ Reaper Tread (Qty 1)
- 236 2021 Maverick RH Arm Assembly (Qty 1)
- 236.1 Caster Bearing (Qty 4)
- 236.2 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 236.3 I-Beam Front Arm Short-RH--Painted (Qty 1)
- 238 2021 Maverick LH Front Suspenson Arm Assy (Qty 1)
- 238.1 Caster Bearing (Qty 4)
- 238.2 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 238.3 I-Beam Front Arm-LH--Painted (Qty 1)
- 240 2021 Maverick RH Long Front Suspension Arm Assy (Qty 1)
- 240.1 Caster Bearing (Qty 4)
- 240.2 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 240.3 I-Beam Front Arm Long-RH--Painted (Qty 1)
-
106#026-0205-22
2022 Maverick Rear Cover Assembly
Qty Used: 1Regular price $159.99 USDRegular priceUnit price per
-
106.1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
106.2#014-5300-00
2021 Maverick Rear Cover Assembly
Qty Used: 1Regular price $192.39 USDRegular priceUnit price per
-
106.3#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
106.4#026-0226-00
Rear Cover Side Plate--Orange
Qty Used: 2Regular price $39.99 USDRegular priceUnit price per
-
151#039-5944-05
Pump Idler Bracket Assy-Maverick
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
151.1#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
151.2#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
151.3#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
151.4#018-0015-00
1/2-13 x 2 1/2 Hex Bolt Gr 5
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
151.5#018-6016-00
5/8 x 5 1/2 Bolt
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
151.6#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
151.7#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
151.8#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
151.9#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
151.10#033-8000-00
2016-5 3/4 Idler Pulley-5/8
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
151.11#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
184#067-0020-01
ZT/Mav EPA Cannister Assy
Qty Used: 1Regular price $53.01 USDRegular priceUnit price per
-
184.1185.1#051-2020-01
1/4 Vinyl 46" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
184.2185.2#051-2025-02
3/16 Vinyl 55" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
184.3185.4#067-0020-00
Carbon Canister ZT,CZT,Outlaw
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
184.4185.6#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 2Regular price $1.45 USDRegular priceUnit price per
-
184.5185.7#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
185#067-0020-63
2019 Maverick Honda EPA Cannister Assembly
Qty Used: 1Regular price $39.95 USDRegular priceUnit price per
-
185.3#051-8065-00
3/8" Black PVC Tubing
Qty Used: 1Regular price $6.99 USDRegular priceUnit price per
-
185.5#072-8068-00
5/8 Fuel Line Clamp
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
185.8#073-8071-00
3/8 - 1/4 Nylon Reducer
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
188#067-8090-03
2017 ZT Hydro Tank Assembly
Qty Used: 2Regular price $39.68 USDRegular priceUnit price per
-
188.1#051-0016-00
2017 ZT/ Maverick Hydro Tank Hose
Qty Used: 1Regular price $8.74 USDRegular priceUnit price per
-
188.2#066-5050-00
ZT Hydraulic Tank Cap
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
188.3#067-8090-00
71328-Expansion Tank CZT/ZT
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
188.4#072-8065-00
3/8 Hose Clamp - CTB-16-STFS
Qty Used: 1Regular price $0.88 USDRegular priceUnit price per
-
188.5#072-8066-00
1/2 Hose Clamp
Qty Used: 1Regular price $0.88 USDRegular priceUnit price per
-
198#079-3470-21
2021 Maverick Floorboard Assembly
Qty Used: 1Regular price $129.99 USDRegular priceUnit price per
-
198.1#040-6080-00
Ratchet Fastener - Floorboard
Qty Used: 12Regular price $2.91 USDRegular priceUnit price per
-
198.2#079-3470-18
Maverick Floor Panel--Orange
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
198.3#081-4001-00
2021 Maverick Floor Mat W/ Reaper Tread
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
236#250-2751-21
2021 Maverick RH Arm Assembly
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
236.1238.1240.1#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
236.2238.2240.2#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
-
236.3#250-2751-00
I-Beam Front Arm Short-RH--Painted
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
238#250-2801-21
2021 Maverick LH Front Suspenson Arm Assy
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
238.3#250-2801-00
I-Beam Front Arm-LH--Painted
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
-
240#250-2851-21
2021 Maverick RH Long Front Suspension Arm Assy
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
240.3#250-2851-00
I-Beam Front Arm Long-RH--Painted
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
