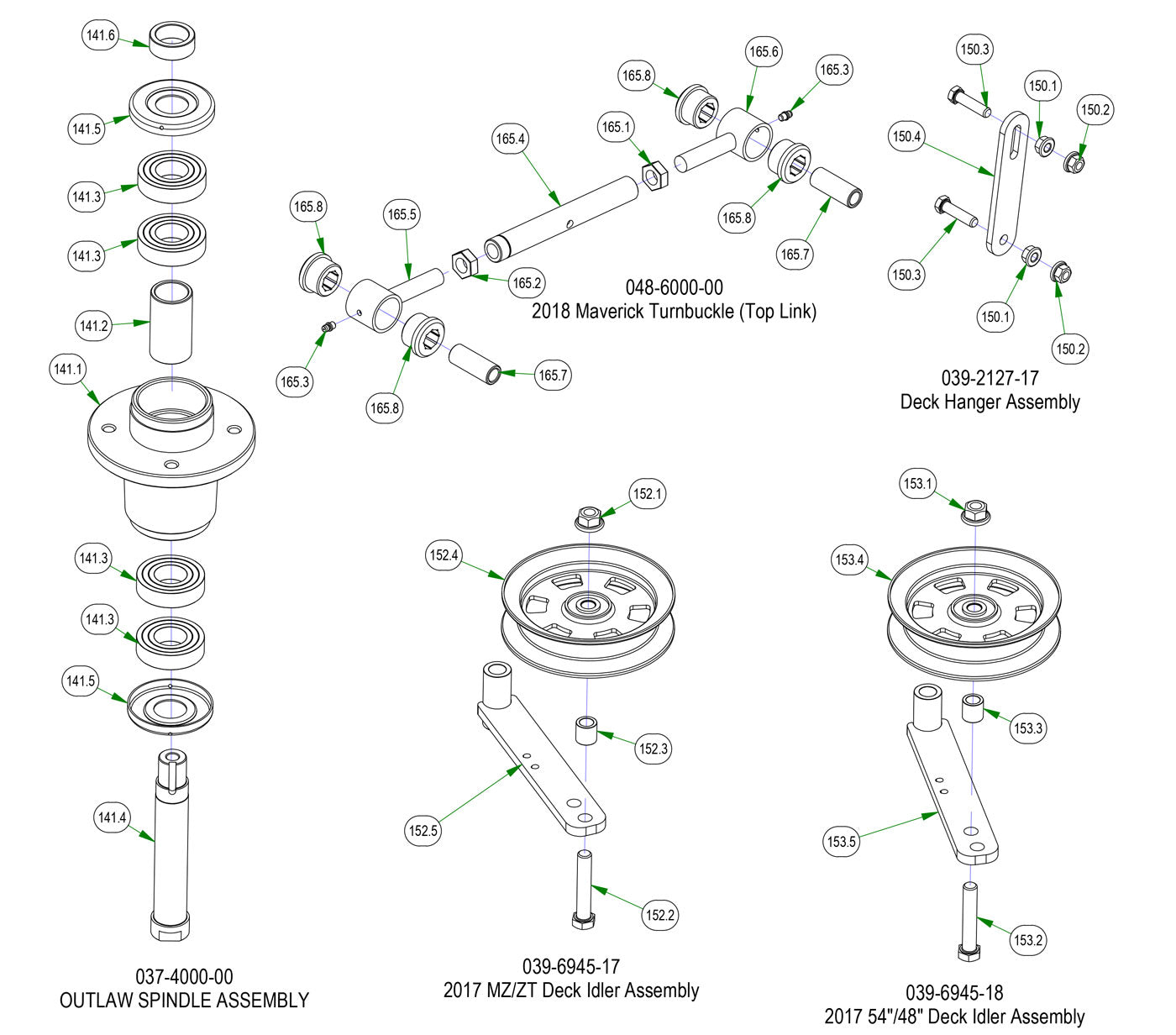

Deck Sub Assemblies - Spindle, Deck Hanger, etc
Parts Index
- 141 Commercial Cast Iron Spindle (Qty 3)
- 141.1 2017 Outlaw/XP/Diesel Cast Iron Spindle Housing (Qty 1)
- 141.2 2015 Spindle Spacer (Qty 1)
- 141.3 OBSOLETE USE 037-6029-00 (Qty 4)
- 141.4 Short Spindle Shaft for Locking Collar- No Grooved (Qty 1)
- 141.5 Dust Cover for 037-8000-00 - (Qty 2)
- 141.6 Collar Spacer - Top of Spindle (Qty 1)
- 150 MZ/ZT Deck Hanger Assembly (Qty 4)
- 150.1 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 150.2 3/8 Nylock Flange Nut (Qty 2)
- 150.3 3/8 x 1 1/2 Bolt (Qty 2)
- 152 2017 MZ/ZT Deck Idler Assembly (Qty 1)
- 152.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 152.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 152.3 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 152.4 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 152.5 Idler Bracket (Qty 1)
- 153 2017 54"/48" Deck Idler Assembly (Qty 1)
- 153.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 153.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 153.3 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 153.4 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 153.5 Idler Bracket (Qty 1)
- 165 Toplink (Qty 2)
- 165.1 Nut, 5/8-18 RH (Qty 1)
- 165.2 Nut, 5/8-18 LH (Qty 1)
- 165.3 1/4-28 Threaded Grease Fitting (Qty 2)
- 165.4 2018 Maverick Toplink Body (Qty 1)
- 165.5 2018 Maverick Topllink Bushing Retainer-Left Hand (Qty 1)
- 165.6 2018 Maverick Topllink Bushing Retainer-Right Hand (Qty 1)
- 165.7 2018 Maverick Topllink Bushing Sleeve (Qty 2)
- 165.8 2018 Maverick Topllink Bushing (Qty 4)
-
141#037-4000-00
Commercial Cast Iron Spindle
Qty Used: 3Regular price $291.91 USDRegular priceUnit price per
-
141.1#037-4000-01
2017 Outlaw/XP/Diesel Cast Iron Spindle Housing
Qty Used: 1Regular price $119.36 USDRegular priceUnit price per
-
141.2#037-4002-00
2015 Spindle Spacer
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
141.3#037-6023-00
OBSOLETE USE 037-6029-00
Qty Used: 4Regular price $39.79 USDRegular priceUnit price per
-
141.4#037-6026-00
Short Spindle Shaft w/Locking Collar- No Grooved
Qty Used: 1Regular price $78.29 USDRegular priceUnit price per
-
141.5#037-8002-00
Dust Cover for 037-8000-00
Qty Used: 2Regular price $10.99 USDRegular priceUnit price per
-
141.6#037-9050-00
Collar Spacer - Top of Spindle
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
150#039-2127-17
MZ/ZT Deck Hanger Assembly
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
150.1#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
150.2#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
150.3#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
152#039-6945-17
2017 MZ/ZT Deck Idler Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
152.1153.1#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
152.2153.2#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
152.3153.3#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
152.4153.4#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
152.5153.5#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
153#039-6945-18
2017 54"/48" Deck Idler Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
-
165.1#013-0019-00
Nut, 5/8-18 RH
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
165.2#013-0020-00
Nut, 5/8-18 LH
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
165.3#024-0001-00
1/4-28 Threaded Grease Fitting
Qty Used: 2Regular price $1.09 USDRegular priceUnit price per
-
165.4#048-6001-00
2018 Maverick Toplink Body
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
165.5#048-6002-00
2018 Maverick Topllink Bushing Retainer-Left Hand
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
165.6#048-6003-00
2018 Maverick Topllink Bushing Retainer-Right Hand
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
165.7#048-6004-00
2018 Maverick Topllink Bushing Sleeve
Qty Used: 2Regular price $10.55 USDRegular priceUnit price per
-
165.8#048-6005-00
2018 Maverick Topllink Bushing
Qty Used: 4Regular price $29.99 USDRegular priceUnit price per
