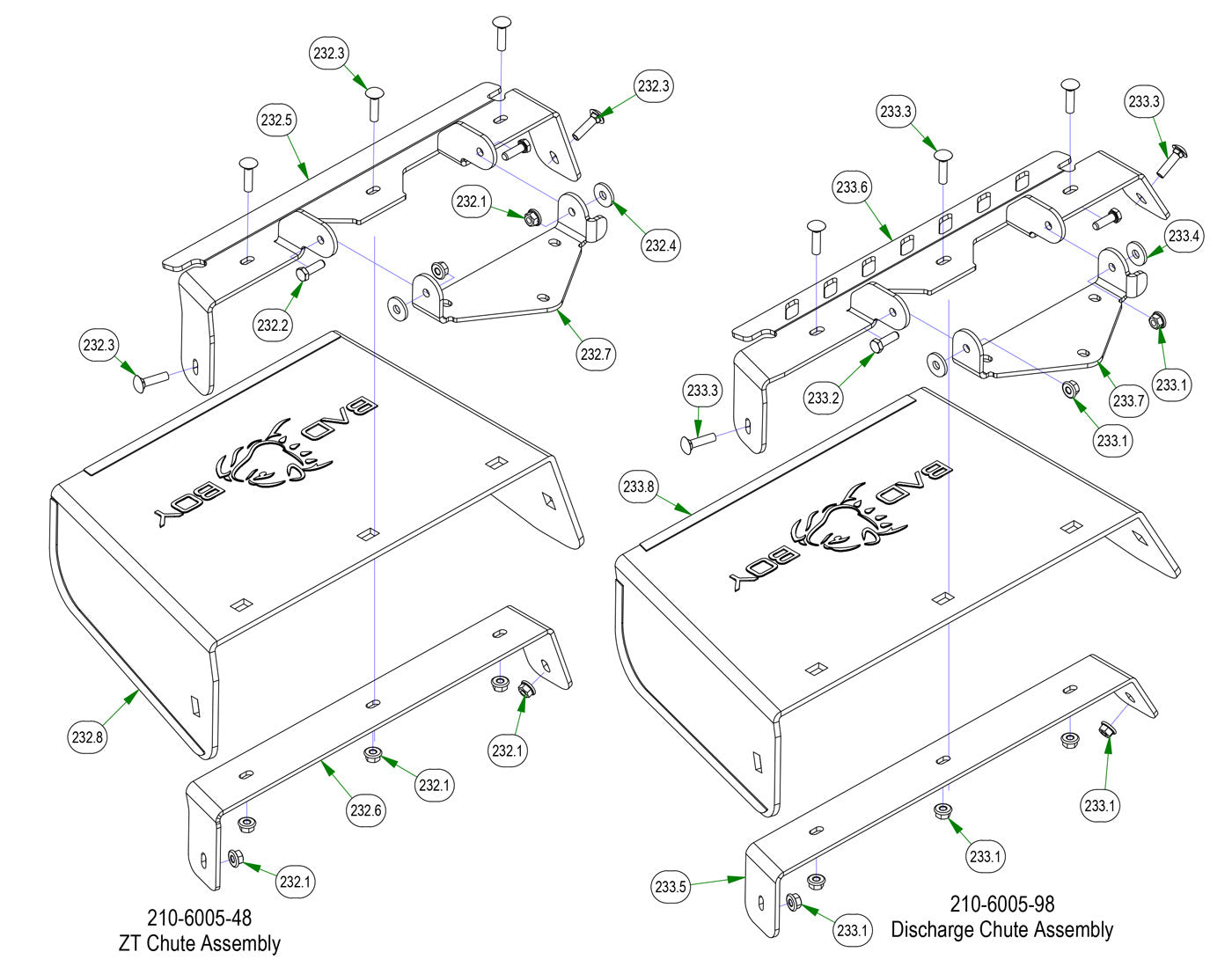

Deck Sub Assemblies - Chute Assemblies
Parts Index
- 232 2013 48" ZT/Chute Assembly (Qty 1)
- 232.1 5/16-18 Nylon Flange Nut (Qty 7)
- 232.2 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 232.3 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 232.4 .360 ID Plastic Washer (Qty 2)
- 232.5 48/52 Discharge Top Bracket (Qty 1)
- 232.6 48/52 Discharge Lower Bracket (Qty 1)
- 232.7 Discharge Chute Hanger-Deck (Qty 1)
- 232.8 Discharge Chute (Rubber Component) (Qty 1)
- 233 2017 54"/60" ZT/Mav Chute Assembly (Qty 1)
- 233.1 5/16-18 Nylon Flange Nut (Qty 7)
- 233.2 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 233.3 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 233.4 .360 ID Plastic Washer (Qty 2)
- 233.5 60 Discharge Lower Bracket (Qty 1)
- 233.6 60 Discharge Chute Upper (Qty 1)
- 233.7 Discharge Chute Hanger-Deck (Qty 1)
- 233.8 Discharge Chute (Rubber Component) (Qty 1)
-
232#210-6005-48
2013 48" ZT/Chute Assembly
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
232.1233.1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
232.2233.2#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
232.3233.3#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
232.4233.4#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
232.5#039-4870-00
48/52 Discharge Top Bracket
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
-
232.6#039-4871-00
48/52 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
232.7233.7#206-6017-00
Discharge Chute Hanger-Deck
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
232.8233.8#210-6005-00
Discharge Chute (Rubber Component)
Qty Used: 1Regular price $55.99 USDRegular priceUnit price per
-
233#210-6005-98
2017 54"/60" ZT/Mav Chute Assembly
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
233.5#039-4863-00
60 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
233.6#039-4864-00
60 Discharge Chute Upper
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
