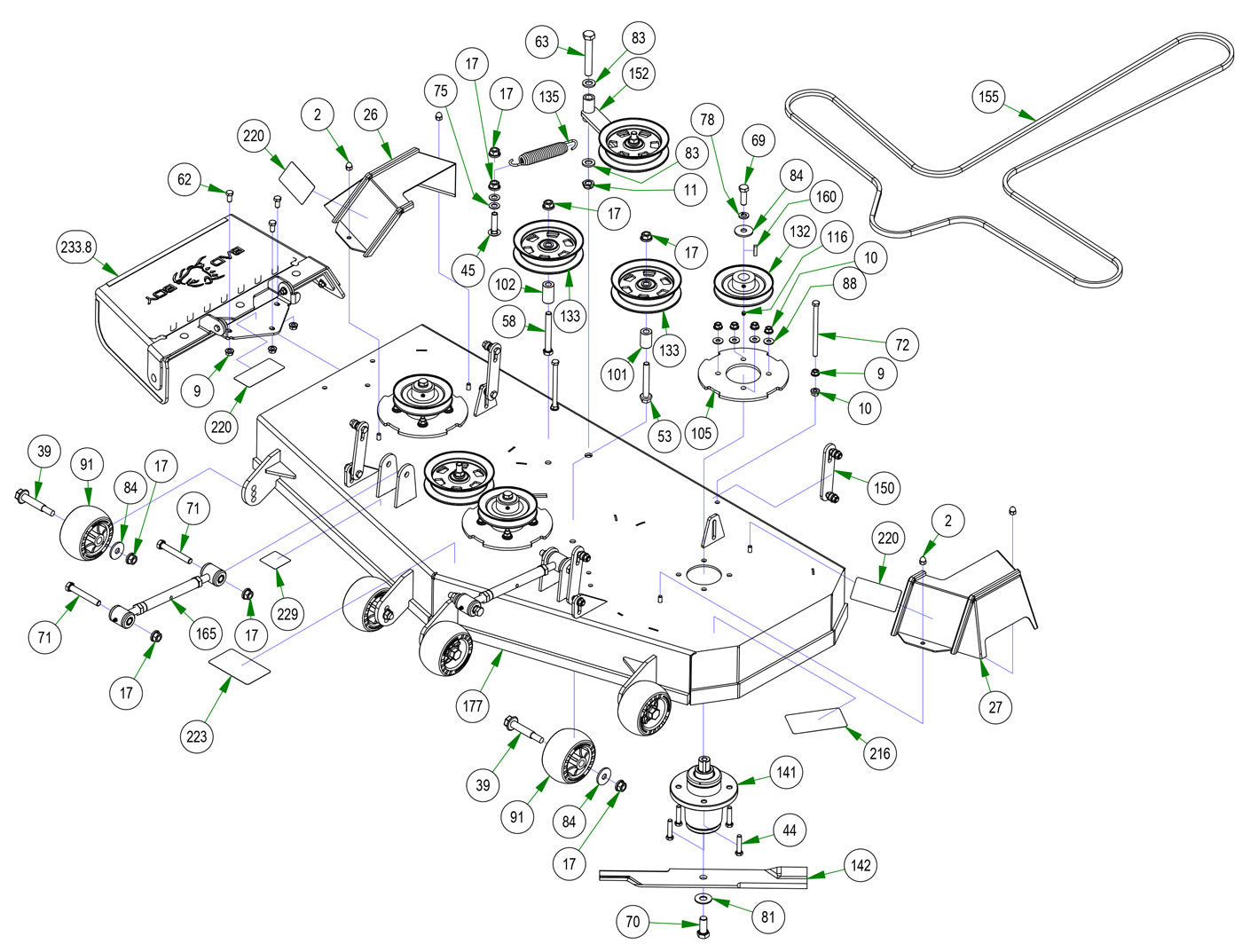

54" Deck Assembly
Parts Index
- 2 Acorn Nut-Pulley Cover (Qty 4)
- 9 3/8-16 Hex Flange Nuts Zinc w/ (Qty 5)
- 10 3/8 Nylock Flange Nut (Qty 14)
- 11 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 17 1/2-13 Nylon Insert Flange Nut (Qty 15)
- 26 RH Pulley Cover 54"/60" (Qty 1)
- 27 LH Pulley Cover 54"/60" (Qty 1)
- 39 Deck Wheel Bolt (Qty 6)
- 44 3/8-16 x 1-3/4 Hex C/S (GR 5) ZC (Qty 12)
- 45 1/2 x 2 Carriage Bolt (Qty 1)
- 53 1/2 x 3 1/2 Flange Bolt - Gr 8 (Qty 2)
- 58 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 1)
- 62 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 3)
- 63 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 69 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 1)
- 70 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
- 71 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 4)
- 72 3/8-16 x 5 1/2 Hex Bolt - Grade 5 (Qty 2)
- 75 .517 Square Hole Round Washer (Qty 2)
- 78 1/2 Lockwasher Zinc (Qty 3)
- 81 5/8 Flat Washer (Qty 3)
- 83 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 84 1/2 Belleville Washer #K2000-G (Qty 9)
- 88 5/16 USS Flat Washer Zinc (Qty 12)
- 91 Deck Wheel (Qty 6)
- 101 .502 ID X 1.000 0D X 1.500 (Qty 2)
- 102 .502 ID X 1.00 OD X 1.750 (Qty 1)
- 105 Deck Spindle Support Plate 60"--Orange (Qty 3)
- 116 5/16-24 x 1/4 Set Screw (Qty 3)
- 132 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (Qty 3)
- 133 5 3/4 Idler Pulley-Capitol (Qty 3)
- 135 2015 Deck Idler Spring (Qty 1)
- 141 Commercial Cast Iron Spindle (Qty 3)
- 142 54" Blade for Avenger/ZT/Mav/Outlaw/Revolt (Qty 3)
- 150 MZ/ZT Deck Hanger Assembly (Qty 4)
- 152 2017 MZ/ZT Deck Idler Assembly (Qty 1)
- 155 54" 2017&Up MZ/ Magnum/ZT/Mav/20 Avenger Deck Belt (Qty 1)
- 160 1/4 x 1 Square Key (Qty 3)
- 165 Toplink (Qty 2)
- 177 54" ZT/Maverick Deck (Qty 1)
- 216 2018 54" Deck Decal (Qty 1)
- 220 Danger Decal-Spindle/Discharge (Qty 3)
- 223 Deck Belt Route Decal (Qty 1)
- 229 Rubber Bushing Turnbuckle Patent Decal (Qty 1)
- 233.8 2017 54"/60" ZT/Mav Chute Assembly (Qty 1)
-
2#013-0004-00
Acorn Nut-Pulley Cover
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
9#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 5Regular price $1.49 USDRegular priceUnit price per
-
10#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 14Regular price $1.49 USDRegular priceUnit price per
-
11#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
17#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 15Regular price $1.39 USDRegular priceUnit price per
-
26#014-5020-00
2021 Maverick 54"/60" RH Pulley Cover
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
27#014-5021-00
2021 Maverick 54"/60" LH Pulley Cover
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
39#018-0010-00
Deck Wheel Bolt - 2011 Outlaw
Qty Used: 6Regular price $5.89 USDRegular priceUnit price per
-
44#018-0075-00
3/8-16 x 1-3/4 Hex C/S (GR 5) ZC
Qty Used: 12Regular price $2.99 USDRegular priceUnit price per
-
45#018-1050-00
1/2 x 2 Carriage Bolt
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
53#018-2018-00
1/2 x 3 1/2 Flange Bolt - Gr 8
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
58#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
62#018-5250-00
3/8-16 X 3/4 GR 5 Hex Bolts
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
63#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
69#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
70#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 3Regular price $2.49 USDRegular priceUnit price per
-
71#018-6054-00
1/2-13 X 3-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
72#018-7060-00
3/8-16 x 5 1/2 Hex Bolt - Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
75#019-0007-00
.517 Square Hole Round Washer
Qty Used: 2Regular price $1.09 USDRegular priceUnit price per
-
78#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
81#019-5038-00
5/8 Flat Washer
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
83#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
84#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 9Regular price $4.69 USDRegular priceUnit price per
-
88#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
91#022-1000-00
Deck Wheel
Qty Used: 6Regular price $15.99 USDRegular priceUnit price per
-
101#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
102#025-5339-00
.502 ID X 1.00 OD X 1.750
Qty Used: 1Regular price $4.87 USDRegular priceUnit price per
-
105#026-0025-00
Deck Spindle Support Plate 60\"--Orange
Qty Used: 3Regular price $13.26 USDRegular priceUnit price per
-
116#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 3Regular price $1.59 USDRegular priceUnit price per
-
132#033-6006-00
5.25" Deck Pulley-54" ZT/Maverick/Outlaw
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
133#033-7201-25
5 3/4 Idler Pulley-Capitol
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
135#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
141#037-4000-00
Commercial Cast Iron Spindle
Qty Used: 3Regular price $291.91 USDRegular priceUnit price per
-
142#038-0001-00
54\" Blade for Avenger/ZT/Mav/Outlaw/Revolt
Qty Used: 3Regular price $21.16 USDRegular priceUnit price per
-
150#039-2127-17
MZ/ZT Deck Hanger Assembly
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
152#039-6945-17
2017 MZ/ZT Deck Idler Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
155#041-1560-00
54" 2017&Up MZ/ Magnum/ZT/Mav/20 Avenger Deck Belt
Qty Used: 1Regular price $82.99 USDRegular priceUnit price per
-
160#042-6030-00
1/4 x 1 Square Key
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
-
177#060-5417-00
54" ZT/Maverick Deck
Qty Used: 1Regular price $875.76 USDRegular priceUnit price per
-
216#091-0904-18
2018 54" Deck Decal
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
220#091-3012-00
Danger Decal-Spindle/Discharge
Qty Used: 3Regular price $2.91 USDRegular priceUnit price per
-
223#091-3309-00
Deck Belt Route Decal
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
229#091-8001-00
Rubber Bushing Turnbuckle Patent Decal
Qty Used: 1Regular price $0.73 USDRegular priceUnit price per
-
233.8#210-6005-98
2017 54"/60" ZT/Mav Chute Assembly
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
