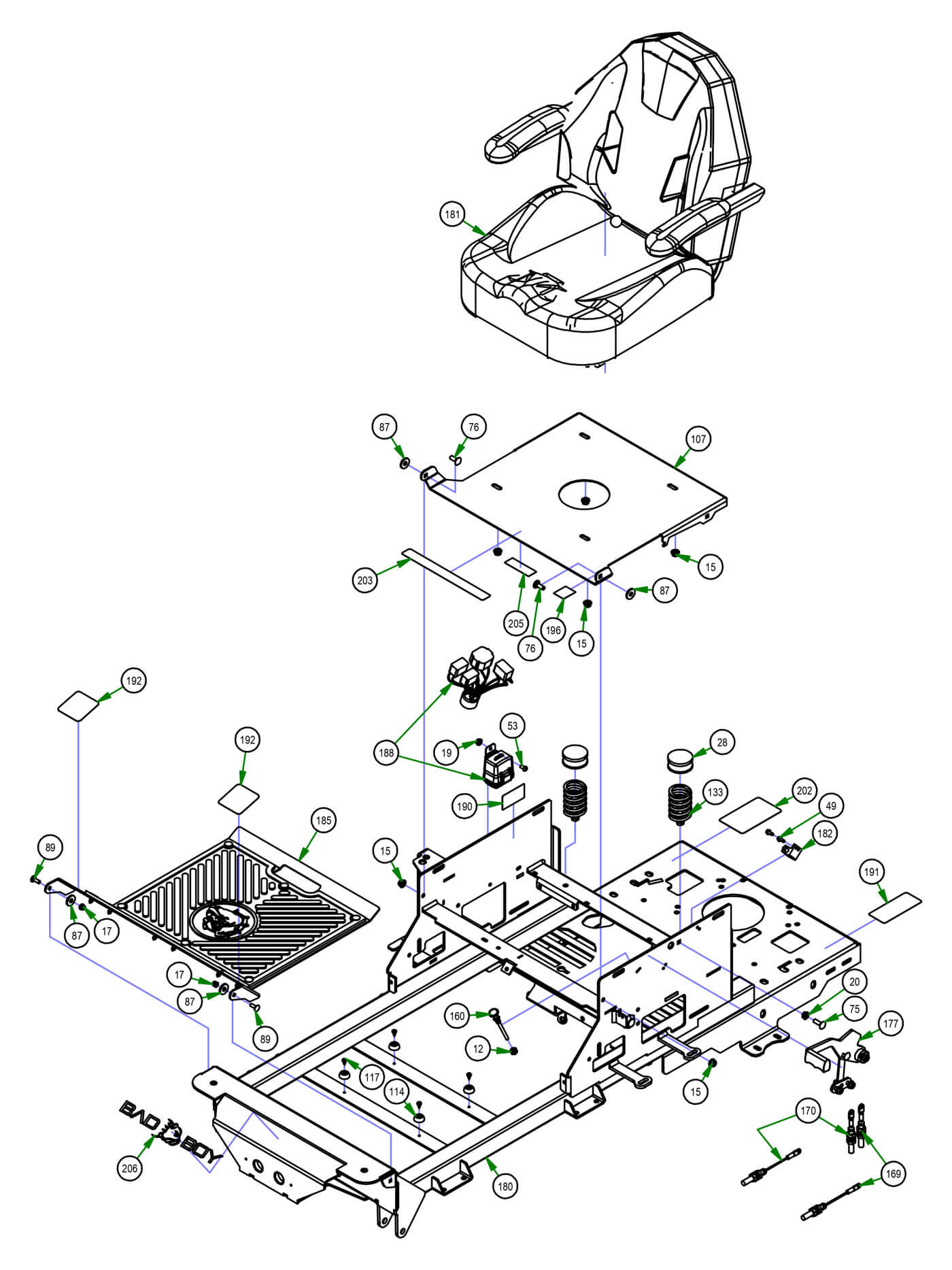

Upper Frame
Parts Index
- 12 3/8-24 Hex Nut Zinc (Qty 1)
- 15 5/16-18 Nylon Flange Nut (Qty 6)
- 17 1/4-20 Nylon Insert Locknut Zi (Qty 2)
- 19 1/4-20 Hex Flange Nuts Zinc w/ (Qty 1)
- 20 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 28 Seat Spring Cap Cover (Qty 2)
- 49 12-24 x 1/2 HWH Bolt (Qty 2)
- 53 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 1)
- 75 5/16-18 X 1 Carriage Bolt Zinc (Qty 1)
- 76 5/16 x 7/8 Carriage Bolt (Qty 2)
- 87 .360 ID Plastic Washer (Qty 4)
- 89 1/4 x 3/4 Carriage Bolt (Qty 2)
- 107 Seat Plate 2016--Orange (Qty 1)
- 114 Button Bumper (Qty 4)
- 117 10 X 1/2 Pan Phil a T/S Zinc (Qty 4)
- 133 Seat Spring (Qty 2)
- 160 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 169 2021 Load Balanced Brake Cable 1 (Qty 1)
- 170 2021 Load Balanced Brake Cable 2 (Qty 1)
- 177 Brake Handle Assembly For HD Down (Qty 1)
- 181 2021 ZT Elite Seat (Qty 1)
- 182 Safety Switch (Qty 1)
- 185 2021 ZT ELITE Floorboard Assembly (Qty 1)
- 186 2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
- 191 EPA Build Date Punch Label (Qty 1)
- 192 ZT, Mav, HD Steering Control Decals (Qty 1)
- 196 MZ, ZT, Aven, Mav, HD Brake Decal (Qty 1)
- 202 Pump Belt Route Decal-Pump Pla (Qty 1)
- 203 Long Seat Plate Warning Decal (Qty 1)
- 205 NOT FOR SALE IN CALIFORNIA (Qty 1)
- 206 Flying Bulldog Front Bumper Decal (Qty 1)
-
12#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
15#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
17#013-8073-00
1/4-20 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
19#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
20#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
28#014-8047-00
Seat Spring Cap Cover
Qty Used: 2Regular price $8.12 USDRegular priceUnit price per
-
49#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
53#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
75#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
76#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
87#019-6042-00
.360 ID Plastic Washer
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
89#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
107#026-1016-00
Seat Plate 2016--Orange
Qty Used: 1Regular price $102.11 USDRegular priceUnit price per
-
114#029-4010-00
Button Bumper
Qty Used: 4Regular price $1.31 USDRegular priceUnit price per
-
117#030-3050-00
10 X 1/2 Pan Phil a T/S Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
133#034-8045-00
Seat Spring
Qty Used: 2Regular price $19.15 USDRegular priceUnit price per
-
160#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
169#064-3050-21
2021 Load Balanced Brake Cable 1
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
170#064-3051-21
2021 Load Balanced Brake Cable 2
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
177#069-1051-21
Load Balanced Brake Handle Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
181#071-2101-00
2021 ZT Elite Seat
Qty Used: 1Regular price $595.79 USDRegular priceUnit price per
-
182#077-8073-00
Safety Switch
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
185#079-3470-20
2021 ZT ELITE Floorboard Assembly
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
186#086-3050-19
2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-
191#091-0015-00
EPA Build Date Punch Label
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
-
192#091-0021-00
2018 Maverick Steering Control Decals
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
196#091-0339-18
2018 MZ/Magnum/ZT/MAV/Comp Out Brake Decal
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
202#091-3017-00
Pump Belt Route Decal-Pump Pla
Qty Used: 1Regular price $4.47 USDRegular priceUnit price per
-
203#091-3150-00
Outlaw Warning Decal
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
205#091-4062-00
NOT FOR SALE IN CALIFORNIA
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
206#091-4063-00
Flying Bulldog Front Bumper Decal
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
