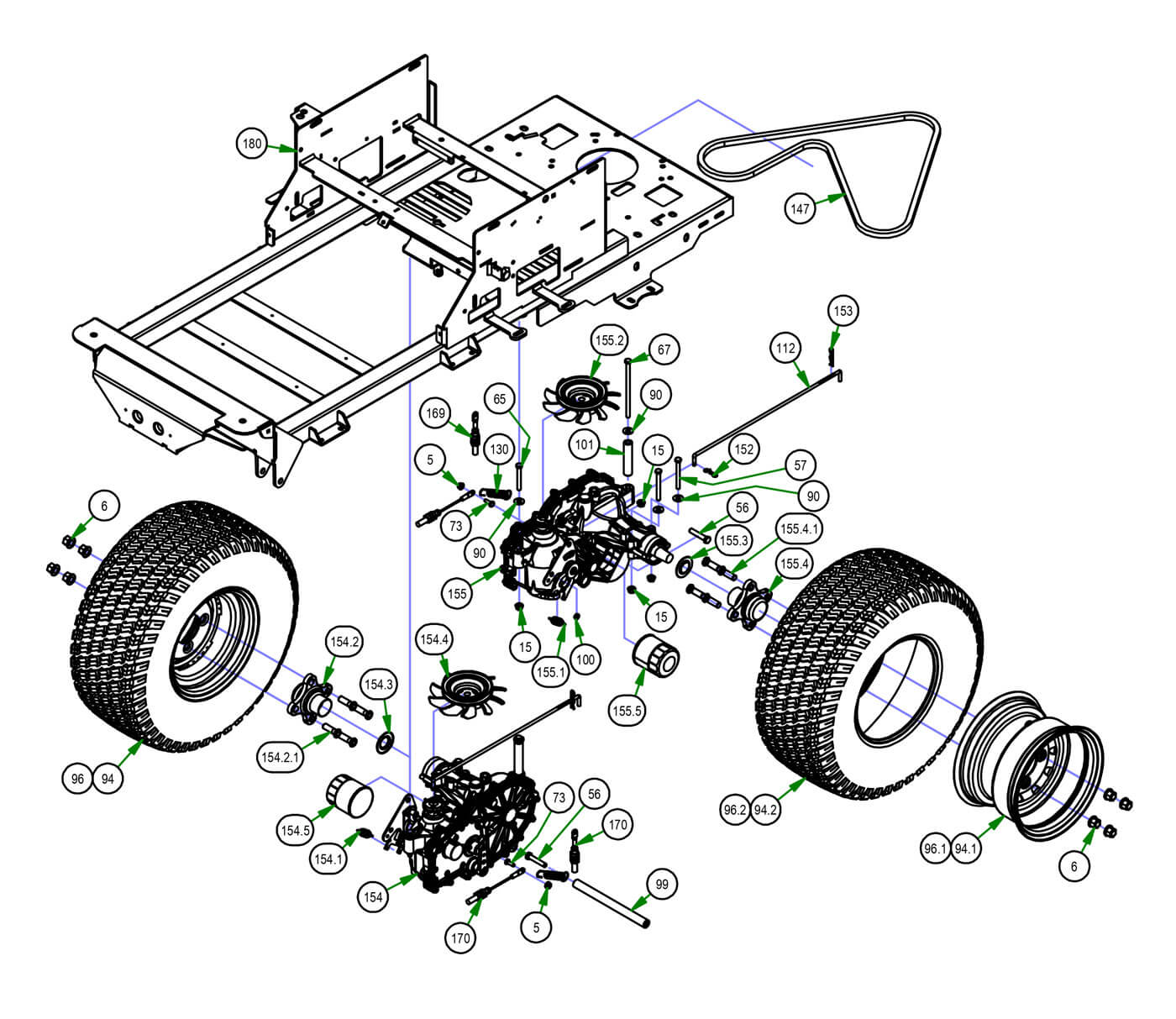

Transaxle
Parts Index
- 5 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 6 Acorn Lug Nut (Qty 8)
- 15 5/16-18 Nylon Flange Nut (Qty 8)
- 56 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 2)
- 57 5/16-18 X 3 GR 5 Hex Bolt Zinc (Qty 4)
- 65 5/16 x 2 1/2 Bolt (Qty 2)
- 67 5/16-18 X 6 GR 5 Hex Bolt Zinc (Qty 2)
- 73 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 90 5/16 USS Flat Washer Zinc (Qty 8)
- 94 2017 ZT Black Assembly 22x11-10 (Qty 2)
- 94.1 2017 ZT Black Wheel (Qty 1)
- 94.2 2014 ZT Tire Only 22x11-10 (Qty 1)
- 96 2017 ZT Black Assembly 22x10-10 (Qty 2)
- 96.1 2017 48 ZT 10" Black Wheel (Qty 1)
- 96.2 2017 22x10-10 Tire for the 48" ZT (Qty 1)
- 99 2017 Transaxle Spacer-ZT (Qty 1)
- 100 Drive Arm Transaxle Spacer (Qty 2)
- 101 2017 Transaxle Spacer (Qty 2)
- 112 Neutral Rod (Qty 2)
- 130 Brake Return Spring (Qty 2)
- 147 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 152 Bow Pin (Qty 2)
- 153 Neutral Rod Clip (Qty 2)
- 154 2021 RH 3100 Transaxle (Qty 1)
- 154.1 Gold Transaxle Spring (Qty 1)
- 154.2 ZT Transaxle Wheel Hub (Qty 1)
- 154.2.1 Transaxle Wheel Studs/ Drum Brake Studs (Qty 4)
- 154.5 ZT Hydraulic Filter (Qty 1)
- 154.3 2021 ZT/Maverick Transaxle Seal Kit (ZT-2800) (Qty 1)
- 154.4 2021 ZT/Maverick Transaxle Fan/Pulley Kit (Qty 1)
- 155 2021 LH 3100 Transaxle (Qty 1)
- 155.1 Gold Transaxle Spring (Qty 1)
- 155.2 2021 ZT/Maverick Transaxle Fan/Pulley Kit (Qty 1)
- 155.3 2021 ZT/Maverick Transaxle Seal Kit (ZT-2800) (Qty 1)
- 155.5 ZT Hydraulic Filter (Qty 1)
- 155.4 ZT Transaxle Wheel Hub (Qty 1)
- 155.4.1 Transaxle Wheel Studs/ Drum Brake Studs (Qty 4)
- 169 2021 Load Balanced Brake Cable 1 (Qty 1)
- 170 2021 Load Balanced Brake Cable 2 (Qty 1)
-
5#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
6#013-3000-00
Acorn Lug Nut
Qty Used: 8Regular price $2.99 USDRegular priceUnit price per
-
15#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
56#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
57#018-4701-00
5/16-18 X 3 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
65#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
67#018-5355-00
5/16-18 X 6 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $2.19 USDRegular priceUnit price per
-
73#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
90#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
94#022-2015-00
2017 ZT Black Assembly 22x11-10
Qty Used: 2Regular price $290.99 USDRegular priceUnit price per
-
94.1#022-2015-50
2017 ZT Black Wheel
Qty Used: 1Regular price $104.99 USDRegular priceUnit price per
-
94.2#022-2020-00
2014 ZT Tire Only 22x11-10
Qty Used: 1Regular price $159.99 USDRegular priceUnit price per
-
96#022-2018-00
2017 ZT Black Assembly 22x10-10
Qty Used: 2Regular price $290.99 USDRegular priceUnit price per
-
96.1#022-2019-17
2017 48 ZT 10" Black Wheel
Qty Used: 1Regular price $92.99 USDRegular priceUnit price per
-
96.2#022-2024-17
2017 22x10-10 Tire for the 48" ZT
Qty Used: 1Regular price $145.99 USDRegular priceUnit price per
-
99#025-0017-00
2017 Transaxle Spacer-ZT
Qty Used: 1Regular price $13.12 USDRegular priceUnit price per
-
100#025-0036-00
Drive Arm Transaxle Spacer
Qty Used: 2Regular price $4.99 USDRegular priceUnit price per
-
101#025-0070-00
2017 Transaxle Spacer
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
112#028-0070-00
Neutral Rod
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
-
130#034-1026-00
Brake Return Spring
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
147#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
-
153#044-2008-00
Neutral Rod Clip
Qty Used: 2Regular price $1.31 USDRegular priceUnit price per
-
154#050-2095-02
2021 RH 3100 Transaxle
Qty Used: 1Regular price $729.99 USDRegular priceUnit price per
-
154.1155.1#034-9080-00
Gold Transaxle Spring
Qty Used: 1Regular price $13.92 USDRegular priceUnit price per
-
154.2155.4#050-2076-00
ZT Transaxle Wheel Hub
Qty Used: 1Regular price $84.64 USDRegular priceUnit price per
-
154.2.1155.4.1#050-2012-00
Transaxle Wheel Studs/ Drum Brake Studs
Qty Used: 4Regular price $5.10 USDRegular priceUnit price per
-
154.5155.5#063-1050-00
ZT Hydraulic Filter
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
154.3155.3#050-8010-00
2021 ZT/Maverick Transaxle Seal Kit (ZT-2800)
Qty Used: 1Regular price $109.46 USDRegular priceUnit price per
-
154.4155.2#050-2070-00
2021 ZT/Maverick Transaxle Fan/Pulley Kit
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
155#050-2096-02
2021 LH 3100 Transaxle
Qty Used: 1Regular price $729.99 USDRegular priceUnit price per
-
169#064-3050-21
2021 Load Balanced Brake Cable 1
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
170#064-3051-21
2021 Load Balanced Brake Cable 2
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
