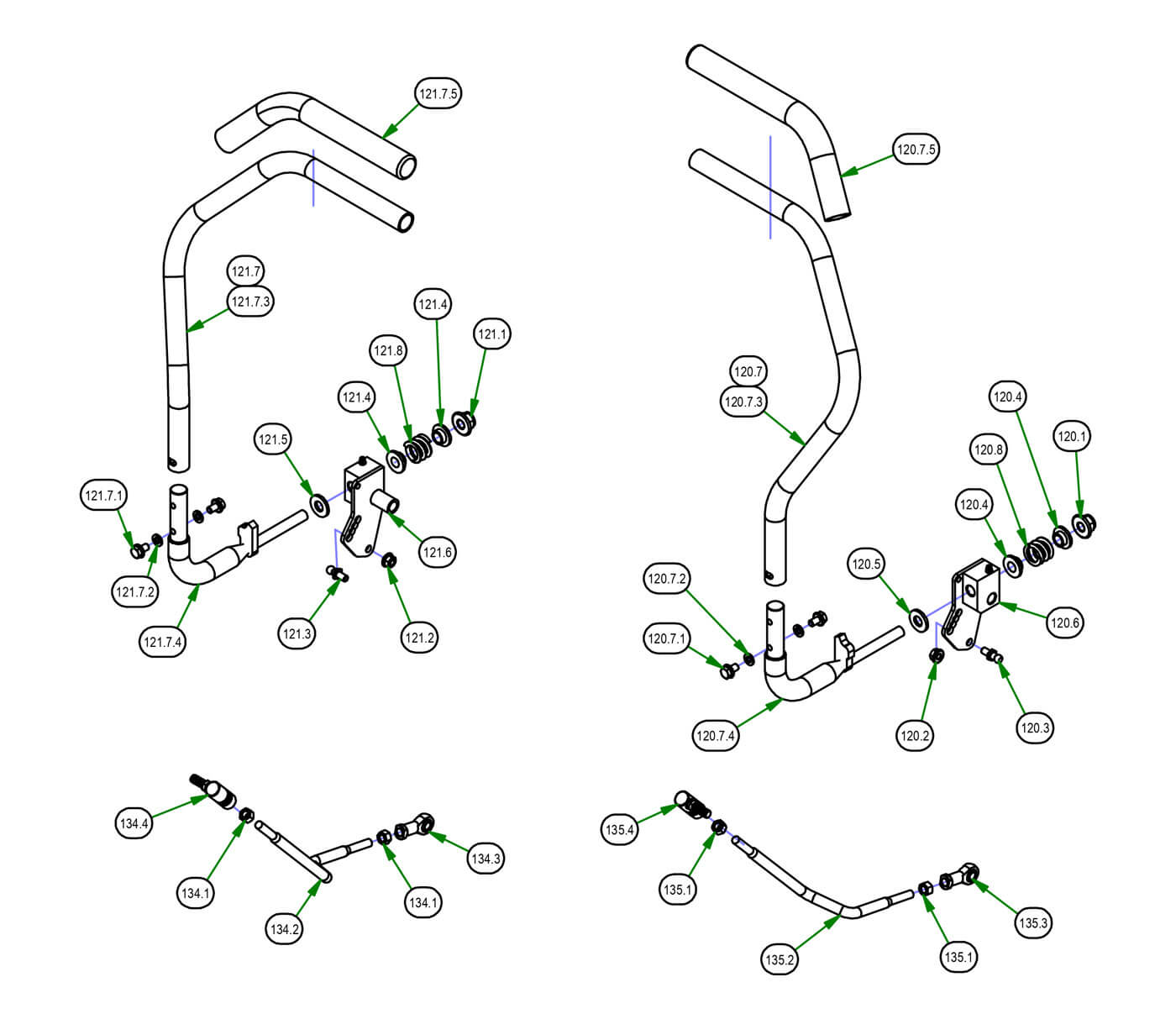

Steering Arms & Push Rods
Parts Index
- 120 2017 ZT LH Arm Assembly (Qty 1)
- 120.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 120.2 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 120.3 10mm Damper Ball Stud- (Qty 1)
- 120.4 .515 ID Plastic Shoulder Washer (Qty 2)
- 120.5 .505 ID X 1 OD X .128 THK Washer (Qty 1)
- 120.6 Drive Lever Housing LH (Qty 1)
- 120.7 Orange ZT Steering Arm Left- (Qty 1)
- 120.7.1 5/16-18 x 1/2 HWH Bolt-Steering Arm (Qty 2)
- 120.7.2 5/16 Lock washer Zinc (Qty 2)
- 120.7.3 Steering Arm Left - 5" Tubing (Qty 1)
- 120.7.4 Steering Arm Elbow- Left (Qty 1)
- 120.7.5 Rubber Steering Arm (Qty 1)
- 120.8 Drive Lever Housing Spring (Qty 1)
- 121 2017 ZT RH Arm Assembly (Qty 1)
- 121.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 121.2 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 121.3 10mm Damper Ball Stud- (Qty 1)
- 121.4 .515 ID Plastic Shoulder Washer (Qty 2)
- 121.5 .505 ID X 1 OD X .128 THK Washer (Qty 1)
- 121.6 Drive Lever Housing RH (Qty 1)
- 121.7 Orange ZT Steering Arm-Right (Qty 1)
- 121.7.1 5/16-18 x 1/2 HWH Bolt-Steering Arm (Qty 2)
- 121.7.2 5/16 Lock washer Zinc (Qty 2)
- 121.7.3 Steering Arm Right - 5" Tubing (Qty 1)
- 121.7.4 Steering Arm Elbow - Right (Qty 1)
- 121.7.5 Rubber Steering Arm (Qty 1)
- 121.8 Drive Lever Housing Spring (Qty 1)
- 134 Push Rod RH (Assembly) (Qty 1)
- 134.1 3/8-24 Hex Nut Zinc (Qty 2)
- 134.2 Push Rod RH (Assembly) (Qty 1)
- 134.3 Spherical Rod End (Qty 1)
- 134.4 Quick Release Ball Joint (Qty 1)
- 135 Push Rod LH (Assembly) (Qty 1)
- 135.1 3/8-24 Hex Nut Zinc (Qty 2)
- 135.2 Push Rod RH (Assembly) (Qty 1)
- 135.3 Spherical Rod End (Qty 1)
- 135.4 Quick Release Ball Joint (Qty 1)
-
120#031-0017-01
2017 ZT LH Arm Assembly
Qty Used: 1Regular price $145.99 USDRegular priceUnit price per
-
120.1121.1#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
120.2121.2#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
120.3121.3#018-2050-00
10mm Damper Ball Stud-
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
120.4121.4#019-8027-00
.515 ID Plastic Shoulder Washer
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
120.5121.5#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
120.6#031-0017-98
Drive Lever Housing LH
Qty Used: 1Regular price $29.19 USDRegular priceUnit price per
-
120.7#031-8850-70
Black ZT Steering Arm Left-
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
-
120.7.1121.7.1#018-2020-00
5/16-18 x 1/2 HWH Bolt-Steering Arm
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
120.7.2121.7.2#019-8051-00
5/16 Lock washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
120.7.3#031-8850-02
Steering Arm Left - 5" Tubing
Qty Used: 1Regular price $79.55 USDRegular priceUnit price per
-
120.7.4#031-9020-70
Steering Arm Elbow- Left
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
120.7.5121.7.5#069-4007-00
Rubber Steering Arm
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
120.8121.8#034-8025-00
Drive Lever Housing Spring
Qty Used: 1Regular price $3.70 USDRegular priceUnit price per
-
121#031-0018-01
2017 ZT RH Arm Assembly
Qty Used: 1Regular price $145.99 USDRegular priceUnit price per
-
121.6#031-0018-98
Drive Lever Housing RH
Qty Used: 1Regular price $21.89 USDRegular priceUnit price per
-
121.7#031-8851-70
Black ZT Steering Arm-Right
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
-
121.7.3#031-8851-02
Steering Arm Right - 5" Tubing
Qty Used: 1Regular price $79.55 USDRegular priceUnit price per
-
121.7.4#031-9025-70
Steering Arm Elbow - Right
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
134134.2135.2#035-5450-00
Push Rod RH (Assembly)
Qty Used: 1Regular price $31.73 USDRegular priceUnit price per
-
134.1135.1#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
134.3135.3#048-3000-00
Spherical Rod End-Outlaw Only
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
134.4135.4#099-2009-00
Quick Release Ball Joint
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
135#035-5451-00
Push Rod LH (Assembly)
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
