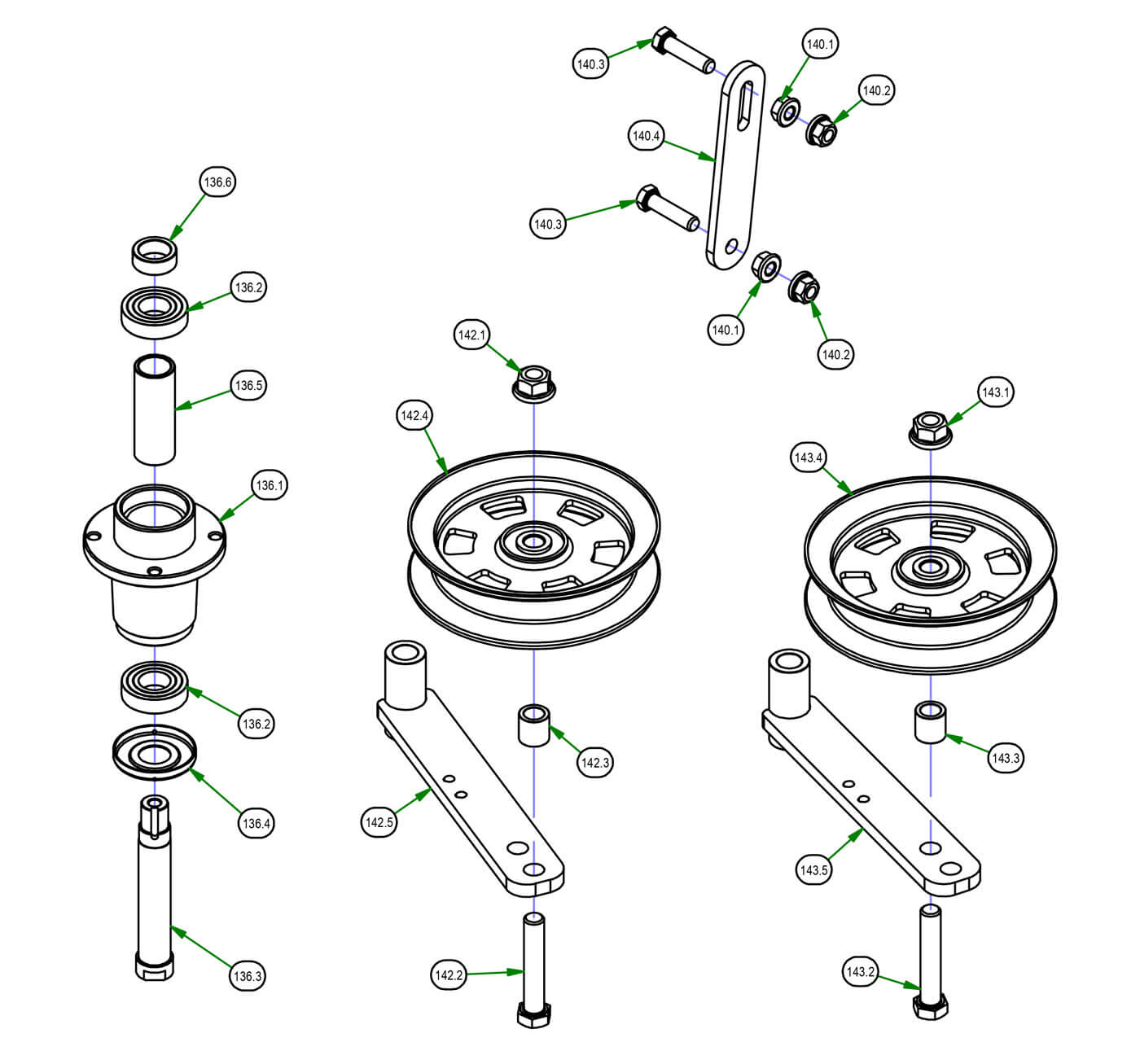

Spindle, Deck Idler, Deck Hanger
Parts Index
- 136 Short Shaft Spindle Complete with Hardware (Qty 9)
- 136.1 Aluminum Spindle Housing-2010 (Qty 1)
- 136.2 OBSOLETE USE 037-6029-00 (Qty 2)
- 136.3 Short Spindle Shaft for Locking Collar- No Grooved (Qty 1)
- 136.4 Dust Cover for 037-8000-00 - (Qty 1)
- 136.5 Tube Spacer for Spindle Shaft (Qty 1)
- 136.6 Collar Spacer - Top of Spindle (Qty 1)
- 140 MZ/ZT Deck Hanger Assembly (Qty 4)
- 140.1 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 140.2 3/8 Nylock Flange Nut (Qty 2)
- 140.3 3/8 x 1 1/2 Bolt (Qty 2)
- 140.4 Deck hanger for 039-2127-17 (Qty 1)
- 142 2017 MZ/ZT Deck Idler Assembly (Qty 1)
- 142.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 142.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 142.3 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 142.4 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 142.5 Idler Bracket (Qty 1)
- 143 2017 54"/48" Deck Idler Assembly (Qty 2)
- 143.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 143.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 143.3 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 143.4 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 143.5 Idler Bracket (Qty 1)
-
136#037-6015-00
Short Shaft Spindle Use 018-6017-00 Blade Bolt
Qty Used: 9Regular price $199.99 USDRegular priceUnit price per
-
136.1#037-6017-50
Aluminum Spindle Housing-2010
Qty Used: 1Regular price $119.36 USDRegular priceUnit price per
-
136.2#037-6023-00
OBSOLETE USE 037-6029-00
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-
136.3#037-6026-00
Short Spindle Shaft w/Locking Collar- No Grooved
Qty Used: 1Regular price $78.29 USDRegular priceUnit price per
-
136.4#037-8002-00
Dust Cover for 037-8000-00
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
136.5#037-8050-00
Tube Spacer for Spindle Shaft
Qty Used: 1Regular price $7.90 USDRegular priceUnit price per
-
136.6#037-9050-00
Collar Spacer - Top of Spindle
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
140#039-2127-17
MZ/ZT Deck Hanger Assembly
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
140.1#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
140.2#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
140.3#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
140.4#039-2127-00
OBSOLETE USE 039-2127-17
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
142#039-6945-17
2017 MZ/ZT Deck Idler Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
142.1143.1#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
142.2143.2#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
142.3143.3#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
142.4143.4#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
142.5143.5#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
143#039-6945-18
2017 54"/48" Deck Idler Assembly
Qty Used: 2Regular price $66.33 USDRegular priceUnit price per
