Pump Idler, Floorboard, Suspension Arms

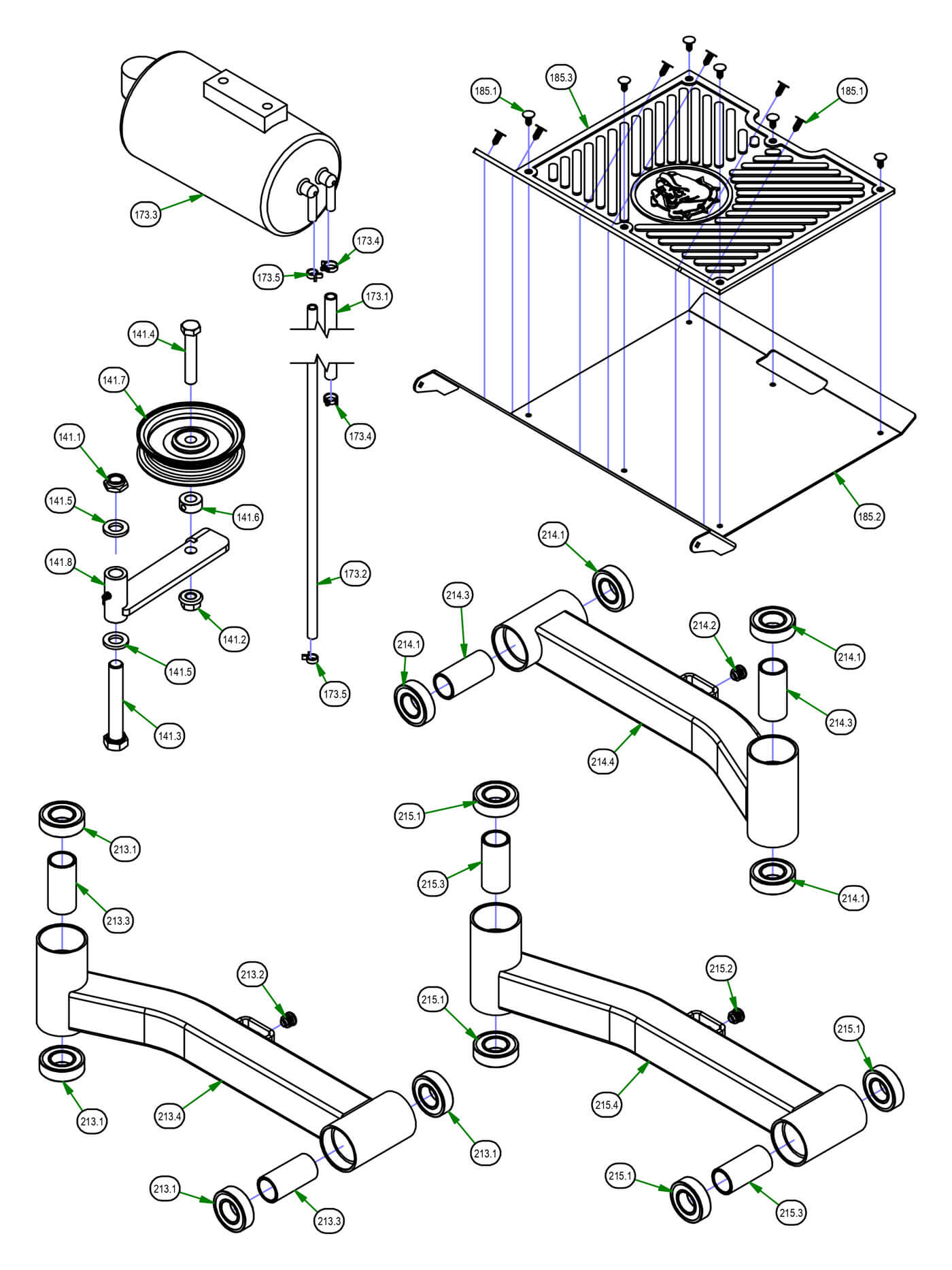

Parts Index
- 141 Pump Idler Bracket Assembly-ZT, MZ, Aven, Raider (Qty 1)
- 141.1 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 141.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 141.3 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 141.4 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 141.5 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 141.6 1/2 Set Collar w/set collar (Qty 1)
- 141.7 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 141.8 Idler Bracket (Qty 1)
- 173 ZT/Mav EPA Cannister Assy (Qty 1)
- 173.1 1/4 Vinyl 46" EPA Line (Qty 1)
- 173.2 3/16 Vinyl 55" EPA Line (Qty 1)
- 173.3 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 173.4 MZ Tank Hose Clamp 1/4 Vinyl (Qty 2)
- 173.5 3/16" Vinyl Hose Clamp (Qty 2)
- 185 2021 ZT ELITE Floorboard Assembly (Qty 1)
- 185.1 Ratchet Fastener - Floorboard (Qty 12)
- 185.2 Maverick Floor Panel--Orange (Qty 1)
- 185.3 Mat (Floor) (Qty 1)
- 213 2021 ZT Suspension Arm Assembly Short Right (Qty 1)
- 213.1 Caster Bearing (Qty 4)
- 213.2 5/8 Round Insert - Deck (Qty 1)
- 213.3 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 214 2021 ZT Suspension Arm Assembly Left (Qty 1)
- 214.1 Caster Bearing (Qty 4)
- 214.2 5/8 Round Insert - Deck (Qty 1)
- 214.3 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 215 2021 ZT Suspension Arm Assembly Long Right (Qty 1)
- 215.1 Caster Bearing (Qty 4)
- 215.2 5/8 Round Insert - Deck (Qty 1)
- 215.3 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
-
141#039-5944-01
Pump Idler Bracket Assembly-ZT/MZ/Compact Outlaw
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
141.1#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
141.2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
141.3#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
141.4#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
141.5#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
141.6#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
141.7#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
141.8#039-5944-00
Idler Bracket
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
173#067-0020-01
ZT/Mav EPA Cannister Assy
Qty Used: 1Regular price $53.01 USDRegular priceUnit price per
-
173.1#051-2020-01
1/4 Vinyl 46" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
173.2#051-2025-02
3/16 Vinyl 55" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
173.3#067-0020-00
Carbon Canister ZT,CZT,Outlaw
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
173.4#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 2Regular price $1.45 USDRegular priceUnit price per
-
173.5#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
185#079-3470-20
2021 ZT ELITE Floorboard Assembly
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
185.1#040-6080-00
Ratchet Fastener - Floorboard
Qty Used: 12Regular price $2.91 USDRegular priceUnit price per
-
185.2#079-3470-18
Maverick Floor Panel--Orange
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
185.3#081-4000-00
Mat (Floor)
Qty Used: 1Regular price $58.39 USDRegular priceUnit price per
-
213#250-1751-21
2021 ZT Suspension Arm Assembly Short Right
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
213.1214.1215.1#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
213.2214.2215.2#014-3010-00
5/8 Round Insert - Deck
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
213.3214.3215.3#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
-
214#250-1801-21
2021 ZT Suspension Arm Assembly Left
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
215#250-1851-21
2021 ZT Suspension Arm Assembly Long Right
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
