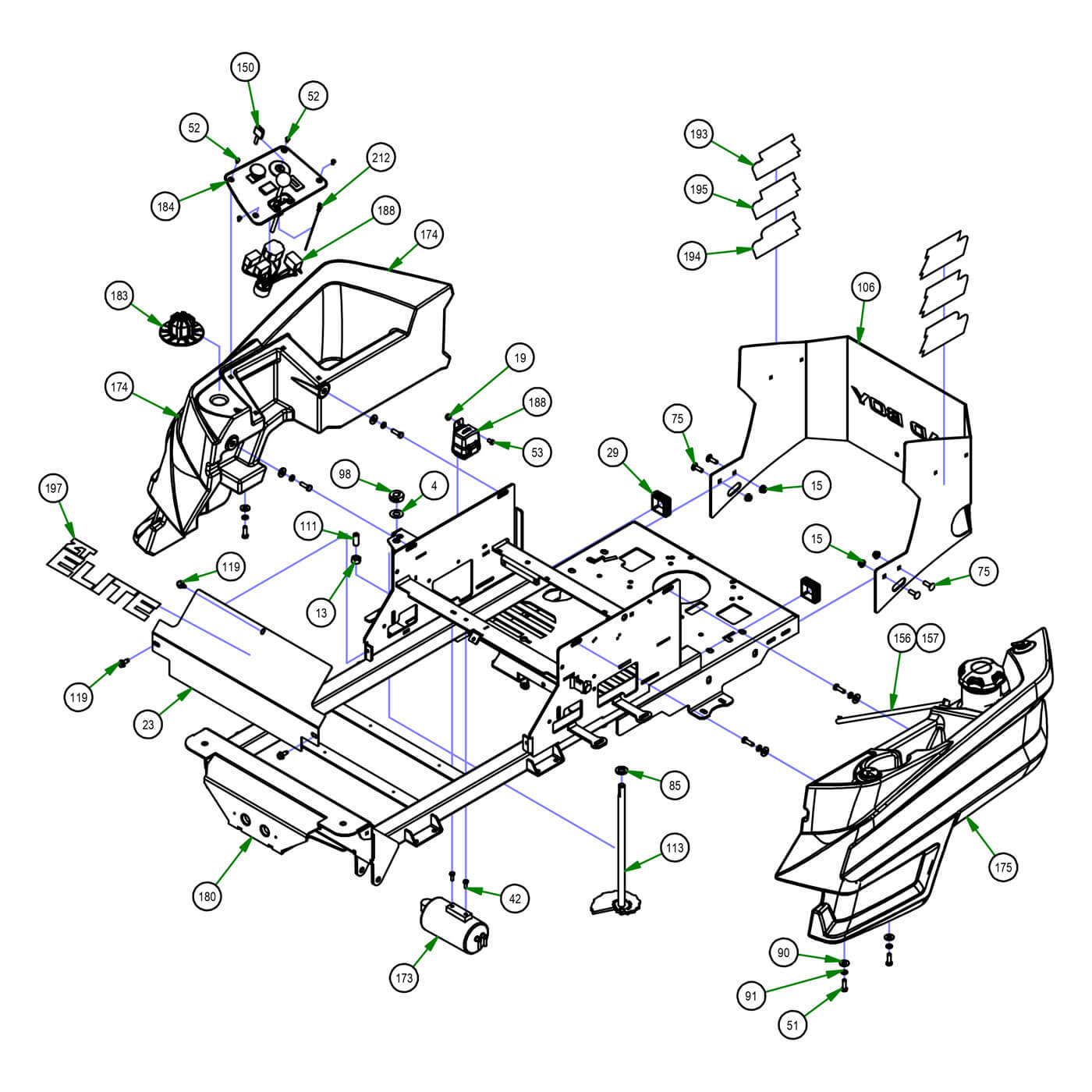

Fuel Tank & Rear Cover
Parts Index
- 4 .630 ID x 1.130 OD x .062 THK F/W Nylon Black (Qty 1)
- 13 1/2-13 Hex Nuts Zinc (Qty 1)
- 15 5/16-18 Nylon Flange Nut (Qty 4)
- 19 1/4-20 Hex Flange Nuts Zinc w/ (Qty 1)
- 23 OBSOLETE USE 014-3320-23 (Qty 1)
- 29 Frame Plug 2x2 (Qty 2)
- 42 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 51 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 7)
- 52 10-32 X 3/8 BS C/S 18-8 SS with Patch (Qty 4)
- 53 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 1)
- 75 5/16-18 X 1 Carriage Bolt Zinc (Qty 4)
- 85 .630 ID X 1.122 OD X .142 THK (Qty 1)
- 90 5/16 USS Flat Washer Zinc (Qty 7)
- 91 5/16 Lock washer Zinc (Qty 7)
- 98 Split Collar (Qty 1)
- 106 2021 ZT Rear Plate--Orange (Qty 1)
- 111 Deck Height Cam Plunger (Qty 1)
- 113 2017 ZT Deck Height Bar Assy. (Qty 1)
- 119 5/16 x 3/4 Hex Washer Type F (Qty 3)
- 150 Ignition Key (Qty 1)
- 156 15" Fuel Line (Qty 1)
- 157 2014 ZT Fuel Line Assembly-37" (Qty 2)
- 173 ZT/Mav EPA Cannister Assy (Qty 1)
- 174 2021 Maverick Right Side Tank (Qty 1)
- 175 2021 Maverick Left Side Tank (Qty 1)
- 183 Deck Height Dial (Qty 1)
- 184 ZT/MAV Control Panel Assy (Qty 1)
- 188 2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
- 193 2021 ZT Elite 747cc Back Plate Cluster (Qty 1)
- 194 2021 ZT Elite 726cc Back Plate Cluster (Qty 1)
- 195 2021 ZT Elite 725cc Back Plate Cluster (Qty 1)
- 197 2017 ZT Elite Cooler Cover Decal (Qty 1)
- 212 2017 MZ/ZT/MAV/HD/Revolt Tach Wire Assy (Qty 1)
-
4#013-0080-00
.630 ID x 1.130 OD x .062 THK F/W Nylon Black
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
13#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
15#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
19#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
23#014-3417-21
OBSOLETE USE 014-3320-23
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
29#014-9000-00
Frame Plug 2x2
Qty Used: 2Regular price $2.48 USDRegular priceUnit price per
-
42#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
51#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 7Regular price $0.00 USDRegular priceUnit price per
-
52#018-2010-00
10-32 X 3/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
53#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
75#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
85#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
90#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
91#019-8051-00
5/16 Lock washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
98#025-0002-00
Split Collar
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
106#026-0209-00
2021 ZT Rear Plate--Orange
Qty Used: 1Regular price $189.74 USDRegular priceUnit price per
-
111#028-0008-00
Deck Height Cam Plunger
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
113#028-0070-17
2017 ZT Deck Height Bar Assy.
Qty Used: 1Regular price $27.72 USDRegular priceUnit price per
-
119#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 3Regular price $0.89 USDRegular priceUnit price per
-
150#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
156#051-0001-00
15" Fuel Line
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
157#051-2014-00
2014 ZT Fuel Line Assembly-37"
Qty Used: 2Regular price $37.88 USDRegular priceUnit price per
-
173#067-0020-01
ZT/Mav EPA Cannister Assy
Qty Used: 1Regular price $53.01 USDRegular priceUnit price per
-
174#067-2020-00
2021 Maverick Right Side Tank
Qty Used: 1Regular price $238.83 USDRegular priceUnit price per
-
175#067-2021-00
2021 Maverick Left Side Tank
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
183#077-9000-00
Deck Height Dial
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
184#079-3460-19
ZT/MAV Control Panel Assy
Qty Used: 1Regular price $144.63 USDRegular priceUnit price per
-
188#086-3050-19
2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-
193#091-0315-21
2021 ZT Elite 747cc Back Plate Cluster
Qty Used: 1Regular price $12.99 USDRegular priceUnit price per
-
194#091-0316-21
2021 ZT Elite 726cc Back Plate Cluster
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-
195#091-0317-21
2021 ZT Elite 725cc Back Plate Cluster
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
197#091-0389-00
2017 ZT Elite Cooler Cover Decal
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-
212#216-1000-17
2017 MZ/ZT/MAV Tach Wire Assy
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
