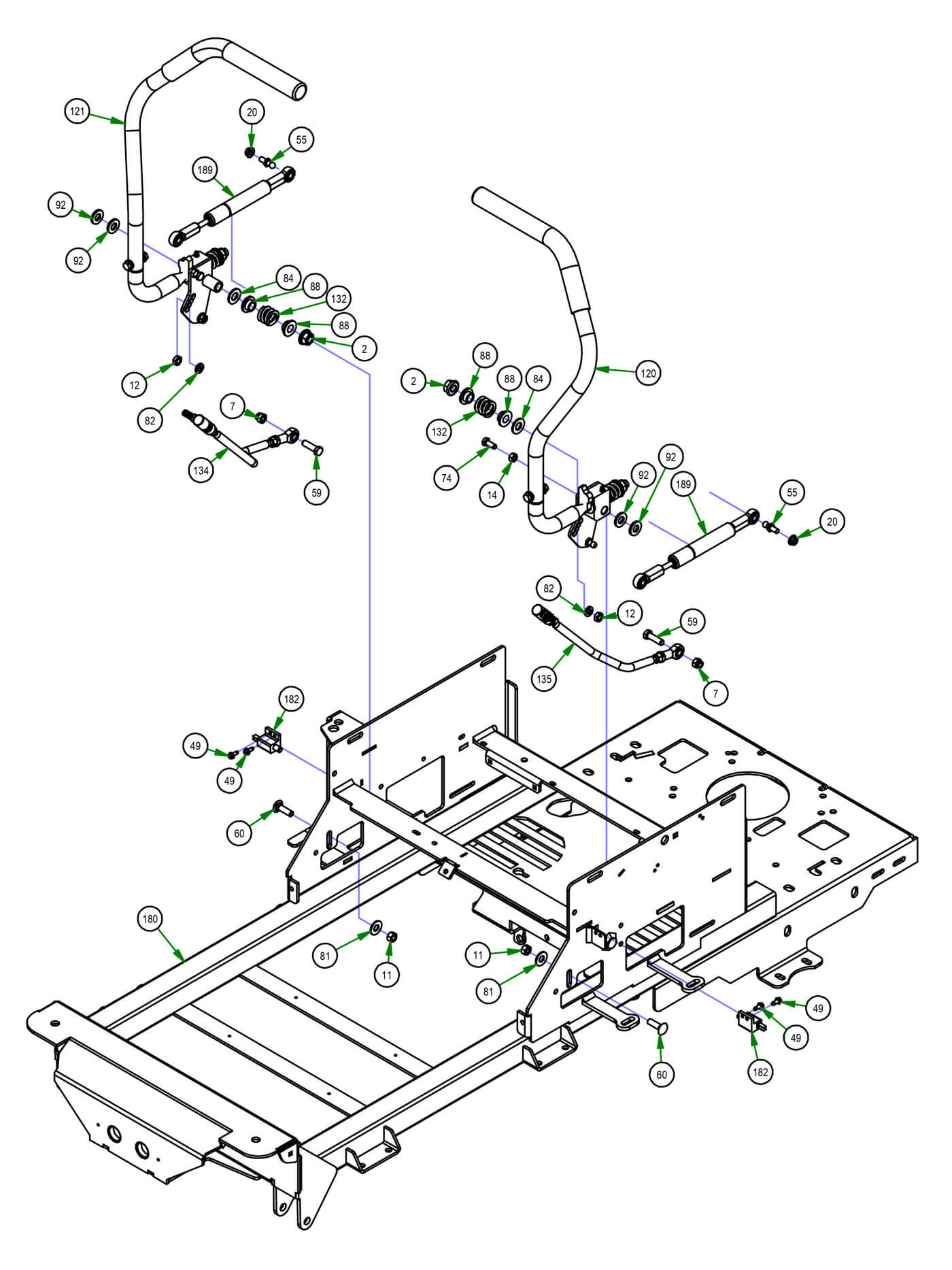

Drive Arms
Parts Index
- 2 1/2-13 Mechanical Lock Nut Grade F (Qty 2)
- 7 3/8-16 Nylon Insert Locknut Zi (Qty 2)
- 11 3/8-16 Hex Nuts Zinc (Qty 2)
- 12 3/8-24 Hex Nut Zinc (Qty 2)
- 14 5/16-18 Hex Nuts Zinc (Qty 2)
- 20 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 49 12-24 x 1/2 HWH Bolt (Qty 4)
- 55 10mm Ball Stud (Long Thread) (Qty 2)
- 59 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 60 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 74 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 2)
- 81 3/8 USS Flat Washer Zinc (Qty 2)
- 82 3/8 Lockwasher Zinc (Qty 1)
- 84 1/2 SAE Flat Washer GR 8 (Qty 2)
- 88 .515 ID Plastic Shoulder Washer (Qty 4)
- 92 .505 ID X 1 OD X .128 THK Washer (Qty 4)
- 120 2017 ZT LH Arm Assembly (Qty 1)
- 121 2017 ZT RH Arm Assembly (Qty 1)
- 132 Drive Lever Housing Spring (Qty 2)
- 134 Push Rod RH (Assembly) (Qty 1)
- 135 Push Rod LH (Assembly) (Qty 1)
- 182 Safety Switch (Qty 2)
- 189 Arm Dampener (Qty 2)
-
2#013-0010-00
1/2-13 Mechanical Lock Nut Grade F
Qty Used: 2Regular price $1.00 USDRegular priceUnit price per
-
7#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
11#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
12#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
14#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
20#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
49#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
55#018-2055-00
10mm Ball Stud (Long Thread)
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
59#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
60#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
74#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
81#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
82#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
84#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 2Regular price $0.75 USDRegular priceUnit price per
-
88#019-8027-00
.515 ID Plastic Shoulder Washer
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
92#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
120#031-0017-01
2017 ZT LH Arm Assembly
Qty Used: 1Regular price $145.99 USDRegular priceUnit price per
-
121#031-0018-01
2017 ZT RH Arm Assembly
Qty Used: 1Regular price $145.99 USDRegular priceUnit price per
-
132#034-8025-00
Drive Lever Housing Spring
Qty Used: 2Regular price $3.70 USDRegular priceUnit price per
-
134#035-5450-00
Push Rod RH (Assembly)
Qty Used: 1Regular price $31.73 USDRegular priceUnit price per
-
135#035-5451-00
Push Rod LH (Assembly)
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
182#077-8073-00
Safety Switch
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
