Chute

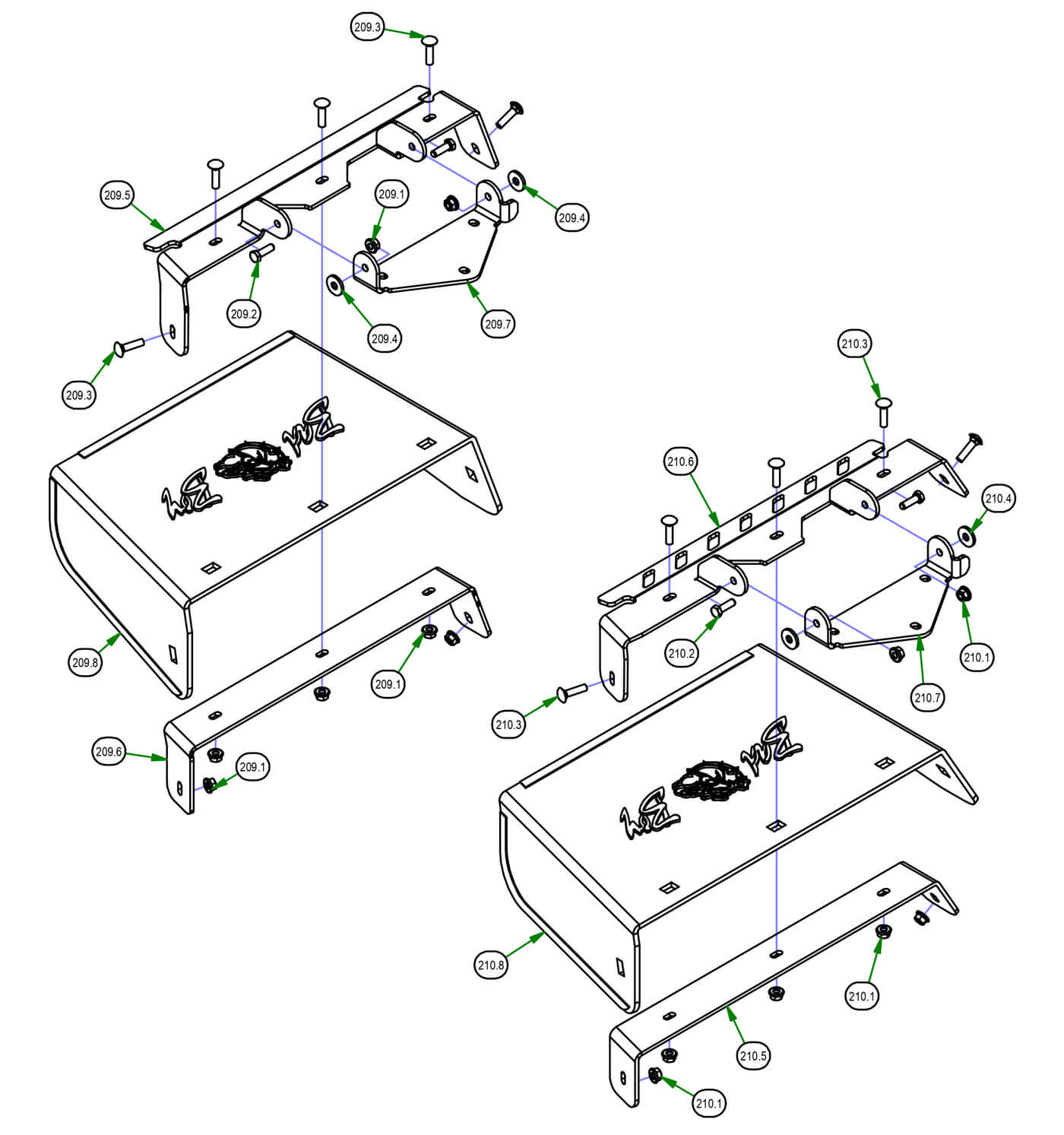

Parts Index
- 209 2013 48" ZT/Chute Assembly (Qty 1)
- 209.1 5/16-18 Nylon Flange Nut (Qty 7)
- 209.2 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 209.3 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 209.4 .360 ID Plastic Washer (Qty 2)
- 209.5 48/52 Discharge Top Bracket (Qty 1)
- 209.6 48/52 Discharge Lower Bracket (Qty 1)
- 209.7 Discharge Chute Hanger-Deck (Qty 1)
- 209.8 Discharge Chute (Rubber Component) (Qty 1)
- 210 2017 54"/60" ZT/Mav Chute Assembly (Qty 2)
- 210.1 5/16-18 Nylon Flange Nut (Qty 7)
- 210.2 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 210.3 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 210.4 .360 ID Plastic Washer (Qty 2)
- 210.5 60 Discharge Lower Bracket (Qty 1)
- 210.6 60 Discharge Chute Upper (Qty 1)
- 210.7 Discharge Chute Hanger-Deck (Qty 1)
- 210.8 Discharge Chute (Rubber Component) (Qty 1)
-
209#210-6005-48
2013 48" ZT/Chute Assembly
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
209.1210.1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
209.2210.2#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
209.3210.3#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
209.4210.4#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
209.5#039-4870-00
48/52 Discharge Top Bracket
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
-
209.6#039-4871-00
48/52 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
209.7210.7#206-6017-00
Discharge Chute Hanger-Deck
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
209.8210.8#210-6005-00
Discharge Chute (Rubber Component)
Qty Used: 1Regular price $55.99 USDRegular priceUnit price per
-
210#210-6005-98
2017 54"/60" ZT/Mav Chute Assembly
Qty Used: 2Regular price $149.99 USDRegular priceUnit price per
-
210.5#039-4863-00
60 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
210.6#039-4864-00
60 Discharge Chute Upper
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
