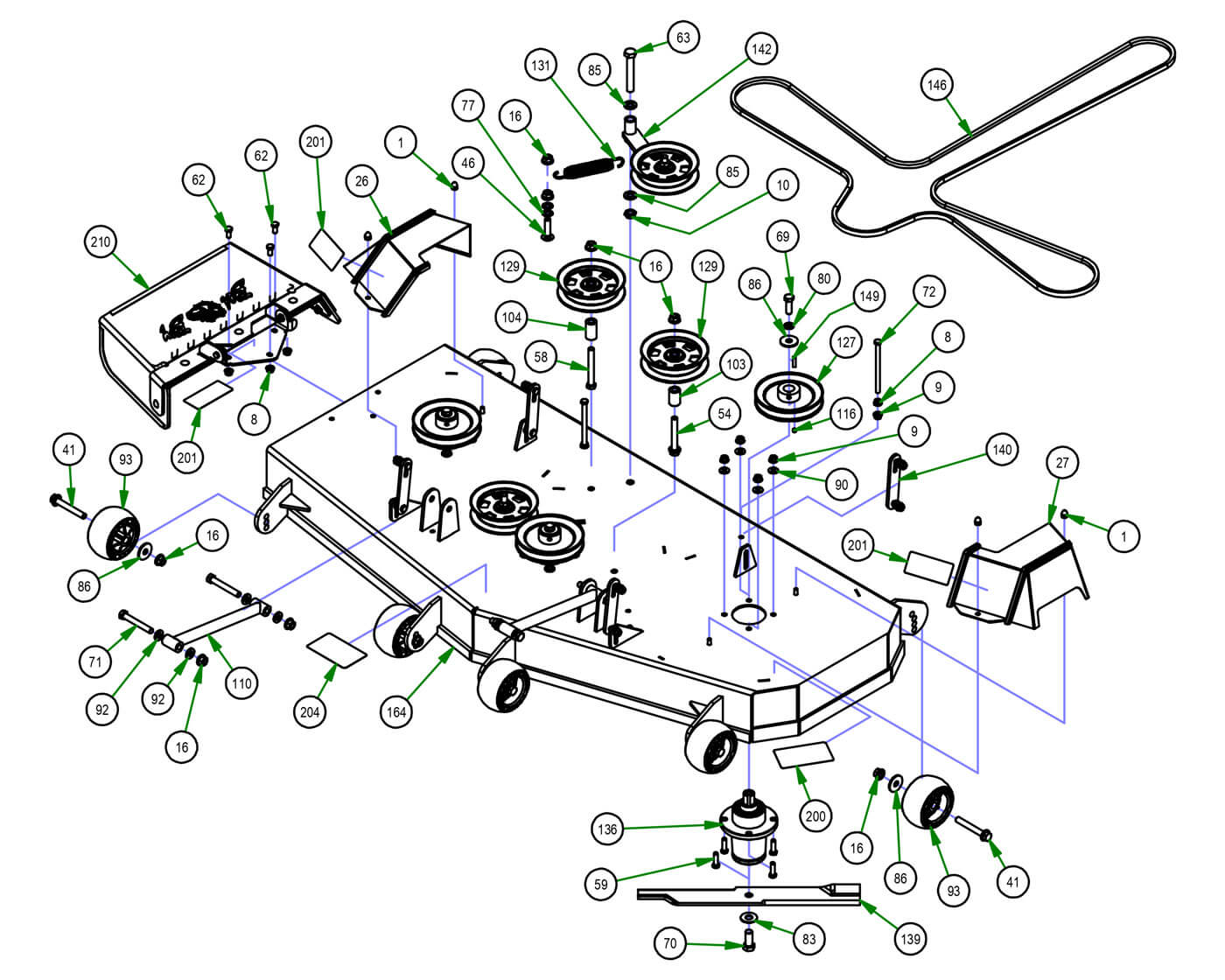

60" Deck Assembly
Parts Index
- 1 Acorn Nut-Pulley Cover (Qty 4)
- 8 3/8-16 Hex Flange Nuts Zinc w/ (Qty 5)
- 9 3/8 Nylock Flange Nut (Qty 14)
- 10 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 16 1/2-13 Nylon Insert Flange Nut (Qty 15)
- 26 RH Pulley Cover 54"/60" (Qty 1)
- 27 LH Pulley Cover 54"/60" (Qty 1)
- 41 Deck Wheel Bolt (Qty 6)
- 46 1/2 x 2 Carriage Bolt (Qty 1)
- 54 1/2 x 3 1/2 Flange Bolt - Gr 8 (Qty 2)
- 58 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 1)
- 59 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 12)
- 62 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 3)
- 63 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 69 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 70 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
- 71 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 4)
- 72 3/8-16 x 5 1/2 Hex Bolt - Grade 5 (Qty 2)
- 77 .517 Square Hole Round Washer (Qty 2)
- 80 1/2 Lockwasher Zinc (Qty 3)
- 83 5/8 Flat Washer (Qty 3)
- 85 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 86 1/2 Belleville Washer #K2000-G (Qty 9)
- 90 5/16 USS Flat Washer Zinc (Qty 12)
- 92 .505 ID X 1 OD X .128 THK Washer (Qty 8)
- 93 Deck Wheel (Qty 6)
- 103 .502 ID X 1.000 0D X 1.500 (Qty 2)
- 104 .502 ID X 1.00 OD X 1.750 (Qty 1)
- 110 OBSOLETE USE 028-0004-22 (Qty 2)
- 116 5/16-24 x 1/4 Set Screw (Qty 3)
- 127 6 1/4 Spindle Deck Pulley (Qty 3)
- 129 5 3/4 Idler Pulley-Capitol (Qty 3)
- 131 2015 Deck Idler Spring (Qty 1)
- 136 Spindle-Aluminum (Qty 3)
- 139 60" High Lift Blade (Qty 3)
- 140 MZ/ZT Deck Hanger Assembly (Qty 4)
- 142 2017 MZ/ZT Deck Idler Assembly (Qty 1)
- 146 60 Pup/Lightning/ZT/Mav/Avenger/ - 54 Rebel/Rogue (Qty 1)
- 149 1/4 x 1 Square Key (Qty 3)
- 164 2017 60" ZT Deck (Qty 1)
- 200 2018 60" Deck Decal (Qty 1)
- 201 Danger Decal-Spindle/Discharge (Qty 3)
- 204 Deck Belt Route Decal (Qty 1)
- 210 2017 54"/60" ZT/Mav Chute Assembly (Qty 1)
-
1#013-0004-00
Acorn Nut-Pulley Cover
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
8#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 5Regular price $1.49 USDRegular priceUnit price per
-
9#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 14Regular price $1.49 USDRegular priceUnit price per
-
10#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
16#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 15Regular price $1.39 USDRegular priceUnit price per
-
26#014-5020-00
2021 Maverick 54"/60" RH Pulley Cover
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
27#014-5021-00
2021 Maverick 54"/60" LH Pulley Cover
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
41#018-0010-00
Deck Wheel Bolt - 2011 Outlaw
Qty Used: 6Regular price $5.89 USDRegular priceUnit price per
-
46#018-1050-00
1/2 x 2 Carriage Bolt
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
54#018-2018-00
1/2 x 3 1/2 Flange Bolt - Gr 8
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
58#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
59#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
62#018-5250-00
3/8-16 X 3/4 GR 5 Hex Bolts
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
63#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
69#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
-
70#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 3Regular price $2.49 USDRegular priceUnit price per
-
71#018-6054-00
1/2-13 X 3-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
72#018-7060-00
3/8-16 x 5 1/2 Hex Bolt - Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
77#019-0007-00
.517 Square Hole Round Washer
Qty Used: 2Regular price $1.09 USDRegular priceUnit price per
-
80#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
83#019-5038-00
5/8 Flat Washer
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
85#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
86#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 9Regular price $4.69 USDRegular priceUnit price per
-
90#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
92#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 8Regular price $0.69 USDRegular priceUnit price per
-
93#022-1000-00
Deck Wheel
Qty Used: 6Regular price $15.99 USDRegular priceUnit price per
-
103#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
104#025-5339-00
.502 ID X 1.00 OD X 1.750
Qty Used: 1Regular price $4.87 USDRegular priceUnit price per
-
110#028-0004-00
OBSOLETE USE 028-0004-22
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
116#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 3Regular price $1.59 USDRegular priceUnit price per
-
127#033-6004-00
6 1/4 Spindle Deck Pulley
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
129#033-7201-25
5 3/4 Idler Pulley-Capitol
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
131#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
136#037-6015-50
Spindle-Aluminum
Qty Used: 3Regular price $199.99 USDRegular priceUnit price per
-
139#038-6060-00
60\" High Lift Blade
Qty Used: 3Regular price $21.16 USDRegular priceUnit price per
-
140#039-2127-17
MZ/ZT Deck Hanger Assembly
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
142#039-6945-17
2017 MZ/ZT Deck Idler Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
146#041-1650-00
60 Pup/Lightning/ZT/Mav/Avenger/ - 54 Rebel/Rogue
Qty Used: 1Regular price $84.99 USDRegular priceUnit price per
-
149#042-6030-00
1/4 x 1 Square Key
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
164#060-6017-00
2017 60" ZT Deck
Qty Used: 1Regular price $999.99 USDRegular priceUnit price per
-
200#091-0905-18
2018 60" Deck Decal
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
201#091-3012-00
Danger Decal-Spindle/Discharge
Qty Used: 3Regular price $2.91 USDRegular priceUnit price per
-
204#091-3309-00
Deck Belt Route Decal
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
210#210-6005-98
2017 54"/60" ZT/Mav Chute Assembly
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
