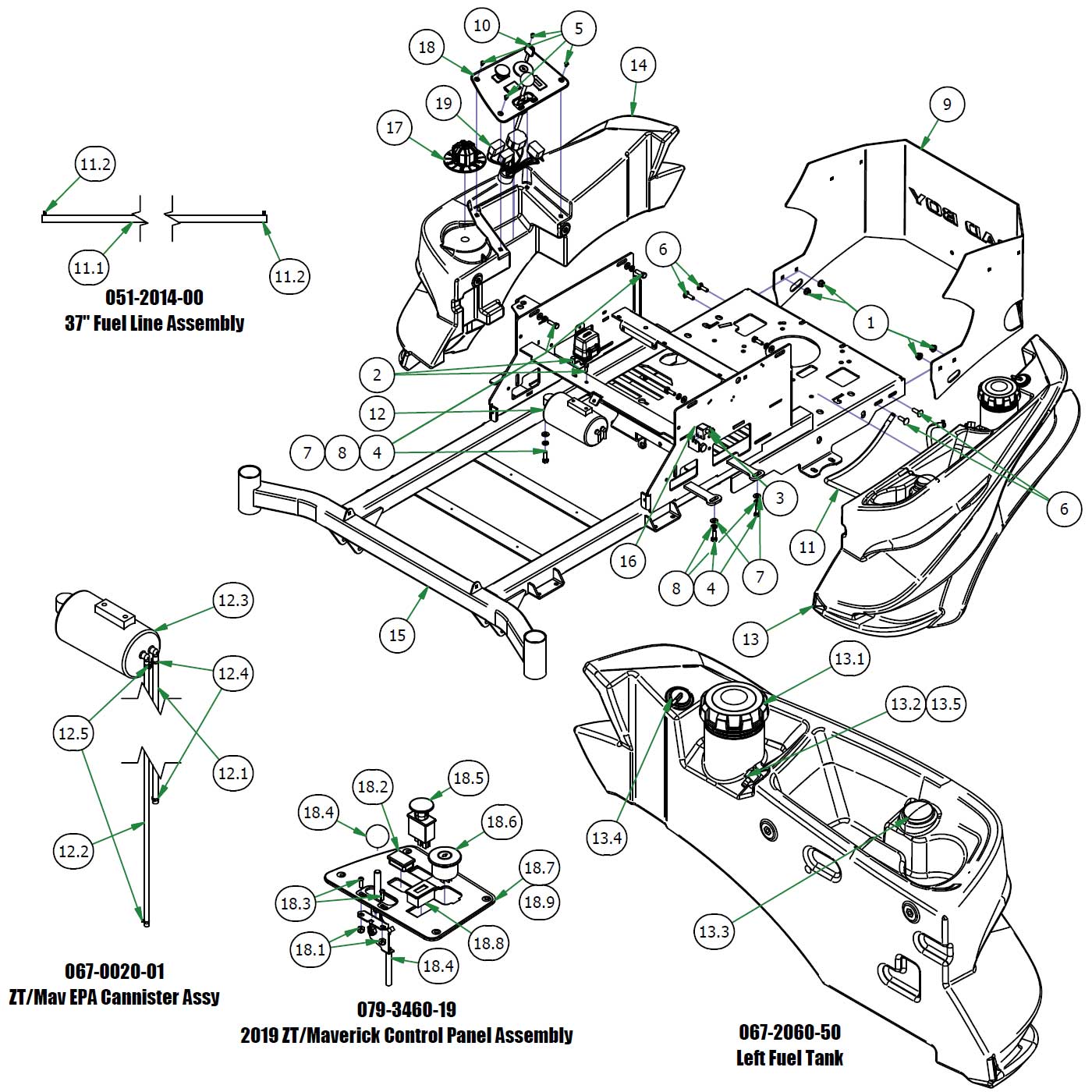

Tanks & Rear Cover
Parts Index
- 1 5/16-18 Nylon Flange Nut (Qty 4)
- 2 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 3 12-24 x 1/2 HWH Bolt (Qty 4)
- 4 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 7)
- 5 10-32 X 3/8 BS C/S 18-8 SS with Patch (Qty 4)
- 6 5/16-18 X 1 Carriage Bolt Zinc (Qty 4)
- 7 5/16 USS Flat Washer Zinc (Qty 7)
- 8 5/16 Lock washer Zinc (Qty 7)
- 9 2017 ZT Rear Plate--Orange (Qty 1)
- 10 Ignition Key (Qty 1)
- 11 2014 ZT Fuel Line Assembly-37" (Qty 1)
- 11.1 33" 1/4 Fuel Line No Clamp (Qty 1)
- 11.2 1/4 Fuel Line Clamp (Qty 2)
- 12 ZT/Mav EPA Cannister Assy (Qty 1)
- 12.1 1/4 Vinyl 46" EPA Line (Qty 1)
- 12.2 3/16 Vinyl 55" EPA Line (Qty 1)
- 12.3 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 12.4 MZ Tank Hose Clamp 1/4 Vinyl (Qty 2)
- 12.5 3/16" Vinyl Hose Clamp (Qty 2)
- 13 2016 Maverick/ZT/Avenger Left Fuel Tank (Qty 1)
- 13.1 3.5" Tethered Fuel Cap (Qty 1)
- 13.2 Fuel Line Pickup Tube for ZT (Qty 1)
- 13.3 Fuel Gauge w/ Grommet (Qty 1)
- 13.4 Rollover Valve and Grommet New (Qty 1)
- 13.5 Grommet for ZT Elite Fuel Line (Qty 1)
- 14 2016 Maverick/ZT/Avenger Right Side Console (Qty 1)
- 15 2017 MZ/ZT 54"-60" Frame (Qty 1)
- 16 Safety Switch (Qty 2)
- 17 Deck Height Dial (Qty 1)
- 18 ZT/MAV Control Panel Assy (Qty 1)
- 18.1 10-24 Nylon Insert Locknut Zin (Qty 2)
- 18.2 Light Plug (Qty 1)
- 18.3 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 18.4 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 18.5 PTO Engager-Switch for Blades (Qty 1)
- 18.6 Ignition Switch (Qty 1)
- 18.7 2014 MZ/ZT Control Panel--Orange (Qty 1)
- 18.8 Tachometer-N310-0100-1018 (Qty 1)
- 18.9 2018 MZ/Magnum/ZT/Maverick Control Panel Decal (Qty 1)
- 19 2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
-
1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
2#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
3#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
4#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 7Regular price $0.00 USDRegular priceUnit price per
-
5#018-2010-00
10-32 X 3/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
6#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
7#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
8#019-8051-00
5/16 Lock washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
9#026-0090-00
2017 ZT Rear Plate--Orange
Qty Used: 1Regular price $189.74 USDRegular priceUnit price per
-
10#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
11#051-2014-00
2014 ZT Fuel Line Assembly-37"
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
11.1#051-2014-01
33" 1/4 Fuel Line No Clamp
Qty Used: 1Regular price $17.99 USDRegular priceUnit price per
-
11.2#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
12#067-0020-01
ZT/Mav EPA Cannister Assy
Qty Used: 1Regular price $53.01 USDRegular priceUnit price per
-
12.1#051-2020-01
1/4 Vinyl 46" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
12.2#051-2025-02
3/16 Vinyl 55" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
12.3#067-0020-00
Carbon Canister ZT,CZT,Outlaw
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
12.4#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 2Regular price $1.45 USDRegular priceUnit price per
-
12.5#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
13#067-2060-50
2016 Maverick/ZT/Avenger Left Fuel Tank
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
13.1#066-8083-00
3.5" Tethered Fuel Cap
Qty Used: 1Regular price $19.84 USDRegular priceUnit price per
-
13.2#067-0011-00
Fuel Line Pickup Tube for ZT
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
13.3#067-4090-00
Fuel Gauge w/ Grommet
Qty Used: 1Regular price $42.99 USDRegular priceUnit price per
-
13.4#067-6070-00
Rollover Valve and Grommet New
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
13.5#067-6080-00
Grommet for ZT Elite Fuel Line
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
14#067-2070-50
2017 ZT Right Side Console
Qty Used: 1Regular price $218.93 USDRegular priceUnit price per
-
15#070-5420-00
2017 MZ/ZT 54"-60" Frame
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
-
16#077-8073-00
Safety Switch
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
17#077-9000-00
Deck Height Dial
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
18#079-3460-19
ZT/MAV Control Panel Assy
Qty Used: 1Regular price $144.63 USDRegular priceUnit price per
-
18.1#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
18.2#018-1040-00
Light Plug
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
18.3#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
18.4#055-8020-00
ZT/Mav/MZ/Comp Outlaw Throttle-53\"
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
18.5#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
18.6#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
18.7#079-3460-00
2014 MZ/ZT Control Panel--Orange
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
18.8#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
18.9#091-0338-18
2018 MZ/Magnum/ZT/Maverick Control Panel Decal
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-
19#086-3050-19
2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
