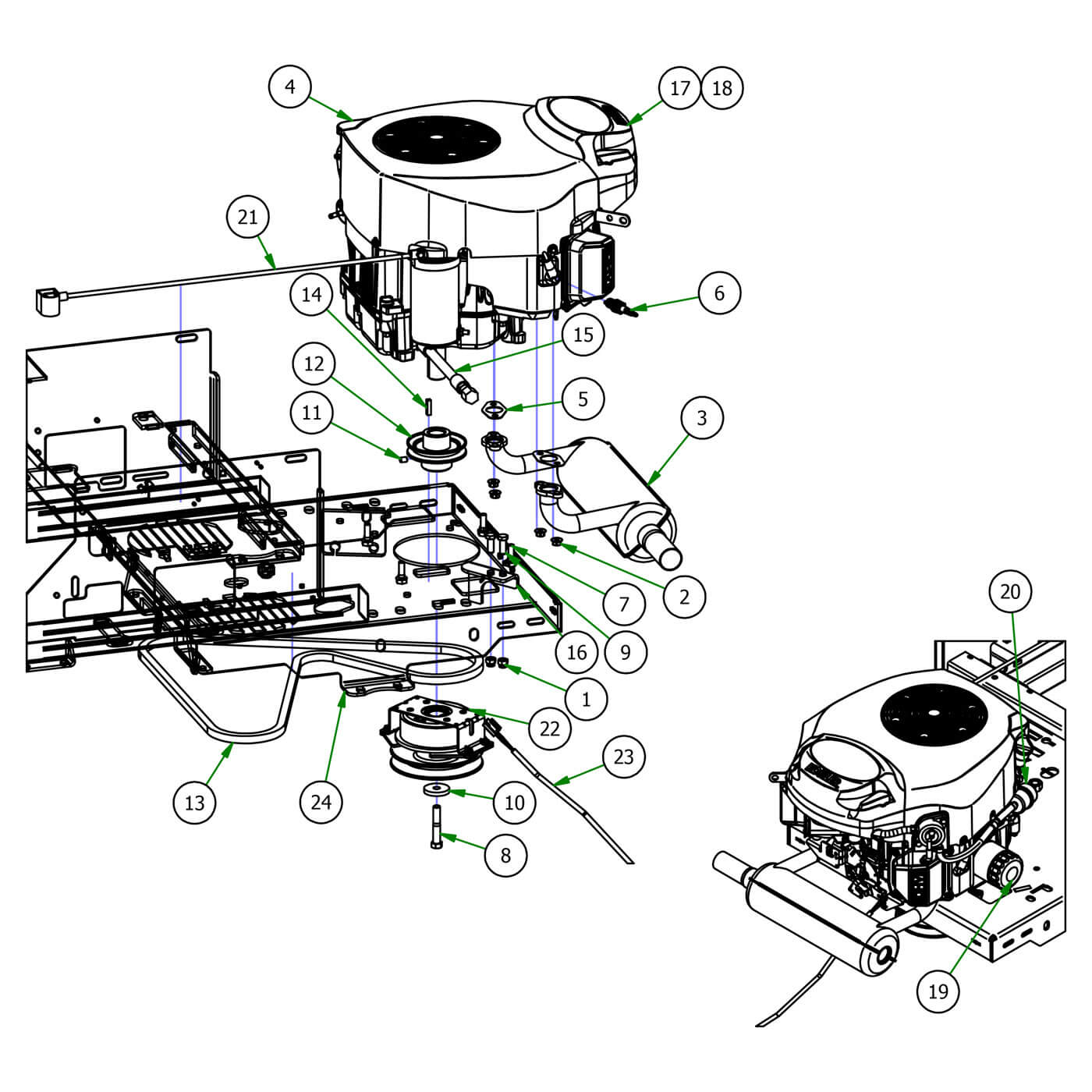

Kohler KT740
Parts Index
- 1 3/8-16 Nylon Insert Locknut Zi (Qty 2)
- 2 M8 Nut fits the 015-9990-00/015-9991-00 (Qty 4)
- 3 2017 Kohler Exhaust MZ, AVEN, ZT, MAV, HD (Qty 1)
- 4 25hp Kohler 2014 MZ-KT740-3048 (Qty 1)
- 5 Exhaust Gaskets for 27,30 hp (Qty 2)
- 6 Spark Plug-Kohler/Briggs (Qty 2)
- 7 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 8 7/16-20 x 1 1/2 Fine Thread Bolt Gr8 (Qty 1)
- 9 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 10 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC (Qty 1)
- 11 3/8-16x1/2 Socket Set Cup Point (Qty 1)
- 12 3 3/4 Motor Pulley-2009 MZ (Qty 1)
- 13 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 14 1/4 x 1 Square Key (Qty 1)
- 15 Kohler Oil Drain Hose (Qty 1)
- 16 Clutch Stop (Qty 1)
- 17 25/26 HP Koh Precleaner ZT/MZ (Qty 1)
- 18 25/26 HP Koh Air Filter ZT/MZ (Qty 1)
- 19 25 HP Kohler Oil Filter ZT/MZ (Qty 1)
- 20 Universal Inline Fuel Filter (Qty 1)
- 21 24 inch Black Cable - MZ/ZT (Qty 1)
- 22 Clutch For 1" Shaft (Qty 1)
- 23 Clutch Pigtail (Qty 1)
- 24 2017 MZ/ZT 54"-60" Frame (Qty 1)
-
1#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
2#013-8240-00
M8 Nut fits the 015-9990-00/015-9991-00
Qty Used: 4Regular price $6.69 USDRegular priceUnit price per
-
3#015-0051-00
2017 Kohler Exhaust MZ/ZT/Mav/Compact Outlaw
Qty Used: 1Regular price $217.48 USDRegular priceUnit price per
-
4#015-2014-00
25hp Kohler 2014 MZ-KT740-3048
Qty Used: 1Regular price $1,799.00 USDRegular priceUnit price per
-
5#015-2751-00
Exhaust Gaskets for 27,30 hp
Qty Used: 2Regular price $5.96 USDRegular priceUnit price per
-
6#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
7#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
8#018-5450-00
7/16-20 x 1 1/2 Fine Thread Bolt Gr8
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
9#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
10#019-0010-00
7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
Qty Used: 1Regular price $5.39 USDRegular priceUnit price per
-
11#030-6029-00
3/8-16x1/2 Socket Set Cup Point
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
12#033-2010-00
3 3/4 Motor Pulley-2009 MZ
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
13#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
14#042-6030-00
1/4 x 1 Square Key
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
15#051-5401-00
Kohler Oil Drain Hose
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
16#057-5900-00
Clutch Stop
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
17#063-5002-00
25/26 HP Koh Precleaner ZT/MZ
Qty Used: 1Regular price $7.95 USDRegular priceUnit price per
-
18#063-5003-00
25/26 HP Koh Air Filter ZT/MZ
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
19#063-5004-00
25 HP Kohler Oil Filter ZT/MZ
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
20#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
21#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
22#070-0055-00
Clutch For 1\" Shaft
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
23#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
24#070-5420-00
2017 MZ/ZT 54"-60" Frame
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
