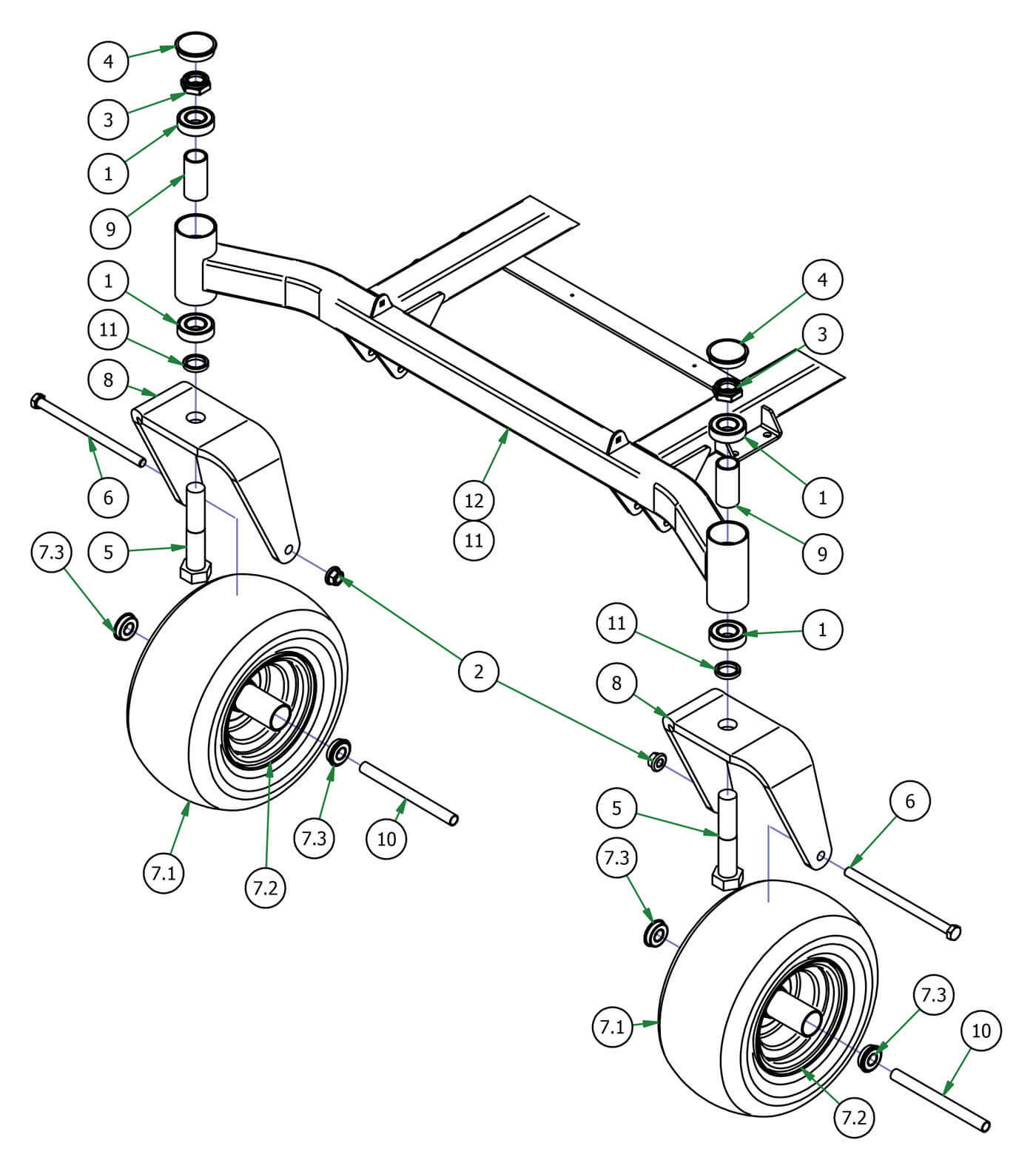

Front Fork
Parts Index
- 1 Caster Bearing (Qty 4)
- 2 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 3 1" Nylock Nut 1/2 Nut - Fine (Qty 2)
- 4 Bearing Retainer Cap (Qty 2)
- 5 1-14 X 5 BOLT GR 8 ZC YELLOW (Qty 2)
- 6 1/2-13x8 1/2 Gr5 Hex Bolt (Qty 2)
- 7 12x6x6 Front Tire & Black Wheel Assembly (Qty 2)
- 7.1 12x6x6 Front Tire (Qty 1)
- 7.2 6 x 4.50 Black Wheel (Qty 1)
- 7.3 Ball Bearing w/clip; 99502H-NR; 5/8" Bore (Qty 1)
- 8 ZT, AVENG Front fork (Qty 2)
- 9 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 10 Front Wheel Spanner-All Models (Qty 2)
- 11 Spacer ( Front Fork and Suspension ) (Qty 2)
- 12 2017 MZ/ZT 54"-60" Frame (Qty 1)
-
1#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
3#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
4#014-2025-00
Bearing Retainer Cap
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
5#018-0005-00
1-14 X 5 BOLT GR 8 ZC YELLOW
Qty Used: 2Regular price $5.89 USDRegular priceUnit price per
-
6#018-0040-00
1/2-13x8 1/2 Gr5 Hex Bolt
Qty Used: 2Regular price $14.59 USDRegular priceUnit price per
-
7#022-0007-00
12x6x6 Front Tire & Black Wheel Assembly
Qty Used: 2Regular price $139.99 USDRegular priceUnit price per
-
7.1#022-0010-00
12x6x6 Front Tire
Qty Used: 1Regular price $72.99 USDRegular priceUnit price per
-
7.2#022-0009-00
6 x 4.50 Black Wheel
Qty Used: 1Regular price $79.69 USDRegular priceUnit price per
-
7.3#022-7009-00
Ball Bearing w/clip; 99502H-NR; 5/8" Bore
Qty Used: 1Regular price $12.49 USDRegular priceUnit price per
-
8#023-0003-00
ZT, AVENG Front fork
Qty Used: 2Regular price $36.49 USDRegular priceUnit price per
-
9#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
-
10#025-5202-00
Front Wheel Spanner-All Models
Qty Used: 2Regular price $9.49 USDRegular priceUnit price per
-
11#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
12#070-5420-00
2017 MZ/ZT 54"-60" Frame
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
