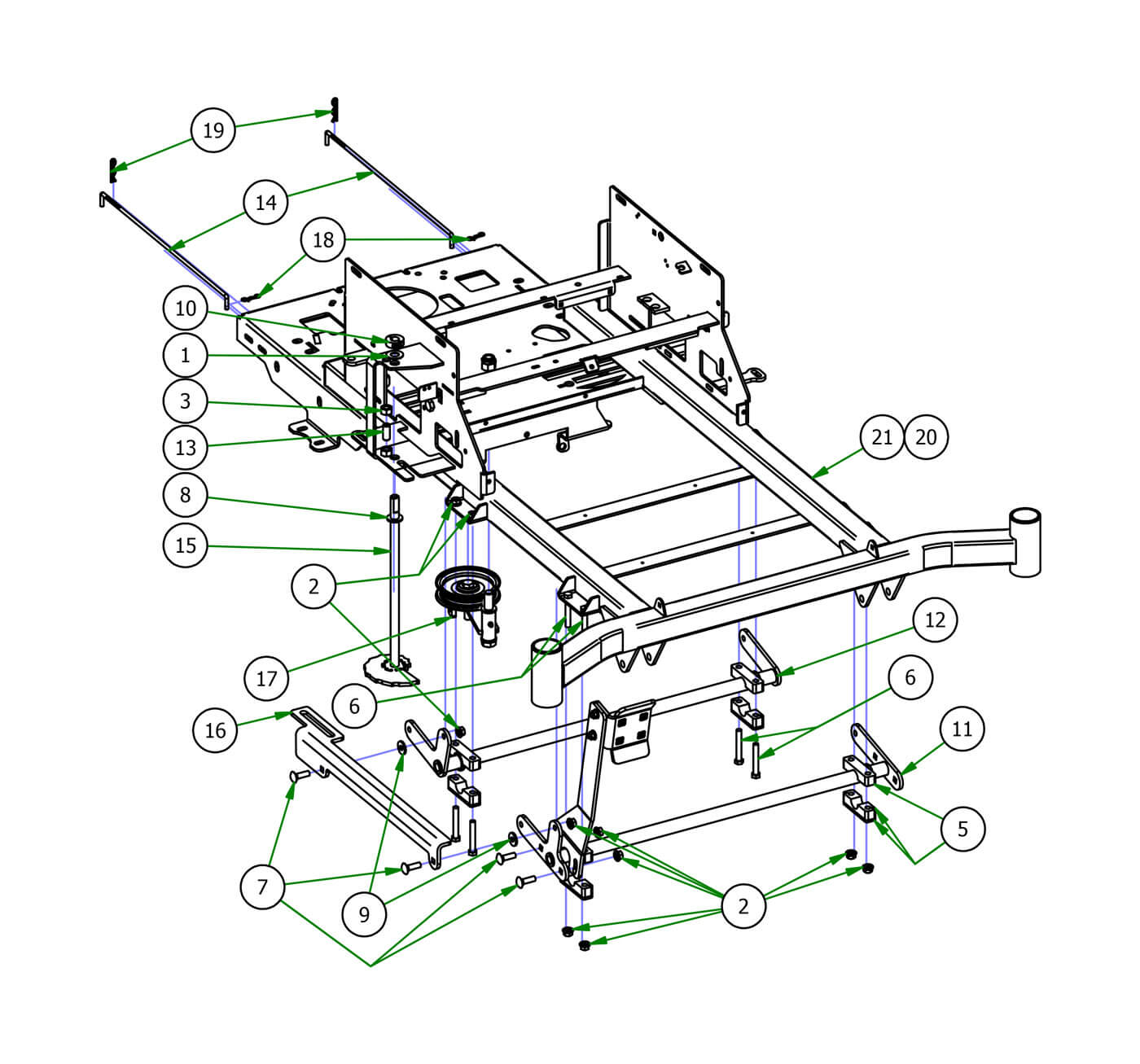

Deck Height Control
Parts Index
- 1 .630 ID x 1.130 OD x .062 THK F/W Nylon Black (Qty 1)
- 2 3/8 Nylock Flange Nut (Qty 12)
- 3 1/2-13 Hex Nuts Zinc (Qty 1)
- 4 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 5 Pillow Block (Qty 4)
- 6 3/8x2 1/2" Hex Bolt (Qty 8)
- 7 3/8-16 X 1-1/4 Carriage Bolt (Qty 4)
- 8 .630 ID X 1.122 OD X .142 THK (Qty 1)
- 9 .360 ID Plastic Washer (Qty 2)
- 10 Split Collar (Qty 1)
- 11 Actuator Bar (Front) (Qty 1)
- 12 Actuator Bar (Rear) (Qty 1)
- 13 Deck Height Cam Plunger (Qty 1)
- 14 Neutral Rod (Qty 2)
- 15 2017 ZT Deck Height Bar Assy. (Qty 1)
- 16 2017 MZ/ZT Actuator Linkage--Orange (Qty 1)
- 17 Pump Idler Bracket Assembly-ZT, MZ, Aven, Raider (Qty 1)
- 18 Bow Pin (Qty 2)
- 19 Neutral Rod Clip (Qty 2)
- 20 2017 MZ/ZT 54"-60" Frame (Qty 1)
- 21 2017 MZ/ZT 54"-60" Frame (Qty 1)
-
1#013-0080-00
.630 ID x 1.130 OD x .062 THK F/W Nylon Black
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
2#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 12Regular price $1.49 USDRegular priceUnit price per
-
3#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
4#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
5#017-9076-00
Pillow Block
Qty Used: 4Regular price $21.88 USDRegular priceUnit price per
-
6#018-0028-00
3/8x2 1/2" Hex Bolt
Qty Used: 8Regular price $3.99 USDRegular priceUnit price per
-
7#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 4Regular price $0.99 USDRegular priceUnit price per
-
8#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
9#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
10#025-0002-00
Split Collar
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
11#028-0002-00
Actuator Bar (Front)
Qty Used: 1Regular price $72.97 USDRegular priceUnit price per
-
12#028-0003-00
Actuator Bar (Rear)
Qty Used: 1Regular price $72.97 USDRegular priceUnit price per
-
13#028-0008-00
Deck Height Cam Plunger
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
14#028-0070-00
Neutral Rod
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
-
15#028-0070-17
2017 ZT Deck Height Bar Assy.
Qty Used: 1Regular price $27.72 USDRegular priceUnit price per
-
16#031-0510-00
2017 MZ/ZT Actuator Linkage--Orange
Qty Used: 1Regular price $43.78 USDRegular priceUnit price per
-
17#039-5944-01
Pump Idler Bracket Assembly-ZT/MZ/Compact Outlaw
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
-
19#044-2008-00
Neutral Rod Clip
Qty Used: 2Regular price $1.31 USDRegular priceUnit price per
-
2021#070-5420-00
2017 MZ/ZT 54"-60" Frame
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
