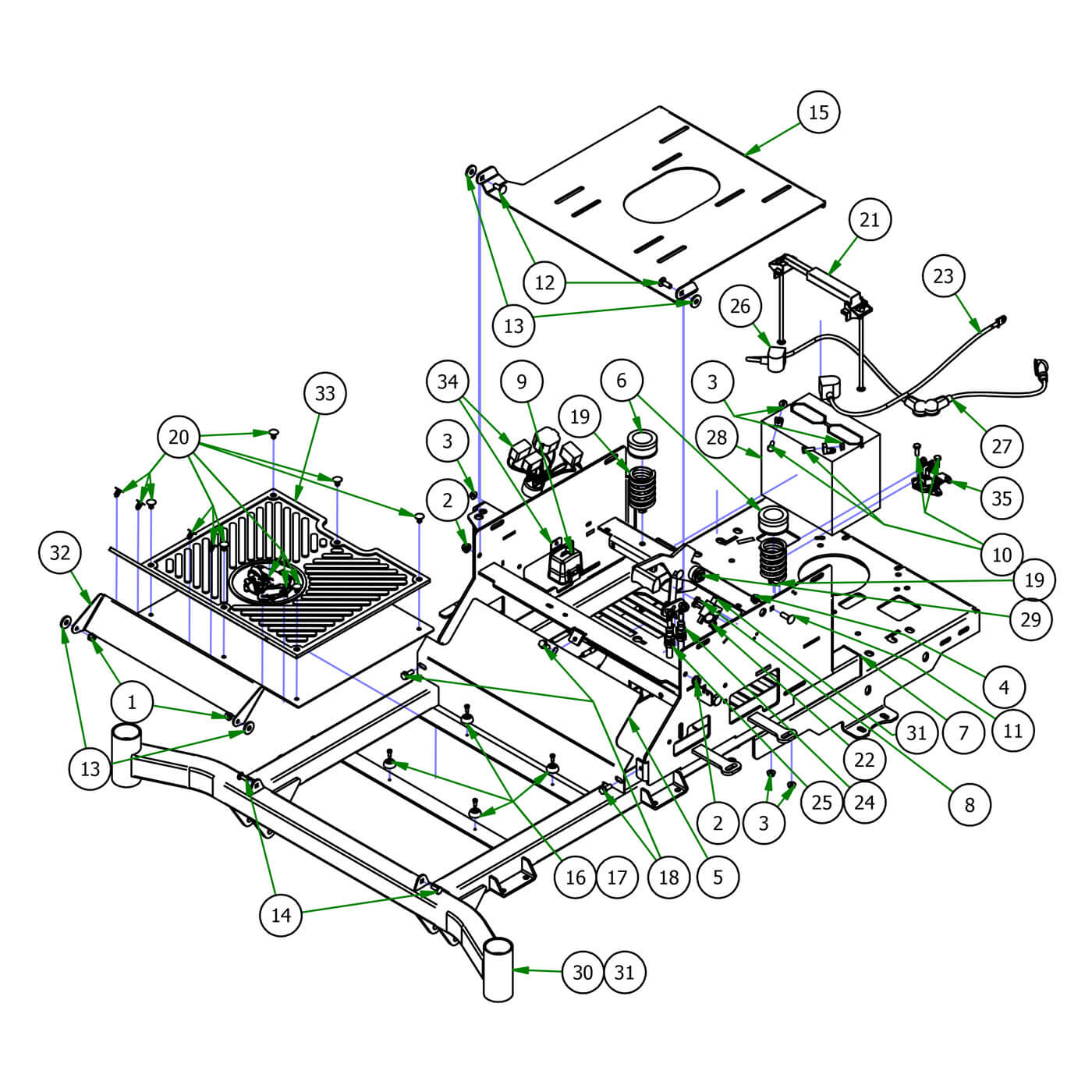

Battery, Seat Pan, Cover
Parts Index
- 1 1/4-20 Nylon Insert Flange Nut (Qty 6)
- 2 5/16-18 Nylon Flange Nut (Qty 2)
- 3 1/4-20 Hex Flange Nuts Zinc w/ (Qty 7)
- 4 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 5 2017 ZT Cooler Cover--Orange (Qty 1)
- 6 Seat Spring Cap Cover (Qty 2)
- 7 Frame Plug 2x2 (Qty 2)
- 8 12-24 x 1/2 HWH Bolt (Qty 2)
- 9 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 1)
- 10 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 4)
- 11 5/16-18 X 1 Carriage Bolt Zinc (Qty 1)
- 12 5/16 x 7/8 Carriage Bolt (Qty 2)
- 13 .360 ID Plastic Washer (Qty 4)
- 14 1/4 x 3/4 Carriage Bolt (Qty 2)
- 15 2017 MZ Seat Plate--Orange (Qty 1)
- 16 Button Bumper (Qty 4)
- 17 10 X 1/2 Pan Phil a T/S Zinc (Qty 4)
- 18 5/16 x 3/4 Hex Washer Type F (Qty 3)
- 19 2017 MZ/ZT Seat Spring Assembly (Qty 2)
- 20 OBSOLETE USE 040-6080-00 (Qty 12)
- 21 Battery Hold Down (Plastic) (Qty 1)
- 22 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 23 24 inch Black Cable - MZ/ZT (Qty 1)
- 24 2021 Load Balanced Brake Cable 1 (Qty 1)
- 25 2021 Load Balanced Brake Cable 2 (Qty 1)
- 26 24 Red Battery Cable (Qty 1)
- 27 14" Red Battery Cable (Qty 1)
- 28 Battery - All models except Renegade and Revolt (Qty 1)
- 29 Brake Handle Assembly For HD Down (Qty 1)
- 30 2017 MZ/ZT 54"-60" Frame (Qty 1)
- 31 Safety Switch (Qty 1)
- 32 2017 MZ/ZT Floorboard--Orange (Qty 1)
- 33 Mat (Floor) (Qty 1)
- 34 2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
- 35 Solenoid (752-1251-210HP) (Qty 1)
-
1#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 6Regular price $1.39 USDRegular priceUnit price per
-
2#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
3#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 7Regular price $0.69 USDRegular priceUnit price per
-
4#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
5#014-3417-00
2017 ZT Cooler Cover--Orange
Qty Used: 1Regular price $71.50 USDRegular priceUnit price per
-
6#014-8047-00
Seat Spring Cap Cover
Qty Used: 2Regular price $8.12 USDRegular priceUnit price per
-
7#014-9000-00
Frame Plug 2x2
Qty Used: 2Regular price $2.48 USDRegular priceUnit price per
-
8#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
9#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
10#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
11#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
12#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
13#019-6042-00
.360 ID Plastic Washer
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
14#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
15#026-2017-00
2017 MZ Seat Plate--Orange
Qty Used: 1Regular price $119.41 USDRegular priceUnit price per
-
16#029-4010-00
Button Bumper
Qty Used: 4Regular price $1.31 USDRegular priceUnit price per
-
17#030-3050-00
10 X 1/2 Pan Phil a T/S Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
18#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 3Regular price $0.89 USDRegular priceUnit price per
-
19#034-8045-03
2017 MZ/ZT Seat Spring Assembly
Qty Used: 2Regular price $29.99 USDRegular priceUnit price per
-
20#040-6090-00
OBSOLETE USE 040-6080-00
Qty Used: 12Regular price $1.99 USDRegular priceUnit price per
-
21#043-8929-00
Battery Hold Down (Plastic)
Qty Used: 1Regular price $16.35 USDRegular priceUnit price per
-
22#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
23#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
24#064-3050-21
2021 Load Balanced Brake Cable 1
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
25#064-3051-21
2021 Load Balanced Brake Cable 2
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
26#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
27#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
28#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
29#069-1051-21
Load Balanced Brake Handle Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
30#070-5420-00
2017 MZ/ZT 54"-60" Frame
Qty Used: 1Regular price $799.99 USDRegular priceUnit price per
-
31#077-8073-00
Safety Switch
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
32#079-3417-00
2017 MZ/ZT Floorboard--Orange
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
33#081-4000-00
Mat (Floor)
Qty Used: 1Regular price $58.39 USDRegular priceUnit price per
-
34#086-3050-19
2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-
35#108-0001-00
Solenoid (752-1251-210HP)
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
