Podium

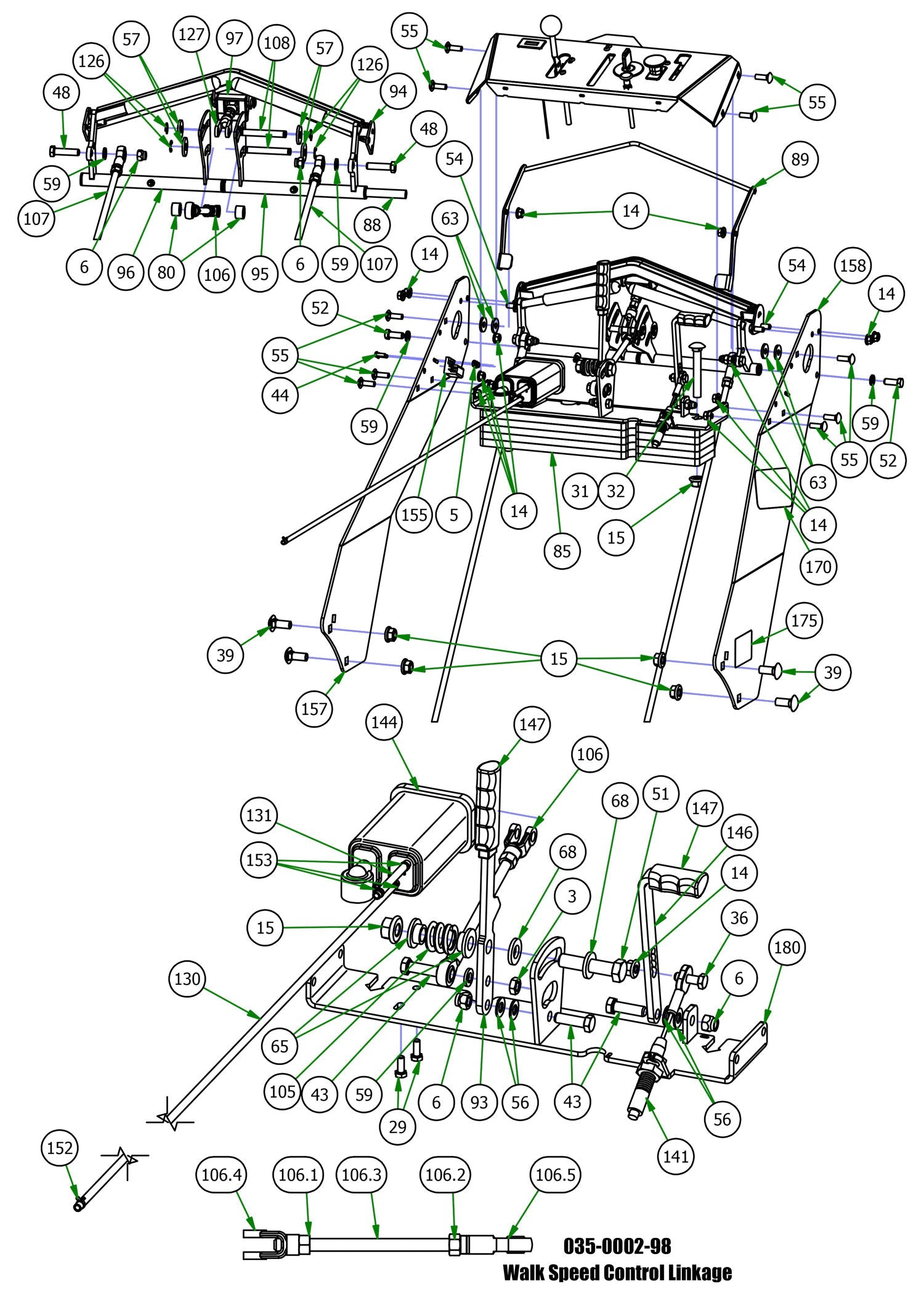

Parts Index
- 3 3/8-16 Centerlock Half Nut (Qty 1)
- 5 10-24 Nylon Insert Locknut Zin (Qty 8)
- 6 3/8-16 Nylon Insert Locknut Zi (Qty 6)
- 14 5/16-18 Nylon Flange Nut (Qty 16)
- 15 1/2-13 Nylon Insert Flange Nut (Qty 10)
- 29 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 31 2 1/2 X 1/2 Carriage Bolt (Qty 2)
- 36 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 39 1/2 x 1 1/4 Carriage Bolt (Qty 4)
- 43 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 3)
- 44 10-24 X 5/8 BS C/S 18-8 SS (Qty 8)
- 48 3/8 x 1 1/2 Bolt (Qty 2)
- 51 1/2-13 X 2-1/4 GR 5 Hex Bolts (Qty 1)
- 52 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 54 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 4)
- 55 5/16-18 X 1 Carriage Bolt Zinc (Qty 10)
- 56 .390x.750x.062 Nylon Washer (Qty 4)
- 57 .390 ID Plastic Washer (Qty 4)
- 59 3/8 Lockwasher Zinc (Qty 6)
- 65 .515 ID Plastic Shoulder Washer (Qty 2)
- 68 .505 ID X 1 OD X .128 THK Washer (Qty 2)
- 80 MZ Tank Spacer (Qty 2)
- 88 2017 Walk Behind Control Pivot Rod (Qty 1)
- 89 2020 Walk-Behind Presence-Weldment--Black (Qty 1)
- 93 Walk Behind Speed Control Lever--Black (Qty 1)
- 94 2020 Walkbehind Overmolded Bolt on Handle (Qty 1)
- 95 2020 Walk-Behind Control Lever Assy-Left (Qty 1)
- 96 2020 Walk-Behind Control Lever Assy-Right (Qty 1)
- 97 2020 Walk-Behind Neutral Lever (Qty 1)
- 105 Drive Lever Housing Spring (Qty 1)
- 106 2017 Walk Behind Speed Control Rod Assembly (Qty 2)
- 106.2 3/8-24 Hex Nut Zinc (Qty 2)
- 106.3 2017 Walk Behind Speed Control Rod (Qty 2)
- 106.4 2017 Walk Behind Left Hand Yoke Speed Control (Qty 2)
- 106.5 Spherical Rod End (Qty 2)
- 107 2020 Walk-Behind Push Rod Assembly (Qty 2)
- 108 2020 Walk-Behind Control Pin (Qty 3)
- 126 3/8 E Clip (Qty 6)
- 127 Adjustable Yoke Male/Female (Qty 1)
- 130 44" x 3/16" black hose (Qty 1)
- 131 Clear 3/16" Magnum Air Line (Qty 1)
- 141 Brake Cable Walk Behind/Revolt (Qty 1)
- 144 Carbon Canister for Magnum/MZ (Qty 1)
- 146 Walk Behind Brake Handle--Black (Qty 1)
- 147 Rubber Brake Grip-cZT/ZT 2013 (Qty 2)
- 152 3/16" Vinyl Hose Clamp (Qty 1)
- 153 5.5 mm Vinyl Hose Clamp (Qty 3)
- 155 2017? Walk Behind-Safety Switch (Qty 2)
- 157 2020 Walk Behind Side Panel-Right--Orange (Qty 1)
- 158 2020 Walk Behind Side Panel-Left--Orange (Qty 1)
- 170 2018 Walk Behind 603cc Back Plate Cluster (Qty 1)
- 175 Yellow Hydraulic Decal (Qty 2)
- 180 2020 Walk Behind Cross Support--Orange (Qty 1)
-
3#013-0012-00
3/8-16 Centerlock Half Nut
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
5#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 8Regular price $0.69 USDRegular priceUnit price per
-
6#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
14#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 16Regular price $0.79 USDRegular priceUnit price per
-
15#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 10Regular price $1.39 USDRegular priceUnit price per
-
29#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
31#018-0043-00
2 1/2 X 1/2 Carriage Bolt
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
36#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
39#018-3003-00
1/2 x 1 1/4 Carriage Bolt
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
43#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
44#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
48#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
51#018-6037-00
1/2-13 X 2-1/4 GR 5 Hex Bolts
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
52#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
54#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
55#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 10Regular price $0.79 USDRegular priceUnit price per
-
56#019-2003-00
.390x.750x.062 Nylon Washer
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
57#019-2073-00
.390 ID Plastic Washer
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
59#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 6Regular price $0.00 USDRegular priceUnit price per
-
65#019-8027-00
.515 ID Plastic Shoulder Washer
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
68#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
80#025-2025-00
MZ Tank Spacer
Qty Used: 2Regular price $1.33 USDRegular priceUnit price per
-
88#028-0009-00
2017 Walk Behind Control Pivot Rod
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
89#028-0043-00
2020 Walk-Behind Presence-Weldment--Black
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
93#031-0036-00
Walk Behind Speed Control Lever--Black
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
94#031-0039-70
2020 Walkbehind Overmolded Bolt on Handle
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
95#031-0042-00
2020 Walk-Behind Control Lever Assy-Left
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
96#031-0043-00
2020 Walk-Behind Control Lever Assy-Right
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
97#031-0047-00
2020 Walk-Behind Neutral Lever
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
105#034-8025-00
Drive Lever Housing Spring
Qty Used: 1Regular price $3.70 USDRegular priceUnit price per
-
No sequence found for SKU:
2017 Walk Behind Speed Control Rod Assembly
Regular price $0.00 USDRegular priceUnit price per
-
106.2#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
No sequence found for SKU:
2017 Walk Behind Speed Control Rod
Regular price $0.00 USDRegular priceUnit price per
-
No sequence found for SKU:
2017 Walk Behind Left Hand Yoke Speed Control
Regular price $0.00 USDRegular priceUnit price per
-
106.5#048-3000-00
Spherical Rod End-Outlaw Only
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
107#035-0007-98
2020 Walk-Behind Push Rod Assembly
Qty Used: 2Regular price $39.99 USDRegular priceUnit price per
-
108#035-0008-00
2020 Walk-Behind Control Pin
Qty Used: 3Regular price $29.99 USDRegular priceUnit price per
-
126#044-2018-00
3/8 E Clip
Qty Used: 6Regular price $1.99 USDRegular priceUnit price per
-
127#047-9000-00
Adjustable Yoke Male/Female
Qty Used: 1Regular price $13.20 USDRegular priceUnit price per
-
130#051-2023-02
44" x 3/16" black hose
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
131#051-2027-00
Clear 3/16" Magnum Air Line
Qty Used: 1Regular price $1.31 USDRegular priceUnit price per
-
141#064-3000-00
Brake Cable Walk Behind/Revolt
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
144#067-0015-00
Carbon Canister for Magnum/MZ
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
146#069-2020-00
Walk Behind Brake Handle--Black
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
147#069-7000-00
Rubber Brake Grip-cZT/ZT 2013
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
152#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
153#072-0002-00
5.5 mm Vinyl Hose Clamp
Qty Used: 3Regular price $2.19 USDRegular priceUnit price per
-
155#077-0002-00
2017? Walk Behind-Safety Switch
Qty Used: 2Regular price $21.88 USDRegular priceUnit price per
-
157#079-0028-00
2020 Walk Behind Side Panel-Right--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
158#079-0029-00
2020 Walk Behind Side Panel-Left--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
170#091-0412-18
2018 Walk Behind 603cc Back Plate Cluster
Qty Used: 1Regular price $16.49 USDRegular priceUnit price per
-
175#091-1020-00
Yellow Hydraulic Decal
Qty Used: 2Regular price $1.46 USDRegular priceUnit price per
-
180#201-1171-00
2020 Walk Behind Cross Support--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
