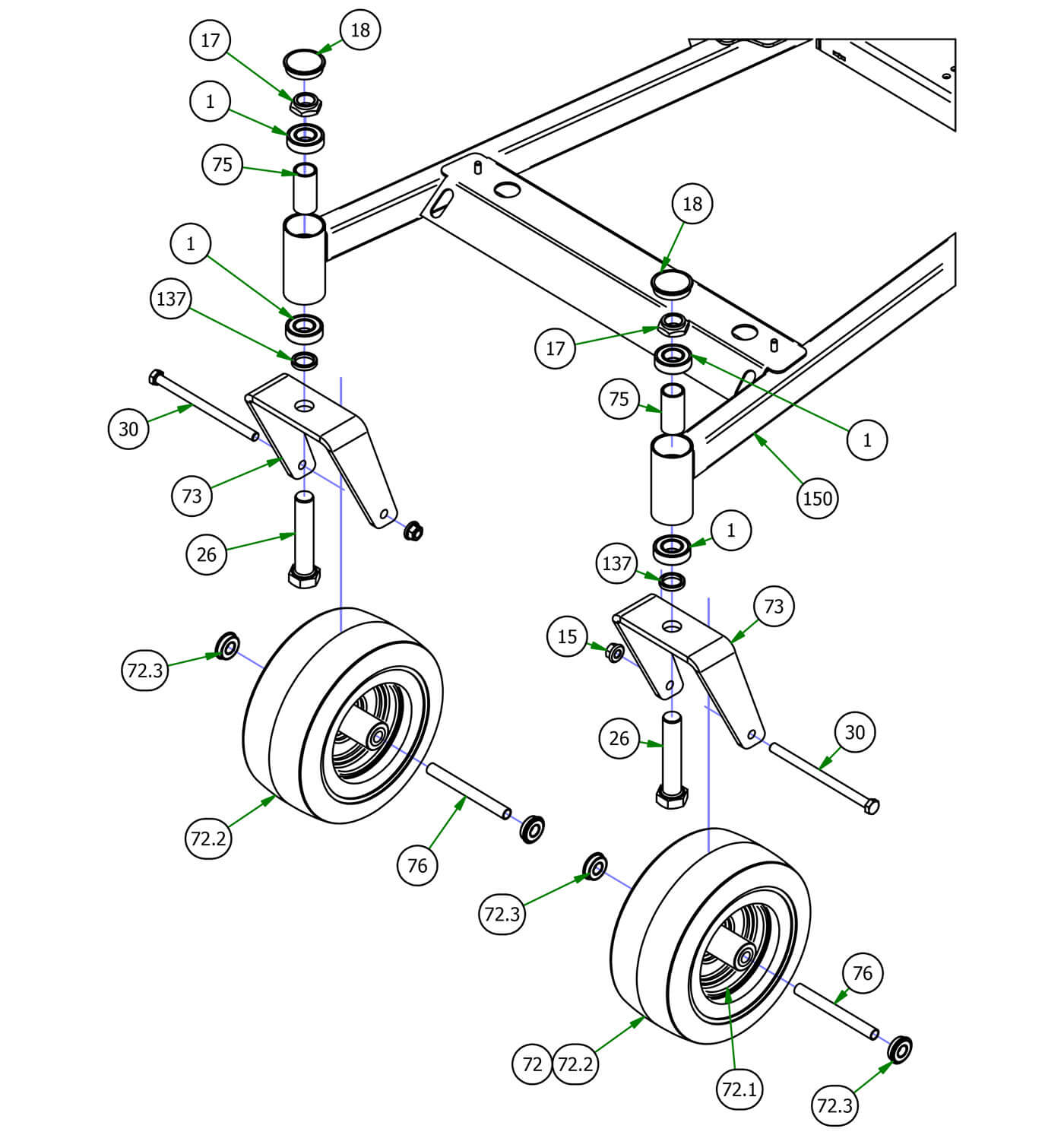

Front End
Parts Index
- 1 Caster Bearing (Qty 4)
- 15 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 17 1" Nylock Nut 1/2 Nut - Fine (Qty 2)
- 18 Bearing Retainer Cap (Qty 2)
- 26 1-14 X 5 BOLT GR 8 ZC YELLOW (Qty 2)
- 30 1/2-13 x 7 1/2 Grade 5 Hex Bolt (Qty 2)
- 72 11x6.00-5 Front Assembly - 2019 Magnum (Qty 2)
- 72.1 Front Wheel Only MZ (Qty 1)
- 72.2 11 x 4.00 - 5 Tire Only MZ (Qty 1)
- 72.3 Ball Bearing w/clip; 99502H-NR; 5/8" Bore (Qty 1)
- 73 Magnum Front Fork (Qty 2)
- 75 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 76 Front Wheel Spanner - MZ (Qty 2)
- 137 Spacer ( Front Fork and Suspension ) (Qty 2)
-
1#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
15#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
17#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
18#014-2025-00
Bearing Retainer Cap
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
26#018-0005-00
1-14 X 5 BOLT GR 8 ZC YELLOW
Qty Used: 2Regular price $5.89 USDRegular priceUnit price per
-
30#018-0035-00
1/2-13 x 7 1/2 Grade 5 Hex Bolt
Qty Used: 2Regular price $4.39 USDRegular priceUnit price per
-
72#022-8049-19
11x6.00-5 Front Assembly - 2019 Magnum
Qty Used: 2Regular price $92.89 USDRegular priceUnit price per
-
72.1#022-2013-00
Front Wheel Only MZ
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
72.2#022-2012-00
11 x 4.00 - 5 Tire Only MZ
Qty Used: 1Regular price $43.99 USDRegular priceUnit price per
-
72.3#022-7009-00
Ball Bearing w/clip; 99502H-NR; 5/8" Bore
Qty Used: 1Regular price $12.49 USDRegular priceUnit price per
-
73#023-0002-00
Magnum Front Fork
Qty Used: 2Regular price $29.19 USDRegular priceUnit price per
-
75#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
-
76#025-0008-00
Front Wheel Spanner - MZ
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
137#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
