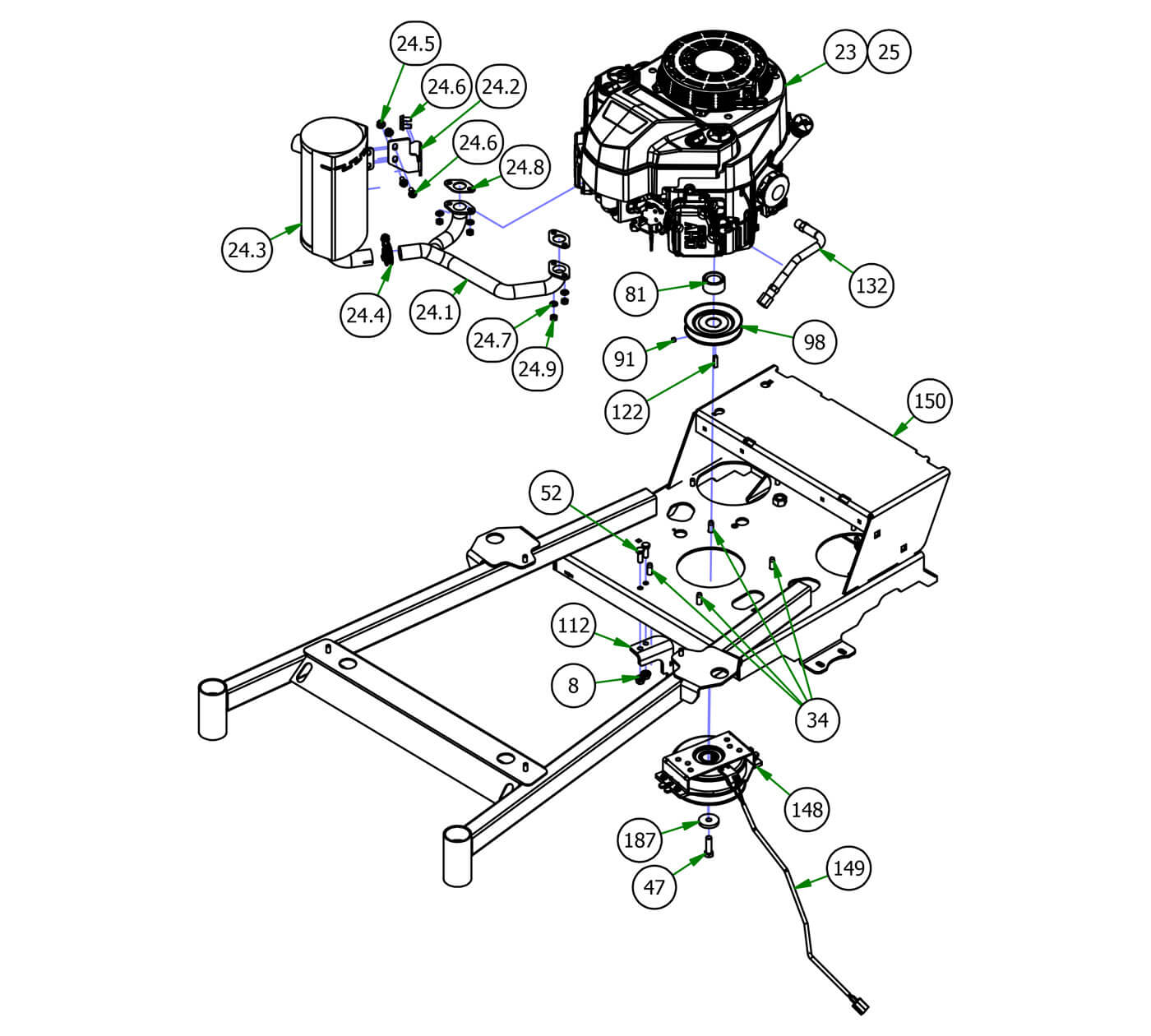

Engine
Parts Index
- 8 3/8 Nylock Flange Nut (Qty 2)
- 23 FS541V-BS28-S Kawasaki Walk Behind Engine-Pull Sta (Qty 1)
- 24 Exhaust Assembly-2018 Kawasaki Walk Behind (Qty 1)
- 24.1 Exhaust Pipe for 2018 Kawasaki Walk Behind (Qty 1)
- 24.2 Exhaust Bracket for 2018 Kawasaki Walk Behind (Qty 1)
- 24.3 Exhaust Flanged Bolt for 2018 Kawasaki Walk Behind (Qty 1)
- 24.4 Exhaust Band for 2018 Kawasaki Walk Behind (Qty 1)
- 24.5 Exhaust Nut for 2018 Kawasaki Walk Behind (Qty 1)
- 24.6 Exhaust Flanged Bolt for 2018 Kawasaki Walk Behind (Qty 1)
- 24.7 Exhaust Washer Spring / Muffler Mount Lock Washer (Qty 1)
- 24.8 Exhaust Gasket for 2018 Kawasaki Walk Behind (Qty 1)
- 24.9 M8 - 1.25 Stainless Steel Nut (Qty 1)
- 25 FS600 Kawasaki Walkbehind Engine Pull Start (Qty 1)
- 34 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 47 7/16-20 x 1 1/2 Fine Thread Bolt Gr8 (Qty 1)
- 52 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 81 1.130 ID X 1.75 OD X 1 Length (Qty 1)
- 91 5/16-24 x 1/4 Set Screw (Qty 1)
- 98 4 3/4 Motor Pulley - DB74-601 (Qty 1)
- 112 Warner Clutch Bracket (Qty 1)
- 122 1/4 x 1 Square Key (Qty 1)
- 132 16" Kawasaki Oil Drain (Qty 1)
- 148 Clutch For 1-1/8" Shaft (Qty 1)
- 149 Clutch Pigtail (Qty 1)
- 187 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC (Qty 1)
-
8#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
23#015-0541-00
FS541V-BS28-S Kawasaki Walk Behind Engine-Pull Sta
Qty Used: 1Regular price $2,599.00 USDRegular priceUnit price per
-
24#015-0543-00
Exhaust Assembly-2018 Kawasaki Walk Behind
Qty Used: 1Regular price $219.99 USDRegular priceUnit price per
-
24.1#015-0543-02
Exhaust Pipe for 2018 Kawasaki Walk Behind
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
24.2#015-0543-03
Exhaust Bracket for 2018 Kawasaki Walk Behind
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
24.324.6#015-0543-04
Exhaust Flanged Bolt for 2018 Kawasaki Walk Behind
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
24.4#015-0543-08
Exhaust Band for 2018 Kawasaki Walk Behind
Qty Used: 1Regular price $12.99 USDRegular priceUnit price per
-
24.5#015-0543-06
Exhaust Nut for 2018 Kawasaki Walk Behind
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
24.7#015-0543-05
Exhaust Washer Spring / Muffler Mount Lock Washer
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
24.8#015-0543-07
Exhaust Gasket for 2018 Kawasaki Walk Behind
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
24.9#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
25#015-0599-00
FS600 Kawasaki Walkbehind Engine Pull Start
Qty Used: 1Regular price $1,199.99 USDRegular priceUnit price per
-
34#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
47#018-5450-00
7/16-20 x 1 1/2 Fine Thread Bolt Gr8
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
52#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
81#025-5032-00
1.130 ID X 1.75 OD X 1 Length
Qty Used: 1Regular price $10.60 USDRegular priceUnit price per
-
91#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
98#033-5034-00
4 3/4 Motor Pulley - DB74-601
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
112#039-1220-00
Warner Clutch Bracket
Qty Used: 1Regular price $11.80 USDRegular priceUnit price per
-
122#042-6030-00
1/4 x 1 Square Key
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
132#051-5408-00
16" Kawasaki Oil Drain
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
-
149#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
187#019-0010-00
7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
Qty Used: 1Regular price $5.39 USDRegular priceUnit price per
