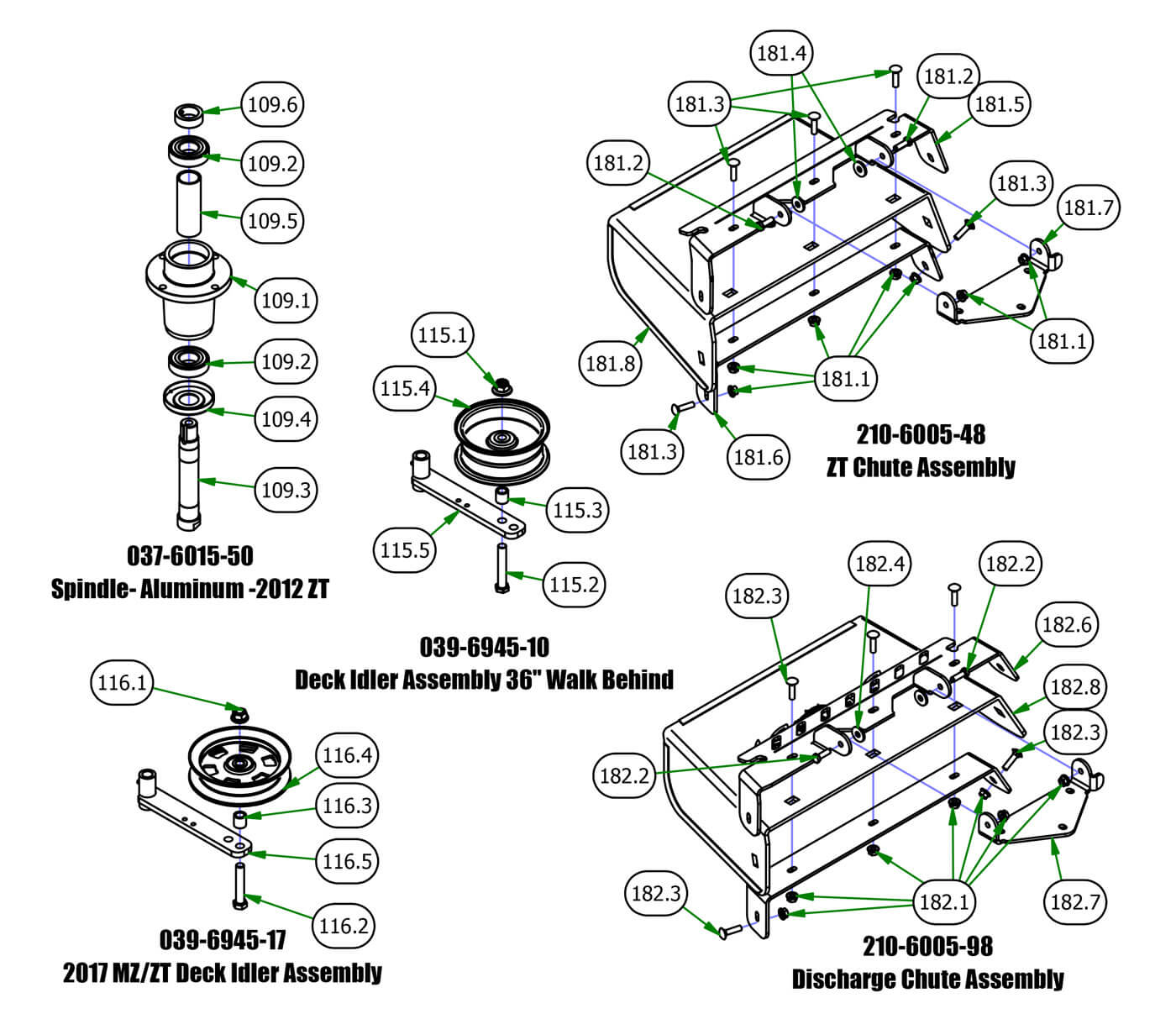

Deck Idler, Spindle, Chute
Parts Index
- 109.1 Aluminum Spindle Housing-2010 (Qty 1)
- 109.2 OBSOLETE USE 037-6029-00 (Qty 2)
- 109.3 Short Spindle Shaft for Locking Collar- No Grooved (Qty 1)
- 109.4 Dust Cover for 037-8000-00 - (Qty 1)
- 109.5 Tube Spacer for Spindle Shaft (Qty 1)
- 109.6 Tube Spacer for Spindle Shaft (Qty 1)
- 115.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 115.2 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 115.3 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 115.4 Double Bearing Flat Idler (Qty 1)
- 115.5 Idler Bracket (Qty 1)
- 116.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 116.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 116.3 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 116.4 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 116.5 Idler Bracket (Qty 1)
- 181.1 5/16-18 Nylon Flange Nut (Qty 7)
- 181.2 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 181.3 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 181.4 .360 ID Plastic Washer (Qty 2)
- 181.5 48/52 Discharge Top Bracket (Qty 1)
- 181.6 48/52 Discharge Lower Bracket (Qty 1)
- 181.7 Discharge Chute Hanger-Deck (Qty 1)
- 181.8 Discharge Chute (Rubber Component) (Qty 1)
- 182.1 5/16-18 Nylon Flange Nut (Qty 7)
- 182.2 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 182.3 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 182.4 .360 ID Plastic Washer (Qty 2)
- 182.5 60 Discharge Lower Bracket (Qty 1)
- 182.6 60 Discharge Chute Upper (Qty 1)
- 182.7 Discharge Chute Hanger-Deck (Qty 1)
- 182.8 Discharge Chute (Rubber Component) (Qty 1)
-
109.1#037-6017-50
Aluminum Spindle Housing-2010
Qty Used: 1Regular price $119.36 USDRegular priceUnit price per
-
109.2#037-6023-00
OBSOLETE USE 037-6029-00
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-
109.3#037-6026-00
Short Spindle Shaft w/Locking Collar- No Grooved
Qty Used: 1Regular price $78.29 USDRegular priceUnit price per
-
109.4#037-8002-00
Dust Cover for 037-8000-00
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
109.5109.6#037-8050-00
Tube Spacer for Spindle Shaft
Qty Used: 1Regular price $7.90 USDRegular priceUnit price per
-
115.1116.1#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
115.2#018-7016-00
1/2-13 X 3 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
115.3116.3#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
115.4#033-5000-00
Double Bearing Flat Idler
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
115.5116.5#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
116.2#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
116.4#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
181.1182.1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
181.2182.2#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
181.3182.3#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
181.4182.4#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
181.5#039-4870-00
48/52 Discharge Top Bracket
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
-
181.6#039-4871-00
48/52 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
181.7182.7#206-6017-00
Discharge Chute Hanger-Deck
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
181.8182.8#210-6005-00
Discharge Chute (Rubber Component)
Qty Used: 1Regular price $55.99 USDRegular priceUnit price per
-
182.5#039-4863-00
60 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
182.6#039-4864-00
60 Discharge Chute Upper
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
