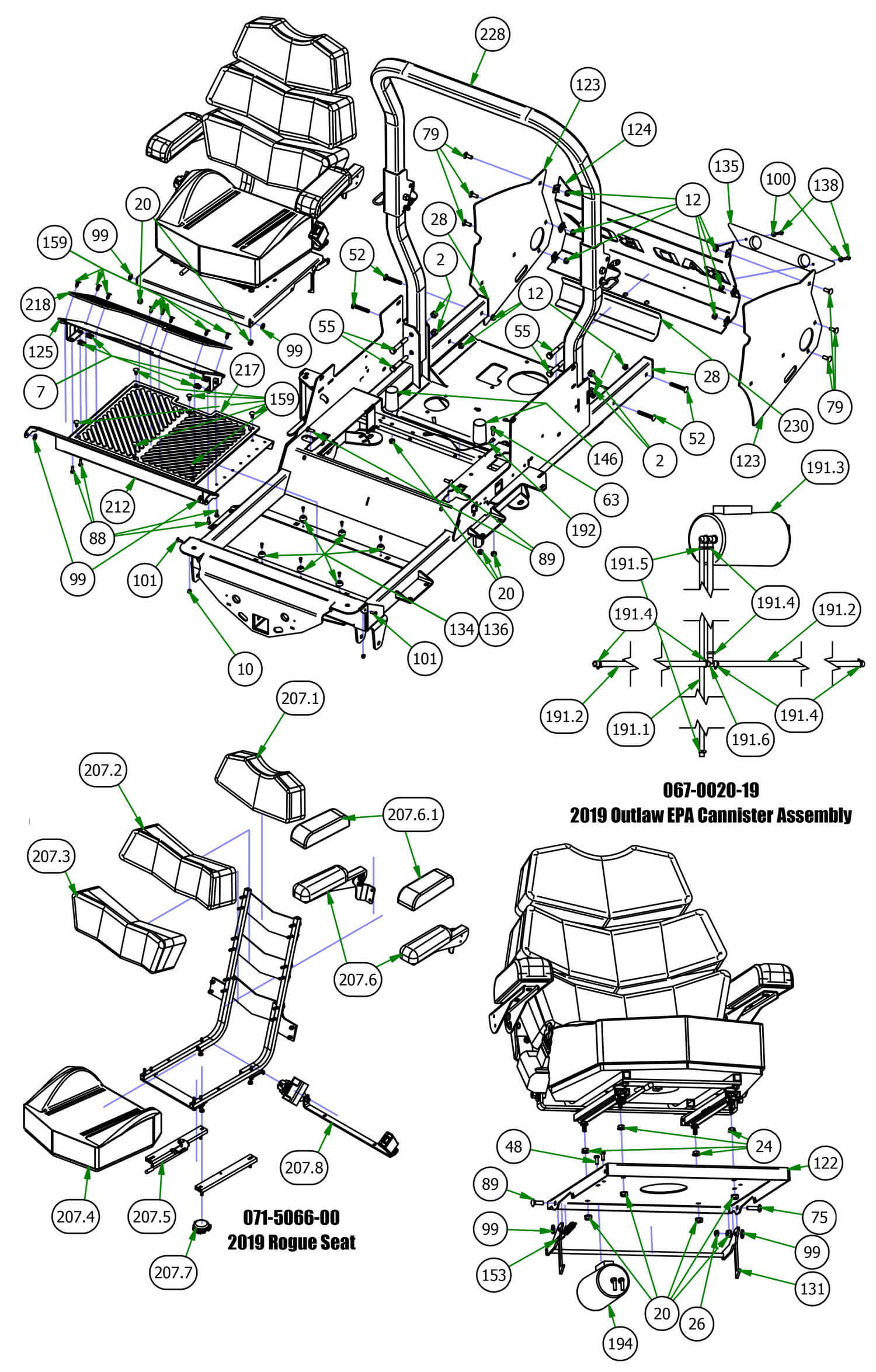

Covers & Seat
Parts Index
- 2 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 4)
- 7 1/4-20 Cage Nut (Qty 4)
- 10 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 12 3/8 Nylock Flange Nut (Qty 10)
- 20 5/16-18 Nylon Flange Nut (Qty 11)
- 24 5/16-18 Hex Flange Nuts Zinc w (Qty 4)
- 26 5/16-18 Nylock Jam Nut (Qty 1)
- 28 1 1/2x 3 Frame Plug (Qty 2)
- 48 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 52 3/8 x 2 1/2 Carriage Bolt (Qty 4)
- 55 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 4)
- 63 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 75 5/16-18 X 1-1/4 Carriage Bolt (Qty 1)
- 79 3/8 x 1 Carriage Bolt (Qty 6)
- 88 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 4)
- 89 5/16-18 X 1 Carriage Bolt Zinc (Qty 3)
- 99 .360 ID Plastic Washer (Qty 6)
- 100 1/4 USS Flat Washer Zinc (Qty 2)
- 101 1/4 x 3/4 Carriage Bolt (Qty 2)
- 122 Seat Plate--Orange (Qty 1)
- 123 2019 Vertical Suspension Rear Cover Side--Orange (Qty 2)
- 124 2019 Vertical Rear Cover Tailgate-Orange (Qty 1)
- 125 Adjustable Foot Plate--Orange (Qty 1)
- 131 Seat Latch Rod (Qty 1)
- 134 Button Bumper (Qty 6)
- 135 Bumper (Qty 1)
- 136 10 X 1/2 Pan Phil a T/S Zinc (Qty 6)
- 138 1/4 x 1 Hex Head Tek Screw (Qty 2)
- 146 Bumper (Seat) (Qty 2)
- 153 Brake Spring (Qty 1)
- 159 Ratchet Fastener - Floorboard (Qty 14)
- 191.1 66" 3/16 Vinyl EPA Line (Qty 1)
- 191.2 38" 1/4 Vinyl Tubing (Qty 3)
- 191.3 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 191.4 MZ Tank Hose Clamp 1/4 Vinyl (Qty 6)
- 191.5 3/16" Vinyl Hose Clamp (Qty 2)
- 191.6 Fuel Line T (Qty 1)
- 192 Seat Cable (Qty 1)
- 194 2019 R-Series EPA Cannister Assembly (Qty 1)
- 206 OBSOLETE USE 070-5375-00 (Qty 1)
- 207 2019 Rogue Seat (Qty 1)
- 207.1 Back Pad # 1 for 071-5066-00 (Qty 1)
- 207.2 Back Pad # 2 for 071-5066-00 (Qty 1)
- 207.3 Back Pad # 3 for 071-5066-00 (Qty 1)
- 207.4 Seat Pad Assembly for 071-5066-00 (Qty 1)
- 207.5 Seat Rails for Outlaw Seat/2020 ZT Elite/ZTAvenger (Qty 1)
- 207.6 Arm Rest Kit for 071-5066-00 (Qty 1)
- 207.6.1 Pair of Arm Pads for the (Qty 1)
- 207.7 2014 Magnum Seat Switch (Qty 1)
- 207.8 Seat Belt for 071-5066-00 (Qty 1)
- 212 2019 Outlaw Floorboard--Orange (Qty 1)
- 217 Mat (Floor) (Qty 1)
- 218 Mat (Foot Plate) (Qty 1)
- 228 2019 2x2 R SERIES Folding Rops (Qty 1)
- 230 Heat Shield (Fiberglass Adhesive) (Qty 1)
-
2#013-0005-00
1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
7#013-0054-00
1/4-20 Cage Nut
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
10#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
12#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 10Regular price $1.49 USDRegular priceUnit price per
-
20#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 11Regular price $0.79 USDRegular priceUnit price per
-
24#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
26#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
28#014-9003-00
1 1/2x 3 Frame Plug
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
48#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
52#018-0044-00
3/8 x 2 1/2 Carriage Bolt
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
55#018-0050-00
1/2-13 X 3.25 Hex Bolt-Grade 5
Qty Used: 4Regular price $1.19 USDRegular priceUnit price per
-
63#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
75#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
79#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
88#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
89#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
99#019-6042-00
.360 ID Plastic Washer
Qty Used: 6Regular price $0.00 USDRegular priceUnit price per
-
100#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
101#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
122#026-2019-00
Seat Plate--Orange
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
123#026-2209-00
2019 Vertical Suspension Rear Cover Side--Orange
Qty Used: 2Regular price $225.56 USDRegular priceUnit price per
-
124#026-2221-00
2019 Vertical Rear Cover Tailgate-Orange
Qty Used: 1Regular price $225.56 USDRegular priceUnit price per
-
125#026-2230-00
Adjustable Foot Plate--Orange
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
131#028-0090-00
Seat Latch Rod
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
134#029-4010-00
Button Bumper
Qty Used: 6Regular price $1.31 USDRegular priceUnit price per
-
-
136#030-3050-00
10 X 1/2 Pan Phil a T/S Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
138#030-7040-00
1/4 x 1 Hex Head Tek Screw
Qty Used: 2Regular price $1.00 USDRegular priceUnit price per
-
146#032-0001-00
Bumper (Seat)
Qty Used: 2Regular price $21.88 USDRegular priceUnit price per
-
153#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
159#040-6080-00
Ratchet Fastener - Floorboard
Qty Used: 14Regular price $2.91 USDRegular priceUnit price per
-
191.1#051-2025-66
66" 3/16 Vinyl EPA Line
Qty Used: 1Regular price $12.39 USDRegular priceUnit price per
-
191.2#051-8072-38
38" 1/4 Vinyl Tubing
Qty Used: 3Regular price $26.53 USDRegular priceUnit price per
-
191.3#067-0020-00
Carbon Canister ZT,CZT,Outlaw
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
191.4#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 6Regular price $1.45 USDRegular priceUnit price per
-
191.5#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
191.6#073-8068-00
Fuel Line T
Qty Used: 1Regular price $8.82 USDRegular priceUnit price per
-
192#064-8081-00
Seat Cable
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
194#067-0020-19
2019 Outlaw EPA Cannister Assembly
Qty Used: 1Regular price $39.95 USDRegular priceUnit price per
-
206#070-5372-19
OBSOLETE USE 070-5375-00
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
207#071-5066-00
2019 Rogue Seat
Qty Used: 1Regular price $729.99 USDRegular priceUnit price per
-
207.1#071-5085-00
Back Pad # 1 for 071-5066-00
Qty Used: 1Regular price $159.99 USDRegular priceUnit price per
-
207.2#071-5086-00
Back Pad # 2 for 071-5066-00
Qty Used: 1Regular price $159.99 USDRegular priceUnit price per
-
207.3#071-5087-00
Back Pad # 3 for 071-5066-00
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
207.4#071-5088-00
Seat Pad Assembly for 071-5066-00
Qty Used: 1Regular price $229.99 USDRegular priceUnit price per
-
207.5#071-5015-00
Seat Rails for Outlaw Seat/2020 ZT Elite/ZTAvenger
Qty Used: 1Regular price $87.56 USDRegular priceUnit price per
-
207.6#071-5071-00
Arm Rest Kit for 071-5066-00
Qty Used: 1Regular price $179.99 USDRegular priceUnit price per
-
207.6.1#071-5062-00
Pair of Arm Pads for the
Qty Used: 1Regular price $74.37 USDRegular priceUnit price per
-
207.7#071-8062-00
2014 Magnum Seat Switch
Qty Used: 1Regular price $19.68 USDRegular priceUnit price per
-
207.8#071-5072-00
Seat Belt for 071-5066-00
Qty Used: 1Regular price $132.69 USDRegular priceUnit price per
-
212#079-3155-00
2019 Outlaw Floorboard--Orange
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
217#081-0050-00
Mat (Floor)
Qty Used: 1Regular price $72.99 USDRegular priceUnit price per
-
218#081-0051-00
Mat (Foot Plate)
Qty Used: 1Regular price $72.99 USDRegular priceUnit price per
-
228#089-0006-00
2019 2x2 R SERIES Outlaw Folding Rops
Qty Used: 1Regular price $436.43 USDRegular priceUnit price per
-
230#091-4050-00
Heat Shield (Fiberglass Adhesive)
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
