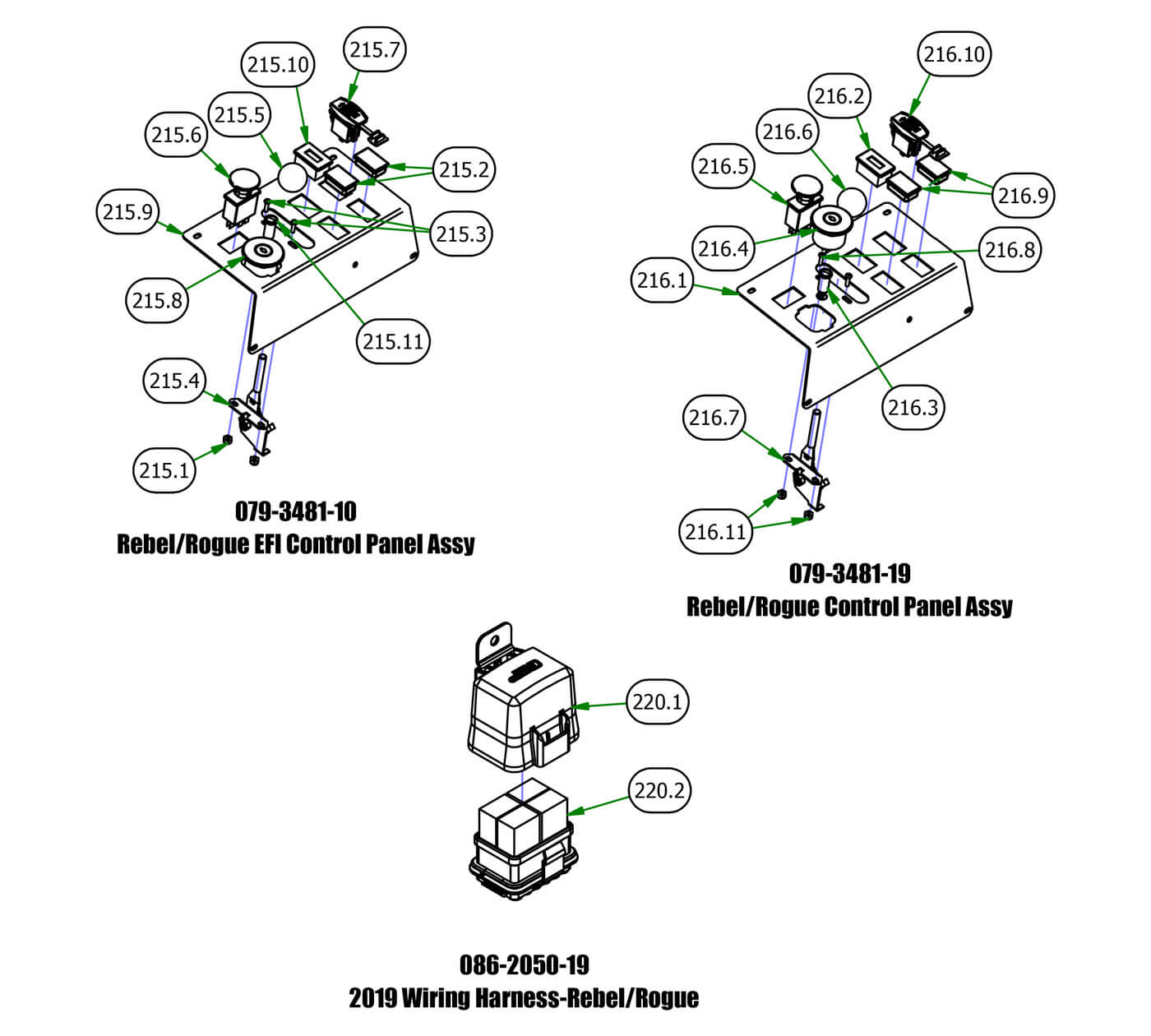

Control Panel & Wiring Harness
Parts Index
- 215.1 10-24 Nylon Insert Locknut Zin (Qty 2)
- 215.2 Light Plug (Qty 2)
- 215.3 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 215.4 Universal Throttle Head - 2012 (Qty 1)
- 215.5 Throttle / Brake Head Ball (Qty 1)
- 215.6 PTO Engager-Switch for Blades (Qty 1)
- 215.7 USB Port (Qty 1)
- 215.8 Ignition Switch (Qty 1)
- 215.9 Control Panel--Orange (Qty 1)
- 215.10 Tachometer-Kohler/Yamaha EFI (Qty 1)
- 215.11 Oil Light (Qty 1)
- 216.1 Control Panel--Orange (Qty 1)
- 216.2 Tachometer-N310-0100-1018 (Qty 1)
- 216.3 Oil Light (Qty 1)
- 216.4 Ignition Switch (Qty 1)
- 216.5 PTO Engager-Switch for Blades (Qty 1)
- 216.6 Throttle / Brake Head Ball (Qty 1)
- 216.7 Universal Throttle Head - 2012 (Qty 1)
- 216.8 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 216.9 Light Plug (Qty 2)
- 216.10 USB Port (Qty 1)
- 216.11 10-24 Nylon Insert Locknut Zin (Qty 2)
- 220.1 2019 Relay Cap Kit (Qty 1)
- 220.2 2019 Relay Terminal (Qty 4)
-
215.1216.11#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
215.2216.9#018-1040-00
Light Plug
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
215.3216.8#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
215.4216.7#055-2012-00
Universal Throttle Head - 2012
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
215.5216.6#055-2013-00
Throttle Head Ball
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
215.6216.5#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
-
215.8216.4#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
215.9216.1#079-3481-00
Control Panel--Orange
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
215.10#083-4050-00
Tachometer-Kohler/Yamaha EFI
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
-
216.2#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
220.1#086-1202-01
2019 Relay Cap Kit
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
220.2#086-1202-19
2019 Relay Terminal
Qty Used: 4Regular price $23.34 USDRegular priceUnit price per
