999cc Kawasaki FX-1000

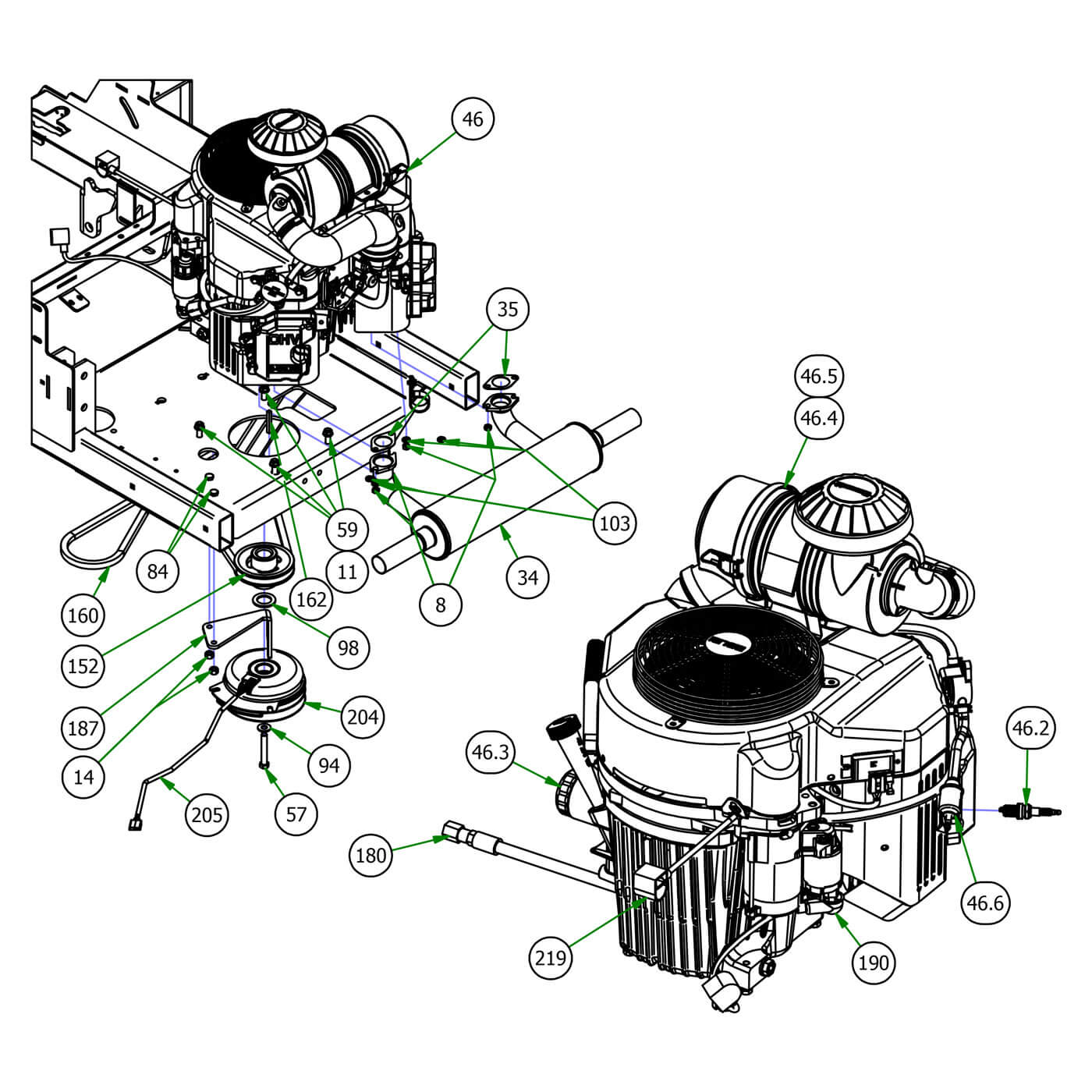

Parts Index
- 8 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 11 3/8-16 Hex Flange Nuts Zinc w/ (Qty 4)
- 14 3/8-16 Hex Nuts Zinc (Qty 2)
- 34 2019 Rebel/Rogue Kawasaki 1000 Muffler (Qty 1)
- 35 Exhaust Gasket for FX1000V Kawasaki (Qty 2)
- 46 2019 FX1000V Kawasaki Engine (Qty 1)
- 46.2 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 46.3 Kawasaki Oil Filter (Qty 1)
- 46.4 Canister Air Filter - Inner (Qty 1)
- 46.5 Canister Air Fil Outer2010&Old (Qty 1)
- 46.6 Universal Inline Fuel Filter (Qty 1)
- 49 M6-1.0x12mm Bolt 8.8 (Qty 1)
- 57 7/16-20 x 2 3/4 Hex C/S GR 8 Yellow Zinc (Qty 1)
- 59 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 82 3/8 x 1 1/2 Bolt (Qty 4)
- 84 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 94 3/8 USS Flat Washer Zinc (Qty 1)
- 98 1.140x1.750x .132 Flat Washer (Qty 1)
- 100 1/4 USS Flat Washer Zinc (Qty 1)
- 103 5/16 Lock washer Zinc (Qty 4)
- 152 4 3/4 Motor Pulley (Qty 1)
- 160 2019 & up Rogue Pump Belt 68" (Qty 1)
- 162 1/4 X 2 Square Key Stock (Qty 1)
- 180 12" Kawasaki Oil Drain (Qty 1)
- 187 PTO Engager Holder-Clutch--Plated (Qty 1)
- 190 24 Red Battery Cable (Qty 1)
- 204 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 205 Clutch Pigtail (Qty 1)
- 206 OBSOLETE USE 070-5375-00 (Qty 1)
- 208 Diesel Hydraulic Hose Clamp (Qty 1)
- 219 Rebel, Rogue Ground Wire (Qty 1)
- 221 2019 Harness Adaptor-R-Series FX/35KA (Qty 1)
-
8#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
11#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
14#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
34#015-1010-00
2019 Rebel/Rogue Kawasaki 1000 Muffler
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
35#015-1010-01
Exhaust Gasket for FX1000V Kawasaki
Qty Used: 2Regular price $7.99 USDRegular priceUnit price per
-
46#015-9911-00
2019 FX1000V Kawasaki Engine
Qty Used: 1Regular price $2,799.99 USDRegular priceUnit price per
-
46.2#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
46.3#063-8017-00
Kawasaki Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
46.4#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
46.5#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
46.6#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
49#018-0025-00
M6-1.0x12mm Bolt 8.8
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
57#018-0074-00
7/16-20 x 2 3/4 Hex C/S GR 8 Yellow Zinc
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
59#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
82#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
84#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
94#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
98#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
100#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
103#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
152#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
160#041-8051-00
2019 & up Rogue Pump Belt 68"
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
162#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
180#051-5407-00
12" Kawasaki Oil Drain
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
187#057-5906-00
PTO Engager Holder-Clutch--Plated
Qty Used: 1Regular price $19.32 USDRegular priceUnit price per
-
190#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
-
205#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
206#070-5372-19
OBSOLETE USE 070-5375-00
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
208#072-5000-00
Diesel Hydraulic Hose Clamp
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
219#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
221#086-9002-19
2019 Harness Adaptor-R-Series FX/35KA
Qty Used: 1Regular price $18.96 USDRegular priceUnit price per
