993cc Vanguard EFI 37HP

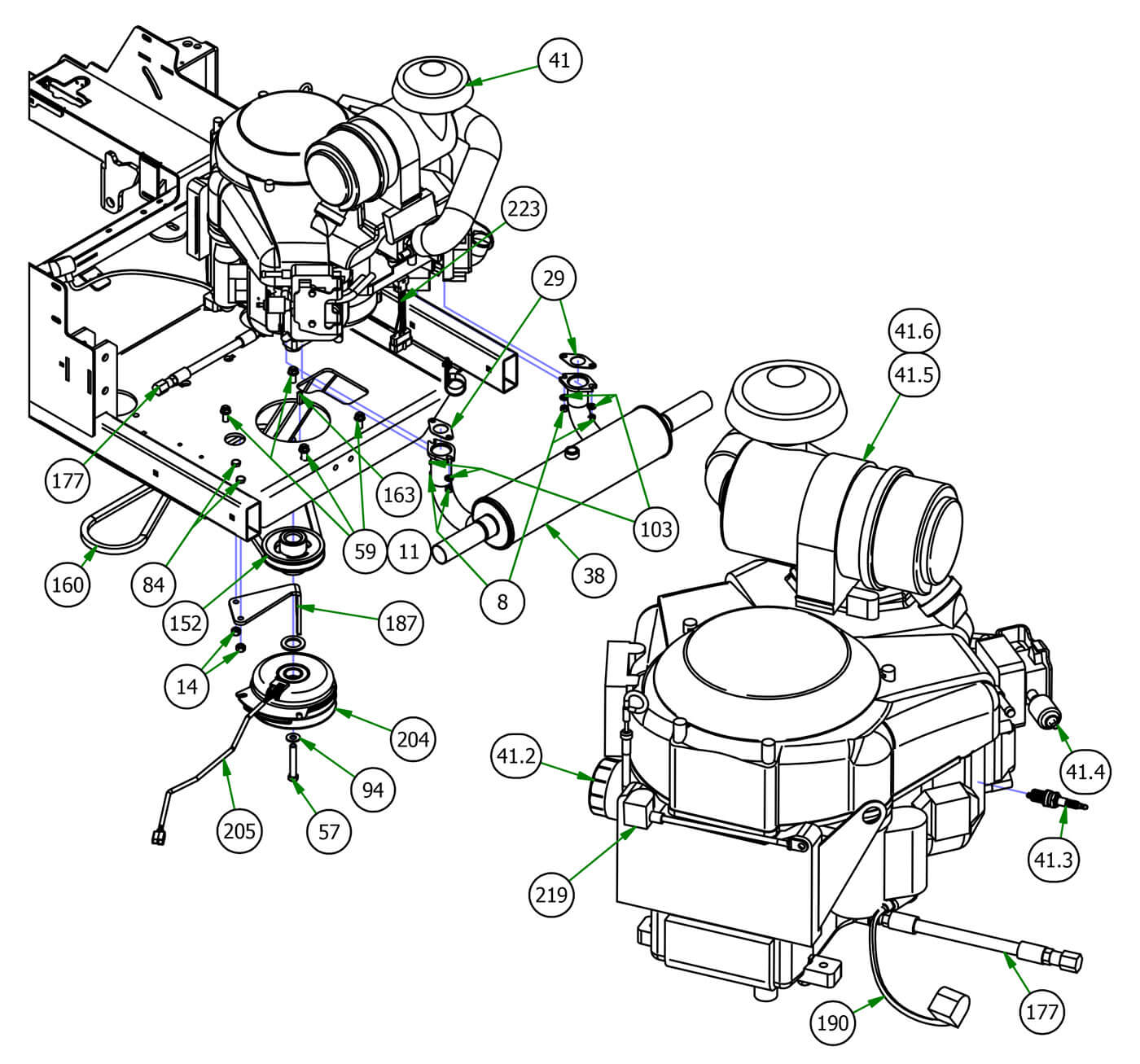

Parts Index
- 8 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 11 3/8-16 Hex Flange Nuts Zinc w/ (Qty 4)
- 14 3/8-16 Hex Nuts Zinc (Qty 2)
- 29 Exhaust Gasket for 23 (Qty 2)
- 38 2019 Rebel/Rogue Vanguard 993 Exhaust& 999cc EFI (Qty 1)
- 41 2019 Vanguard EFI 37HP 993cc Vertical Shaft (Qty 1)
- 41.3 Spark Plug-Kohler/Briggs (Qty 2)
- 41.4 Universal Inline Fuel Filter (Qty 1)
- 41.2 Briggs Oil Filter (Qty 1)
- 41.6 Canister Air Fil Outer2010&Old (Qty 1)
- 41.5 Canister Air Filter - Inner (Qty 1)
- 49 M6-1.0x12mm Bolt 8.8 (Qty 1)
- 57 7/16-20 x 2 3/4 Hex C/S GR 8 Yellow Zinc (Qty 1)
- 59 M6-1.0x12mm Bolt 8.8 (Qty 4)
- 82 3/8 x 1 1/2 Bolt (Qty 4)
- 84 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 94 3/8 USS Flat Washer Zinc (Qty 1)
- 98 1.140x1.750x .132 Flat Washer (Qty 1)
- 100 1/4 USS Flat Washer Zinc (Qty 1)
- 103 5/16 Lock washer Zinc (Qty 4)
- 152 4 3/4 Motor Pulley (Qty 1)
- 160 2019 & up Rogue Pump Belt 68" (Qty 1)
- 163 1/4 x 1 Square Key (Qty 1)
- 177 14mm Drain Hose-36hp Vanguard (Qty 1)
- 187 PTO Engager Holder-Clutch--Plated (Qty 1)
- 190 24 Red Battery Cable (Qty 1)
- 204 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 205 Clutch Pigtail (Qty 1)
- 206 OBSOLETE USE 070-5375-00 (Qty 1)
- 208 Diesel Hydraulic Hose Clamp (Qty 1)
- 219 Rebel, Rogue Ground Wire (Qty 1)
- 223 2019 Harness Adaptor- Vanguard 37 EFI Vert/Horiz (Qty 1)
-
8#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
11#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
14#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
29#015-0025-00
Exhaust Gasket for 23
Qty Used: 2Regular price $8.74 USDRegular priceUnit price per
-
38#015-1014-00
2019 Rebel/Rogue Vanguard 993 Exhaust& 999cc EFI
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
41#015-3001-00
2019 Vanguard EFI 37HP 993cc Vertical Shaft
Qty Used: 1Regular price $2,999.99 USDRegular priceUnit price per
-
41.3#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
41.4#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
41.2#063-8018-00
Briggs Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
41.6#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
41.5#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
4959#018-0025-00
M6-1.0x12mm Bolt 8.8
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
57#018-0074-00
7/16-20 x 2 3/4 Hex C/S GR 8 Yellow Zinc
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
82#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
84#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
94#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
98#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
100#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
103#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
152#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
160#041-8051-00
2019 & up Rogue Pump Belt 68"
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
163#042-6030-00
1/4 x 1 Square Key
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
177#051-5402-00
14mm Drain Hose-36hp Vanguard
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
187#057-5906-00
PTO Engager Holder-Clutch--Plated
Qty Used: 1Regular price $19.32 USDRegular priceUnit price per
-
190#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
-
205#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
206#070-5372-19
OBSOLETE USE 070-5375-00
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
208#072-5000-00
Diesel Hydraulic Hose Clamp
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
219#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
223#086-9013-00
2019 Harness Adaptor- Vanguard 37 EFI Vert/Horiz
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
