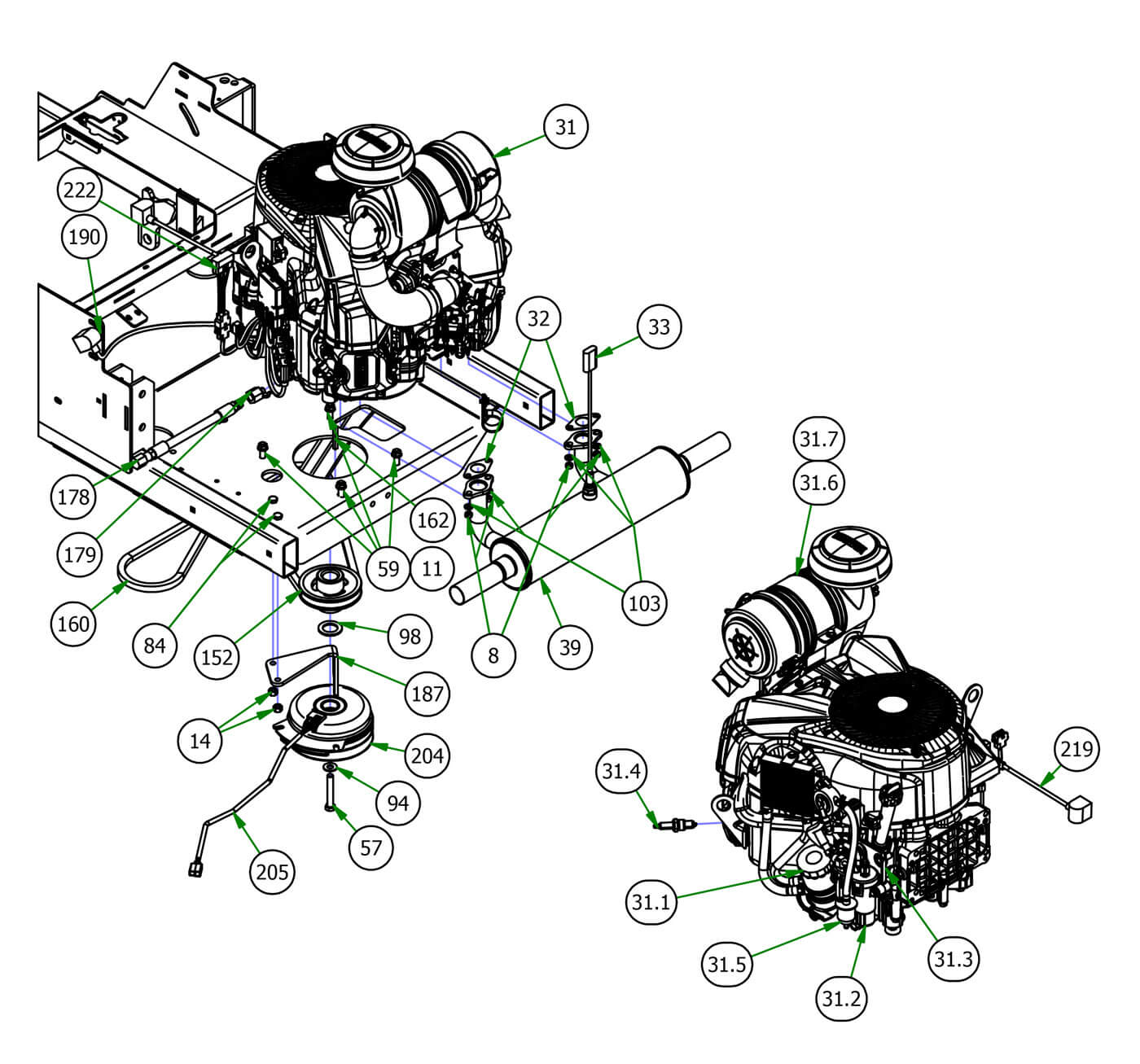

824cc Yamaha EFI 33HP
Parts Index
- 8 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 11 3/8-16 Hex Flange Nuts Zinc w/ (Qty 4)
- 14 3/8-16 Hex Nuts Zinc (Qty 2)
- 31 2017 Yamaha Engine-33hp (Qty 1)
- 31.1 2017 Yamaha Oil Filter (Qty 1)
- 31.2 2017 Yamaha High Pressure Fuel Pump (Qty 1)
- 31.3 2017 Yamaha Fuel Pump Bracket (Qty 1)
- 31.4 2017 Yamaha Spark Plug (Qty 2)
- 31.5 OBSOLETE USE 063-6000-00 (Qty 1)
- 31.6 Canister Air Fil Outer2010&Old (Qty 1)
- 31.7 Canister Air Filter - Inner (Qty 1)
- 32 2017 Yamaha Exhuast Gasket (Qty 2)
- 33 2017 Yamaha O2 Sensor (Qty 1)
- 39 2019 Rebel/Rogue Yamaha 824 EFI/Carb Muffler (Qty 1)
- 49 M6-1.0x12mm Bolt 8.8 (Qty 1)
- 57 7/16-20 x 2 3/4 Hex C/S GR 8 Yellow Zinc (Qty 1)
- 59 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 82 3/8 x 1 1/2 Bolt (Qty 4)
- 84 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 94 3/8 USS Flat Washer Zinc (Qty 1)
- 98 1.140x1.750x .132 Flat Washer (Qty 1)
- 100 1/4 USS Flat Washer Zinc (Qty 1)
- 103 5/16 Lock washer Zinc (Qty 4)
- 152 4 3/4 Motor Pulley (Qty 1)
- 160 2019 & up Rogue Pump Belt 68" (Qty 1)
- 162 1/4 X 2 Square Key Stock (Qty 1)
- 178 Yamaha Oil Drain/ 2019 Rebel Kohler Oil Drain (Qty 1)
- 179 2019 Yamaha EFI Oil Drain Adaptor (Qty 1)
- 187 PTO Engager Holder-Clutch--Plated (Qty 1)
- 190 24 Red Battery Cable (Qty 1)
- 204 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 205 Clutch Pigtail (Qty 1)
- 206 OBSOLETE USE 070-5375-00 (Qty 1)
- 208 Diesel Hydraulic Hose Clamp (Qty 1)
- 219 Starter to Chassis Cable (Qty 1)
- 222 OBSOLETE use 086-9006-21 (Qty 1)
-
8#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
11#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
14#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
31#015-0053-00
2017 Yamaha Engine-33hp
Qty Used: 1Regular price $2,999.00 USDRegular priceUnit price per
-
31.1#015-0053-02
2017 Yamaha Oil Filter
Qty Used: 1Regular price $23.99 USDRegular priceUnit price per
-
31.2#015-0053-03
2017 Yamaha High Pressure Fuel Pump
Qty Used: 1Regular price $499.99 USDRegular priceUnit price per
-
31.3#015-0053-04
2017 Yamaha Fuel Pump Bracket
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
31.4#015-0053-06
2017 Yamaha Spark Plug
Qty Used: 2Regular price $7.99 USDRegular priceUnit price per
-
31.5#015-0053-21
OBSOLETE USE 063-6000-00
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
31.6#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
31.7#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
32#015-0053-01
2017 Yamaha Exhuast Gasket
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
33#015-0053-05
2017 Yamaha O2 Sensor
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
39#015-1015-00
2019 Rebel/Rogue Yamaha 824 EFI/Carb Muffler
Qty Used: 1Regular price $108.90 USDRegular priceUnit price per
-
49#018-0025-00
M6-1.0x12mm Bolt 8.8
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
57#018-0074-00
7/16-20 x 2 3/4 Hex C/S GR 8 Yellow Zinc
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
59#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
82#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
84#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
94#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
98#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
100#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
103#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
152#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
160#041-8051-00
2019 & up Rogue Pump Belt 68"
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
162#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
178#051-5403-00
Yamaha Oil Drain/ 2019 Rebel Kohler Oil Drain
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
179#051-5406-00
2019 Yamaha EFI Oil Drain Adaptor
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
187#057-5906-00
PTO Engager Holder-Clutch--Plated
Qty Used: 1Regular price $19.32 USDRegular priceUnit price per
-
190#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
-
205#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
206#070-5372-19
OBSOLETE USE 070-5375-00
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
208#072-5000-00
Diesel Hydraulic Hose Clamp
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
219#086-0004-00

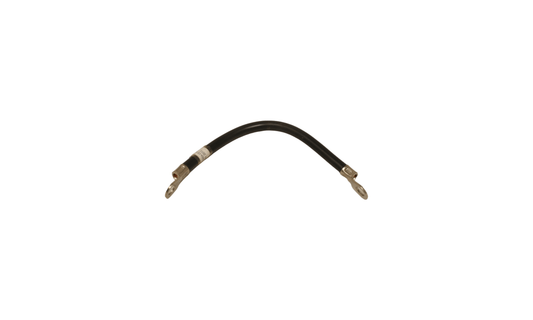

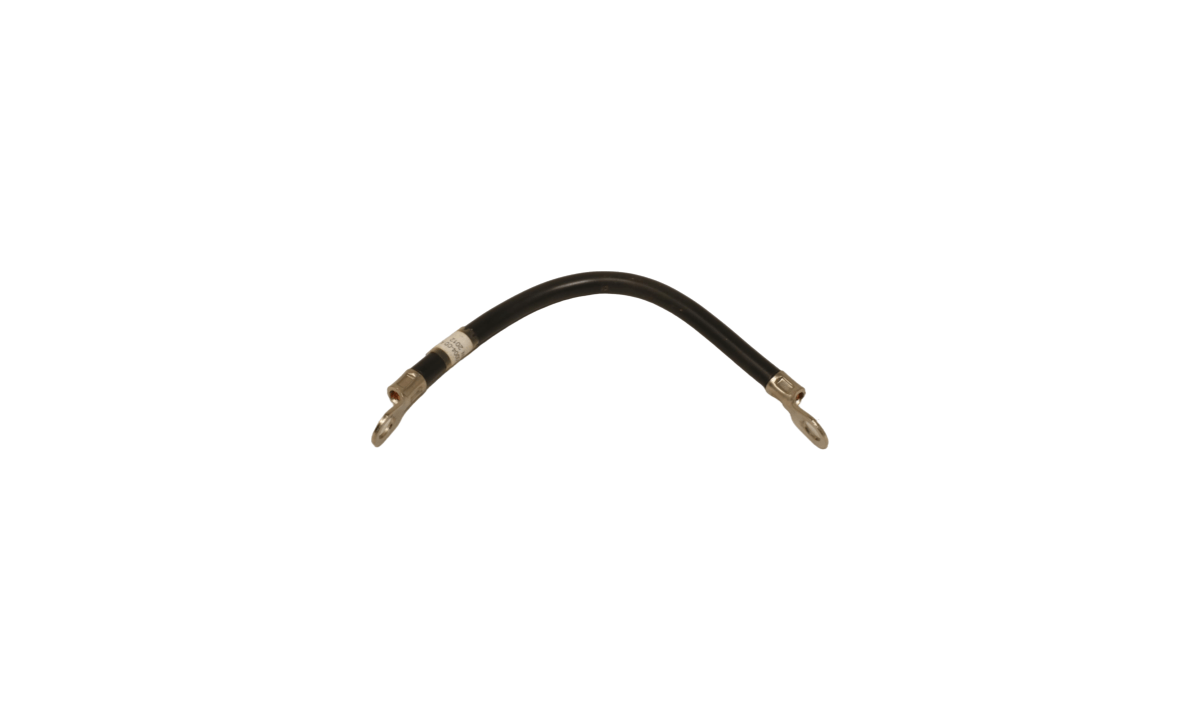

Starter to Chassis Cable
Qty Used: 1Regular price $5.44 USDRegular priceUnit price per
-
222#086-9006-19
OBSOLETE use 086-9006-21
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
