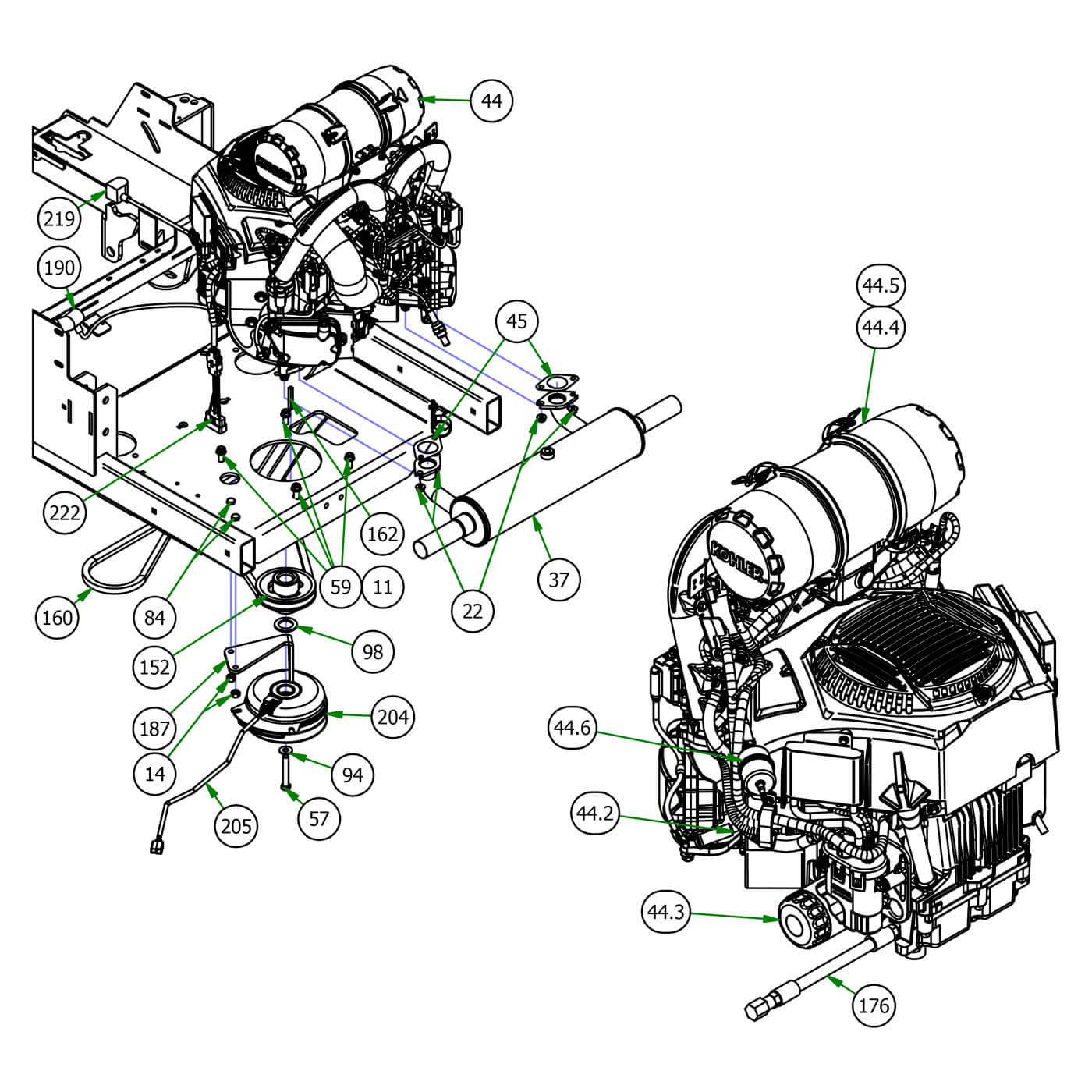

824cc Kohler EFI 33HP
Parts Index
- 11 3/8-16 Hex Flange Nuts Zinc w/ (Qty 4)
- 14 3/8-16 Hex Nuts Zinc (Qty 2)
- 22 M8 Nut fits the 015-9990-00/015-9991-00 (Qty 4)
- 37 2019 Rogue Kohler 824 EFI Muffler (Qty 1)
- 44 2019 Kohler 33HP EFI 824cc ECV 880 (Qty 1)
- 44.2 Spark Plug-Kohler/Briggs (Qty 2)
- 44.3 Oil Filter - 27 & 30 Kohler (Qty 1)
- 44.4 Canister Air Filter - Inner (Qty 1)
- 44.5 Canister Air Fil Outer2010&Old (Qty 1)
- 44.6 25/26 HP Koh Fuel Filter ZT/MZ (Qty 1)
- 45 Exhaust Gasket for 824 EFI (Qty 2)
- 49 M6-1.0x12mm Bolt 8.8 (Qty 1)
- 57 7/16-20 x 2 3/4 Hex C/S GR 8 Yellow Zinc (Qty 1)
- 59 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 82 3/8 x 1 1/2 Bolt (Qty 4)
- 84 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 94 3/8 USS Flat Washer Zinc (Qty 1)
- 98 1.140x1.750x .132 Flat Washer (Qty 1)
- 100 1/4 USS Flat Washer Zinc (Qty 1)
- 152 4 3/4 Motor Pulley (Qty 1)
- 160 2019 & up Rogue Pump Belt 68" (Qty 1)
- 162 1/4 X 2 Square Key Stock (Qty 1)
- 176 Kohler Oil Drain Hose (Qty 1)
- 187 PTO Engager Holder-Clutch--Plated (Qty 1)
- 190 24 Red Battery Cable (Qty 1)
- 204 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 205 Clutch Pigtail (Qty 1)
- 206 OBSOLETE USE 070-5375-00 (Qty 1)
- 208 Diesel Hydraulic Hose Clamp (Qty 1)
- 219 Rebel, Rogue Ground Wire (Qty 1)
- 210 OBSOLETE use 086-9006-21 (Qty 1)
-
11#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
14#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
22#013-8240-00
M8 Nut fits the 015-9990-00/015-9991-00
Qty Used: 4Regular price $6.69 USDRegular priceUnit price per
-
37#015-1012-00
2019 Rogue Kohler 824 EFI Muffler
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
44#015-8240-00
2019 Kohler 33HP EFI 824cc ECV 880
Qty Used: 1Regular price $2,499.99 USDRegular priceUnit price per
-
44.2#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
44.3#063-5400-00
Oil Filter - 27 & 30 Kohler
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
44.4#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
44.5#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
44.6#063-5001-00
25/26 HP Koh Fuel Filter ZT/MZ
Qty Used: 1Regular price $17.99 USDRegular priceUnit price per
-
45#015-9500-00
Exhaust Gasket for 824 EFI
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
49#018-0025-00
M6-1.0x12mm Bolt 8.8
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
57#018-0074-00
7/16-20 x 2 3/4 Hex C/S GR 8 Yellow Zinc
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
59#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
82#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
84#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
94#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
98#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
100#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
152#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
160#041-8051-00
2019 & up Rogue Pump Belt 68"
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
162#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
176#051-5401-00
Kohler Oil Drain Hose
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
187#057-5906-00
PTO Engager Holder-Clutch--Plated
Qty Used: 1Regular price $19.32 USDRegular priceUnit price per
-
190#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
-
205#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
206#070-5372-19
OBSOLETE USE 070-5375-00
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
208#072-5000-00
Diesel Hydraulic Hose Clamp
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
219#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
210#086-9006-19
OBSOLETE use 086-9006-21
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
